SICK MLG-2 Pro

6
Beam numbering for “Cross beam measuring”
7
Crossing beams, displayed as a virtual beam
Example with “Cross beam measuring”
When the “Cross beam switching” function is used, a light grid with a beam separation
of 20 mm can detect a wide object with a thickness of 1 mm, but cannot output a
measured value for the height, for example. With the “Cross beam measuring” function,
it is also possible to output a measured value for the height.
Configuring the “Cross beam switching” function using SOPAS ET
b
In SOPAS ET, click on the Performance options expandable menu in the right-hand
window.
b
In the Operating reserve area, enable the Activate cross beam mode function.

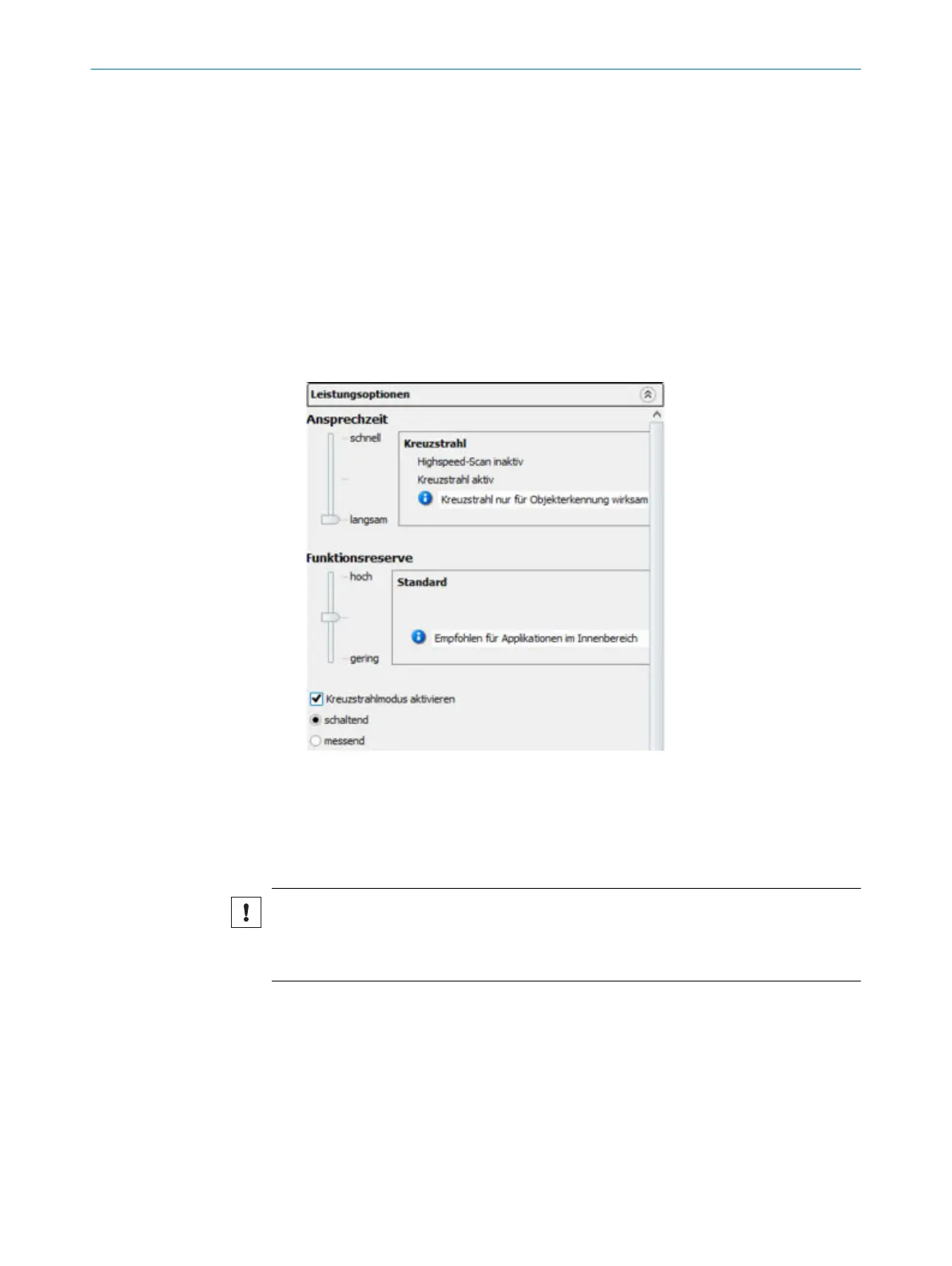

Figure 115: SOAPS ET – Activating cross beam switching mode
b
Select the switching function.
✓
The “Cross beam switching” function is now activated.
Configuring the “Cross beam measuring” function using SOPAS ET
NOTICE
If the “Cross beam measuring” function is activated, the real and virtual beams are
renumbered. Existing configurations are not converted. Check the existing configuration
for the “Cross beam measuring” function. Adjust the configuration accordingly.
b
In SOPAS ET, click on the Performance options expandable menu in the right-hand
window.
b
In the Operating reserve area, enable the Activate cross beam mode function.
CONFIGURATION WITH SOPAS ET 7
