SICK MLG-2 Pro User Manual

MLG-2 with 2 m sensing range
0 mm
0.0 m 2.0 m 4.0 m 6.0 m 8.0 m
Z
XOperating range
Minimum distance
MLG-2 with 5 m and 8.5 m sensing range
200 mm
400 mm
600 mm
800 mm

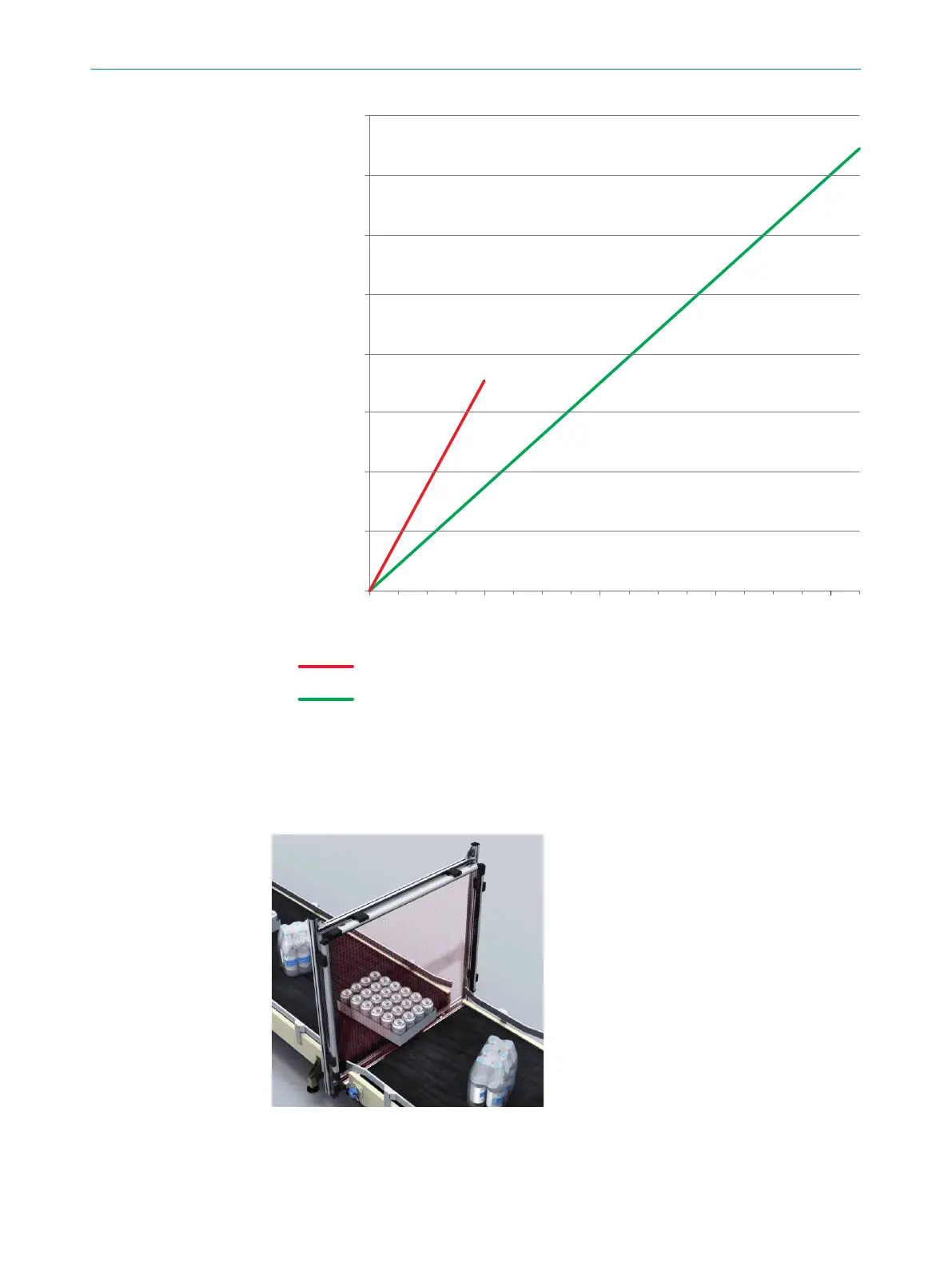

Figure 29: Graph, distances when light is in the same direction (XZ)
4.2.3 Placement of two light grids at right angles
Light grids are placed at right angles for volume detection or operator guidance, for
example.
Figure 30: Placement of two light grids at right angles
4 MOUNTING
38
O P E R A T I N G I N S T R U C T I O N S | MLG-2 Pro 8017460.ZIK1/2017-02-13 | SICK
Subject to change without notice

SICK MLG-2 Pro Specifications

General

Output current Imax.	100 mA
Housing material	Aluminum
Enclosure rating	IP65
Ambient storage temperature	-25 °C to +70 °C
Accuracy	± 5 mm
Storage Temperature	-25 °C to +70 °C
Protection Class	IP65
Light source	Infrared LED
Beam separation	30 mm
Interface	RS-485
Power Supply	24 V DC
