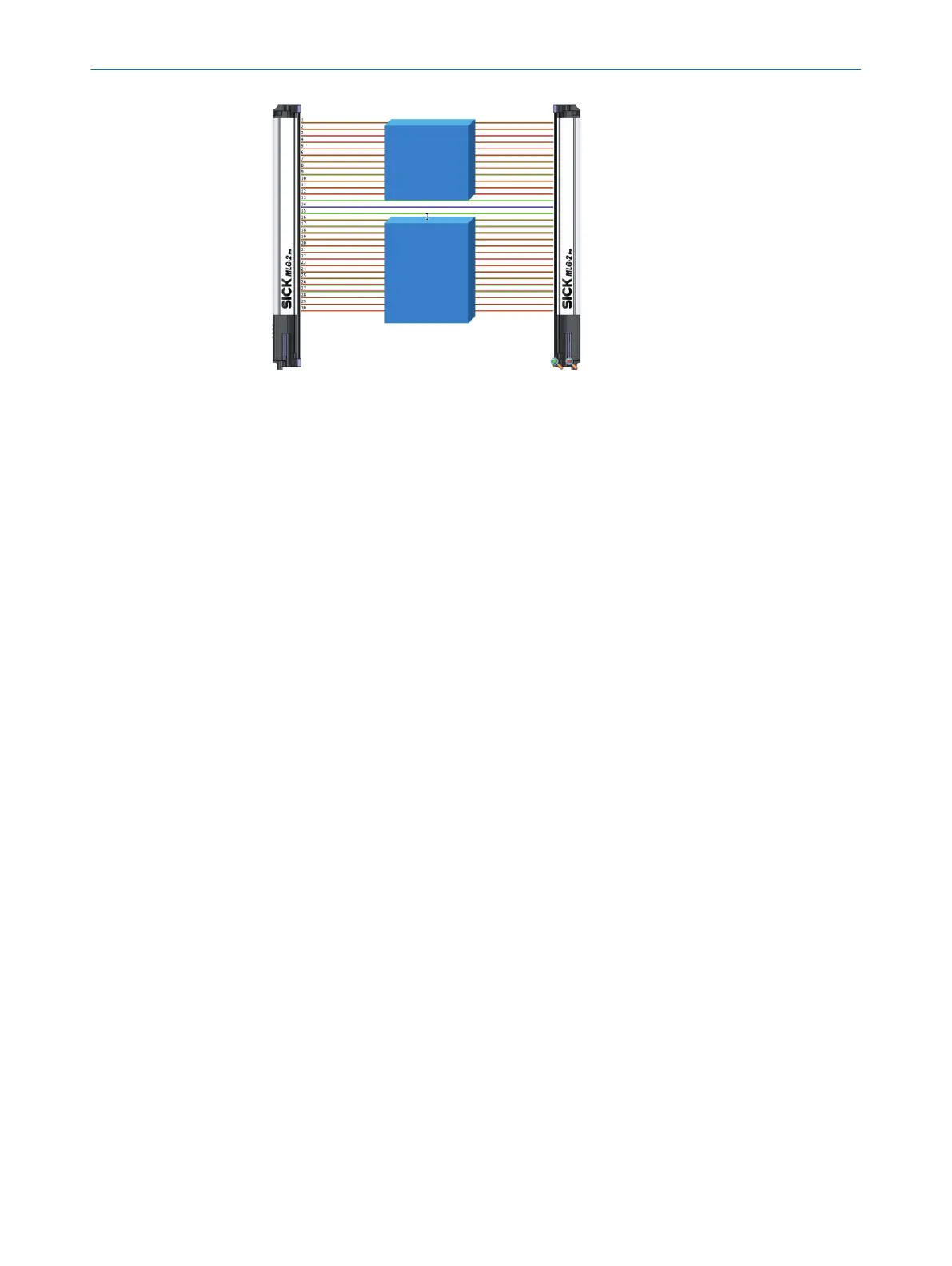

Figure 88: Setting the hole position with the mouse
Output settings
General options for switching outputs see "Advanced settings for the outputs",
page 84.
7.4.8 Diagnostics
As well as measuring functions, diagnostic functions can also be assigned to the out‐
puts. Depending on the configuration, the output will respond when certain faults occur
or when the teach-in quality or process quality fall below a configured percentage.
Diagnostic settings
•
Activate Qn in the event of the following error messages:
– Contamination
The output is activated when a contamination warning occurs.
– Electrical short-circuit
The output is activated when a short-circuit occurs in the wiring.
– Teach-in error
The output is activated when an error occurs during the teach-in process.
– Hardware error
The output is activated when an error occurs with the hardware. Possible
cause: LED defective, receiver element defective, etc.
•
Activate Qn if the teach-in quality falls below ...%
The output is activated when the teach-in quality falls below a certain percentage
(see "Teach-in", page 17).
You can define the percentage in increments of 1%.
•
Activate Qn if the process quality falls below ...%
The output is activated when the process quality falls below a certain percentage
(see "Teach-in", page 17).
You can define the percentage in increments of 1%.
Output settings
General options for switching outputs see "Advanced settings for the outputs",
page 84.
7.5 Measuring and diagnostic functions for analog outputs
A measuring or diagnostic function can be configured for each analog output on the
MLG2.
