Figure 9: Cross-beam function
3.5.3 Scan time with high-speed scan on the MLG-2
With high-speed scan, several beams are active in each cycle. This reduces the scan
time by a variable factor.

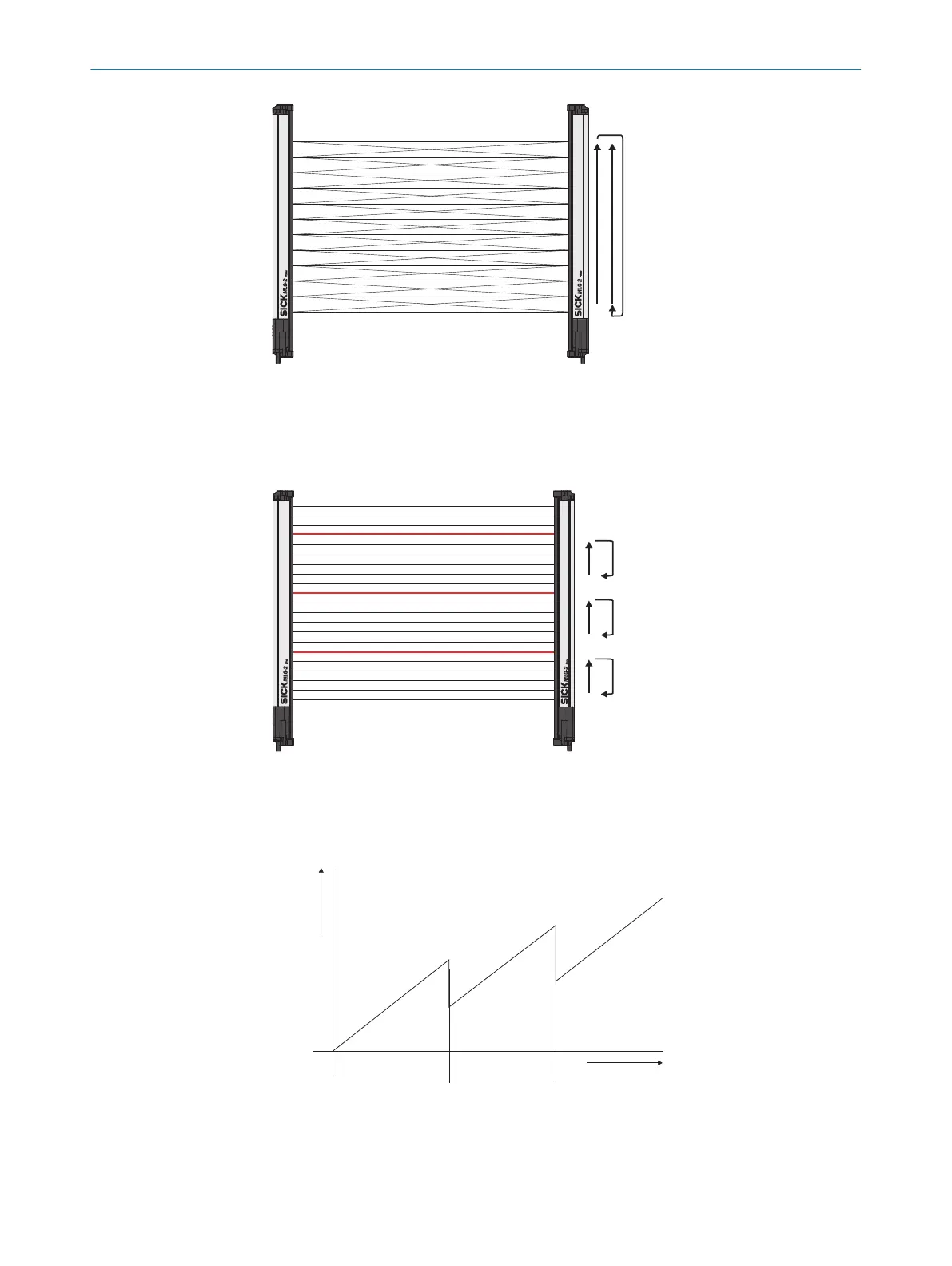

Figure 10: High-speed scan
The scan time is also dependent on the number of beams. Beyond a certain number of
beams, the scan time is reduced because it is possible to use the high-speed scan.
Number of beams
Scan time
1 2
Figure 11: Scan time in relation to the number of beams when using the high-speed scan
1
High-speed scan with 2 beams active simultaneously
PRODUCT DESCRIPTION 3
8017460.ZIK1/2017-02-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 Pro
