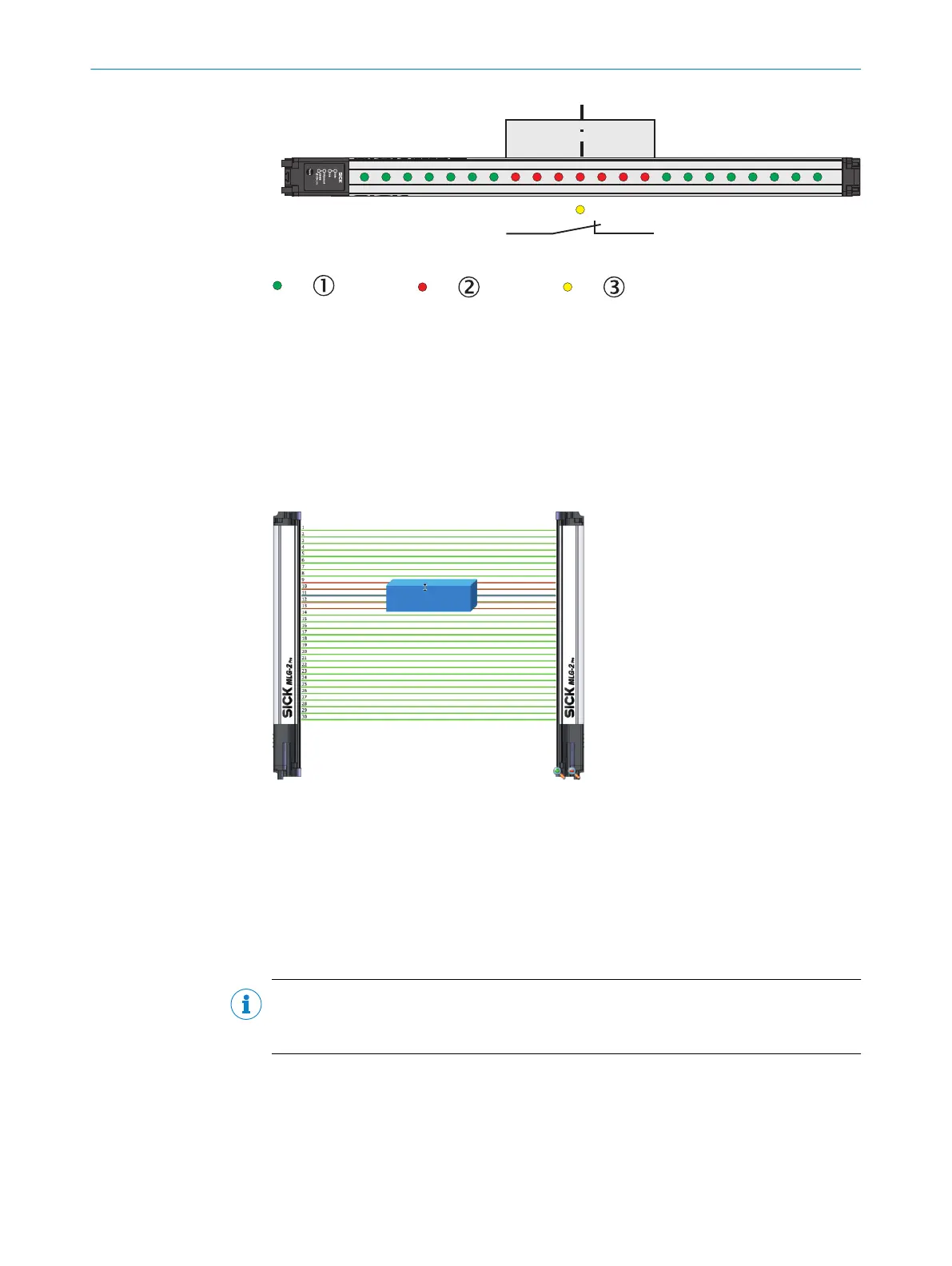

Figure 83: Classification of the object position – equal to object center
1
Made beam
2
Blocked beam
3
Configured beam
General options for switching outputs see "Advanced settings for the outputs",
page 84.
The object position that has been set is shown in the Simulation area. It can be changed
using the mouse.
Figure 84: Setting the object position with the mouse
Zone selection
For additional information, see "“Zone measuring” function", page 85 .
7.4.7 Classification of a hole position
A switching output switches when the center of a hole is located on the beam config‐
ured as the hole position.
NOTE
If there are several holes in the detection area, the central beam of the largest hole
determines the hole position.
A particular beam is configured for the classification of a hole position in the settings.
b
In addition, select one of the following settings:
•
The hole center is greater than or equal to the position of beam number n.
The number of the beam located in the center of the hole is greater than or equal
to the number of the configured beam.
7 CONFIGURATION WITH SOPAS ET
78
O P E R A T I N G I N S T R U C T I O N S | MLG-2 Pro 8017460.ZIK1/2017-02-13 | SICK
Subject to change without notice
