Beam status
The status of all MLG-2 beams is output serially, starting with beam number 1.
– 0 = Beam made
– 1 = Beam blocked
•
The individual beam functions
see "Beam functions", page 107
•
Run-length code
see "Output of measurement data (raw data)", page 28
Only the changes between blocked and made beams are issued.
•
switching outputs
•
Process quality
•
Teach-in quality
•
Counter

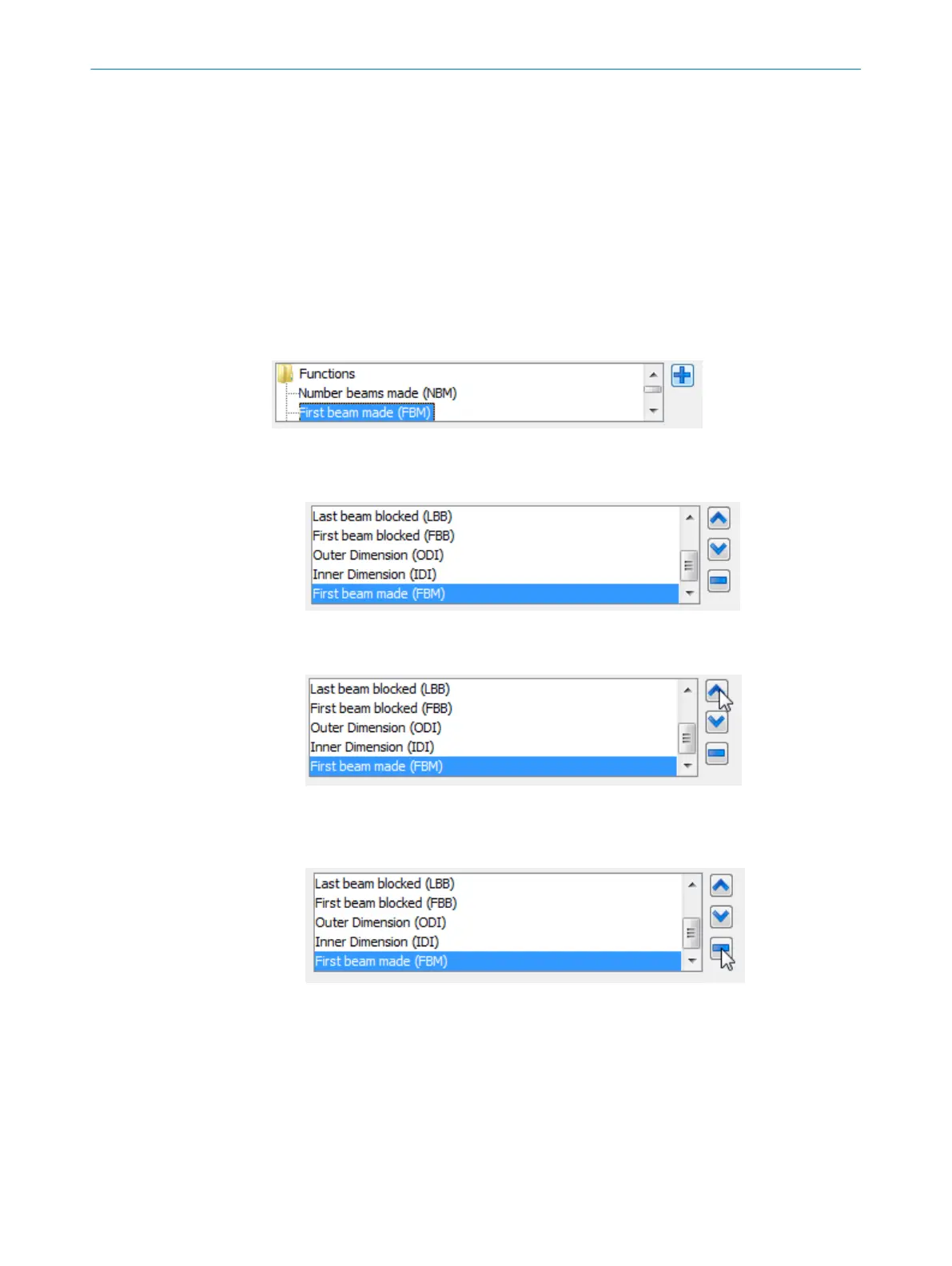

Figure 101: Available functions
b
Select a function in the Available functions window and click on the + button.
Figure 102: Selected functions
✓
The function is transferred to the Selected functions window.
Figure 103: Sorting selected functions
b
Select a function in the Selected functions window and click either the < or > button.
✓
The function is moved up or down.
Figure 104: Removing selected functions
b
Select a function in the Selected functions window and click on the – button.
✓
The function will be removed from the Selected functions window.
CONFIGURATION WITH SOPAS ET
7
8017460.ZIK1/2017-02-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 Pro
89
