SICK MLG-2 Pro User Manual

3 Product description
3.1 Type labels of the MLG-2 Pro
The MLG-2 Pro senders and receivers each have a type label.
2
5
1
34
1110
4
7
6
5
9
3
2
1
8

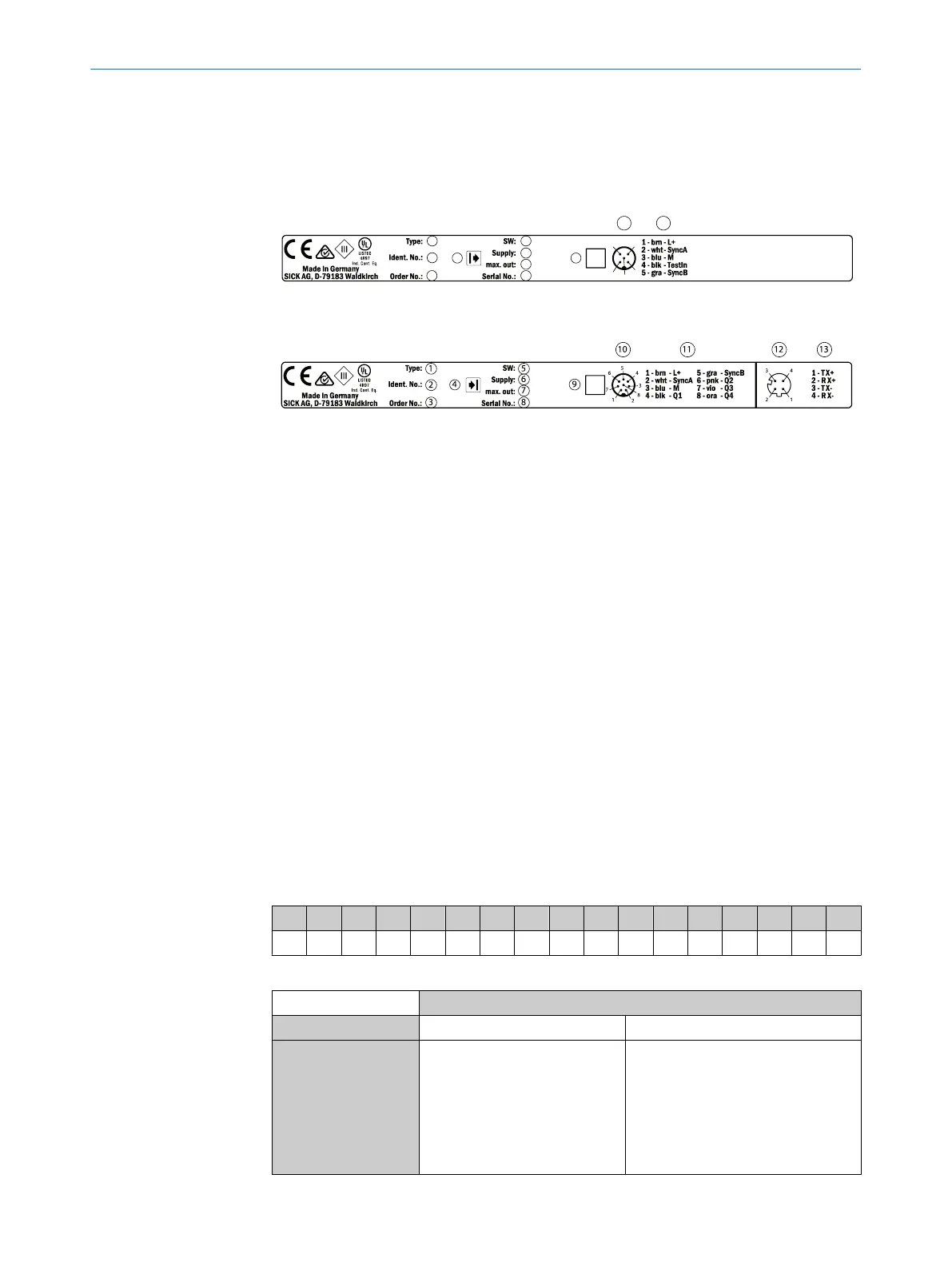

Figure 1: Type label of sender
Figure 2: Type label of receiver
1
Type code
2
Part number for the individual sender or receiver
3
Part number of the entire MLG-2
4
Symbol for sender or receiver
5
Firmware version
6
Required power supply
7
Maximum output current
8
Serial number
9
2D matrix code, contains the order numbers of the sender/receiver, the order number of
the MLG-2, and the serial number
ß
Diagram of the M12/5-pin or M12/8-pin male connector
à
Pin assignment of the M12/5-pin or M12/8-pin male connector
á
Diagram of the M12/4-pin female connector
â
Pin assignment of the M12/4-pin female connector
3.2 MLG-2 Pro type code
Example
MLG-2 with 5 mm beam separation, type Pro, detection height 145 mm, 1 input, 1
switching output and 2 analog outputs, no options, 5 m sensing range and pre-configu‐
ration for NBB,LBB,object detection and teach-in.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
M L G 0 5 A - 0 1 4 5 B 1 0 5 0 1
Table 2: Example of an MLG-2 Pro type code
Position Meaning
1 … 3 Product family MLG
4 and 5 Beam separation 02 = 2.5 mm
05 = 5 mm
10 = 10 mm
20 = 20 mm
25 = 25 mm
30 = 30 mm
50 = 50 mm
Table 3: Meaning of the positions in the type code
PRODUCT DESCRIPTION 3
8017460.ZIK1/2017-02-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 Pro
11
Subject to change without notice
