5.1.1 T-distributor for MLG2 Pro connection
1 2
4
5
6
3

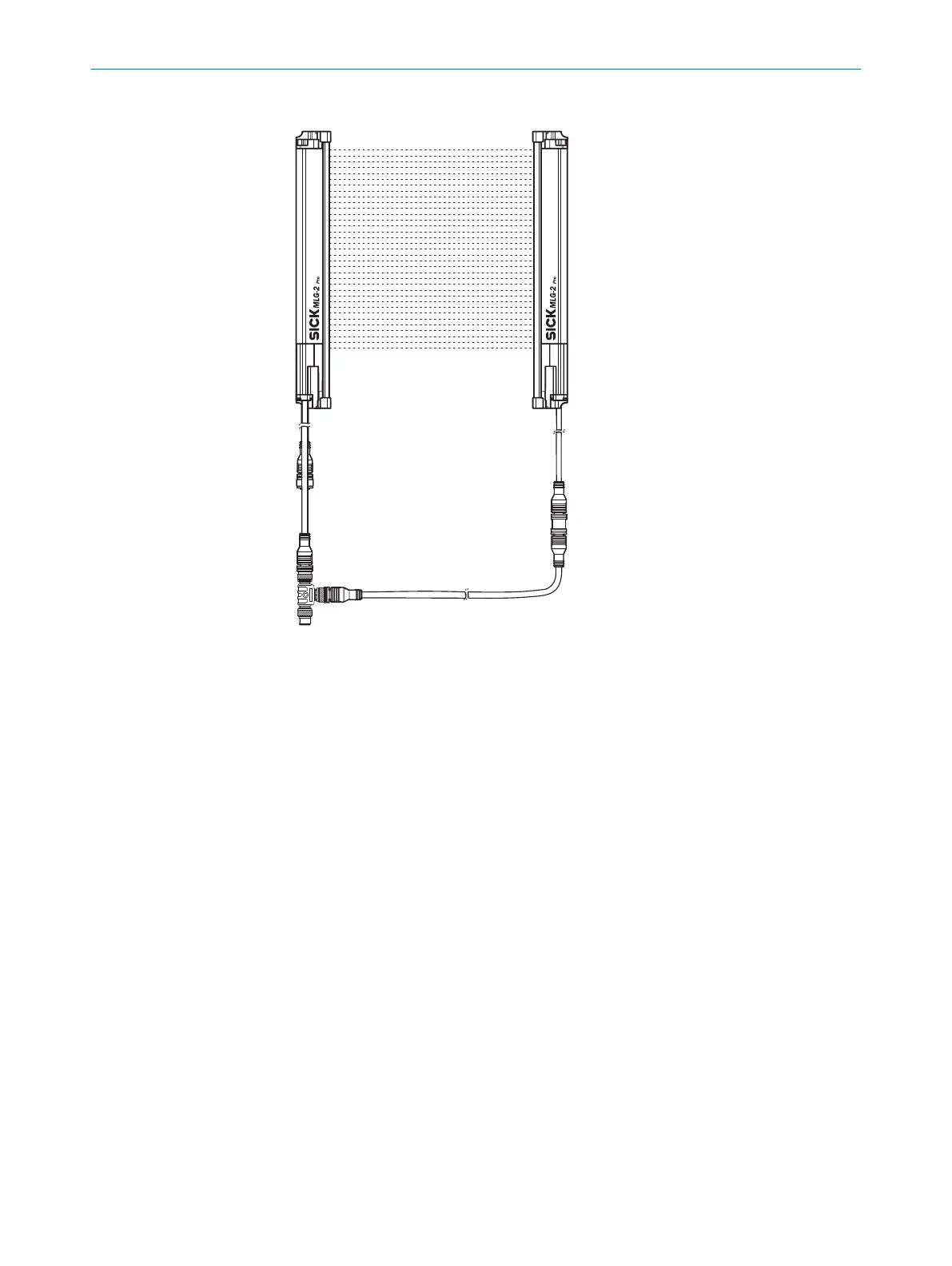

Figure 36: T-distributor connection
1
MLG-2 receiver
2
MLG-2 sender
3
Connection cable
4
MLG-2 connection
5
T-distributor
6
Connection to PLC, IO-Linkfield module in place of a first-generation MLG
For the MLG-2 Pro, there are three T-distributors available which are used to connect
the sender and receiver to one another, as well as provide connection facilities for the
following options:
•
Connection to a PLC, for example
•
Connection to an IO-Linkfield module
•
Connection in place of a first-generation MLG
5
ELECTRICAL INSTALLATION
