7.2.2 Basic functions and status of the output
Basic functions
Under Basic functions, you will find the following information:
•
The current values for the beam functions (see "Beam functions", page 107)
•
The current values for the run-length code

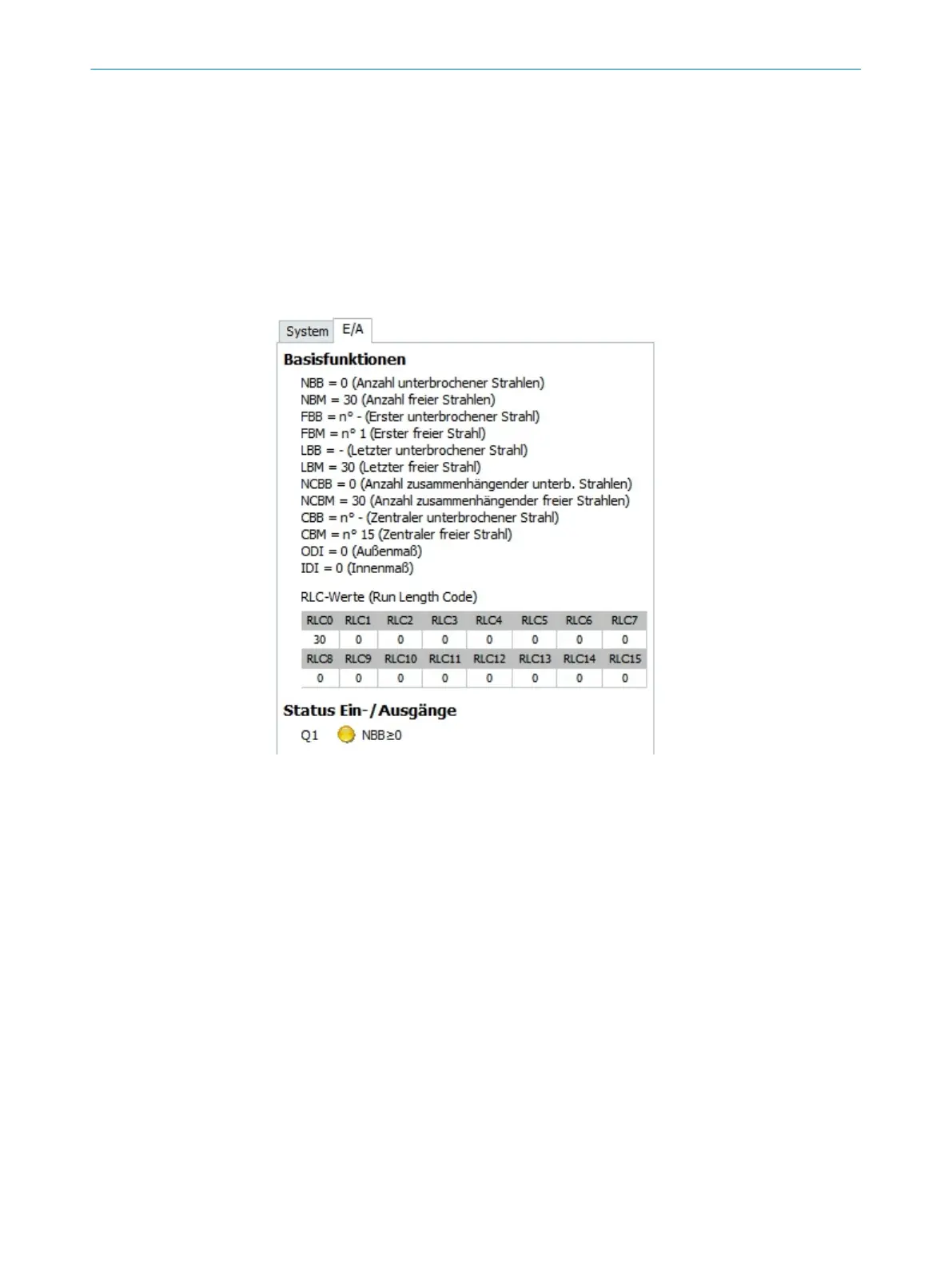

Figure 50: Basic functions and status of the output
Status inputs/outputs
Under Status inputs/outputs, SOPAS ET shows the status of the switching output.
Next to the indicator, you will find the function configured for the output.
