SICK MLG-2 Pro - SOPAS ET Beam Window - Combining Beams into Zones

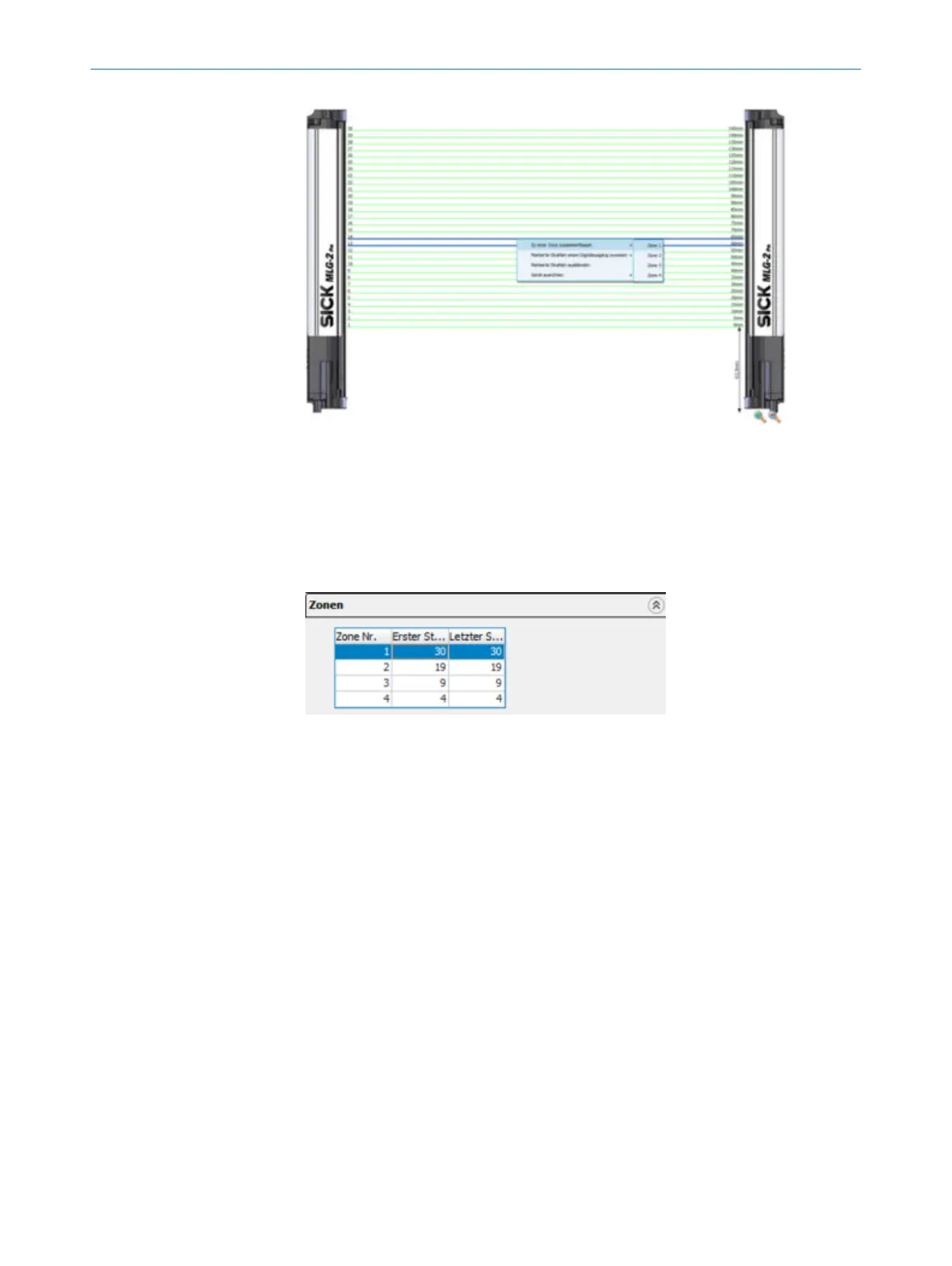

Figure 98: SOPAS ET beam window – Combining beams into zones
✓
The configured zones are indicated in the Zones expandable menu.
Configuring Zones in the expandable menu
b
Click the Zones expandable menu.
b
In the Zone selection area, define the “Zone no.”, “First beam” and “Last beam” for
the zone.
b
Activate the zone you wish to assign to an output.
Configuring an output
b
Click the Digital output 1 expandable menu, for example.
