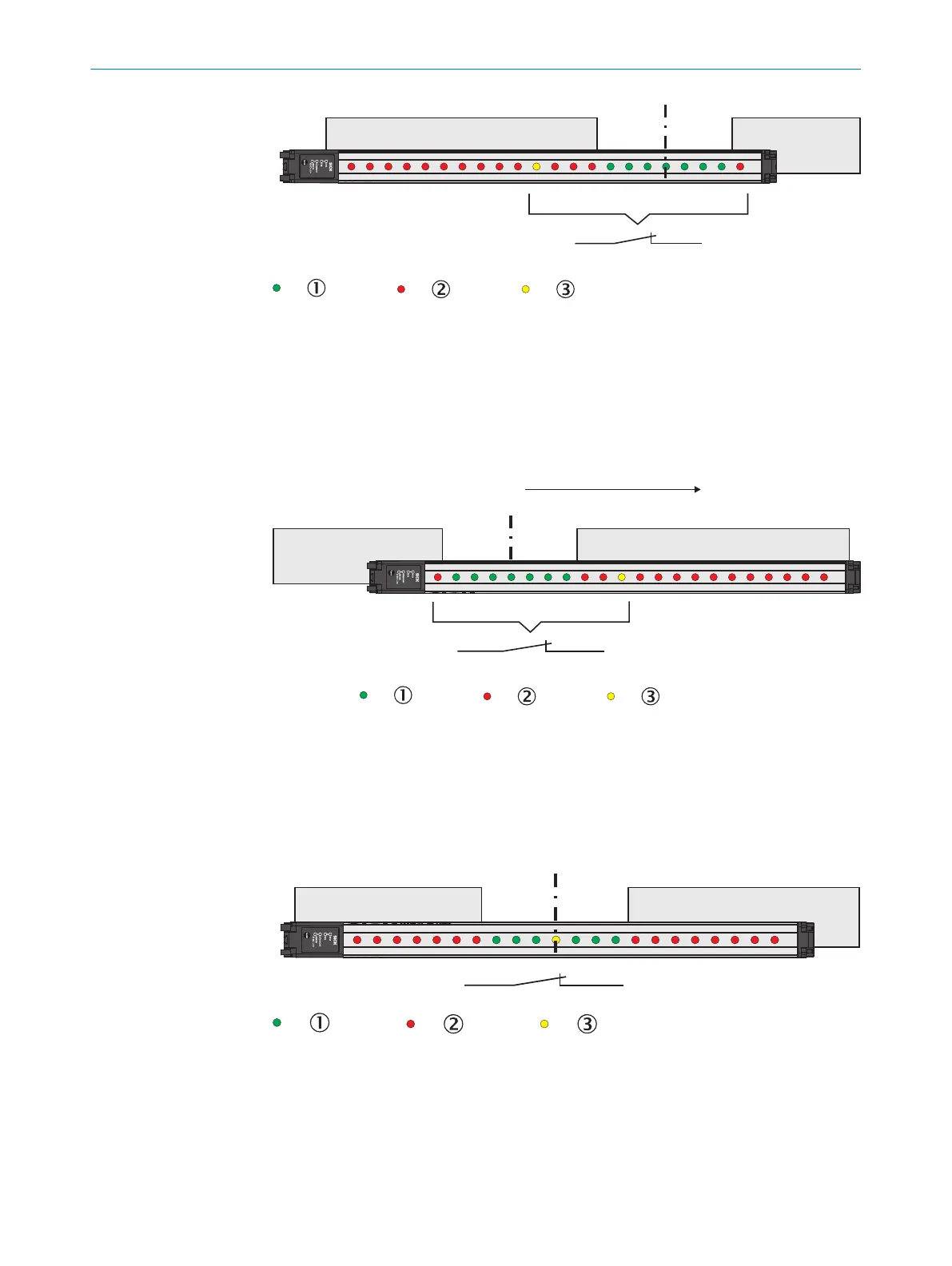

Figure 85: Classification of the hole position – greater than or equal to hole center
1
Made beam
2
Blocked beam
3
Configured beam
•
The hole center is less than or equal to the position of beam number n.
The number of the beam located in the center of the hole is less than or equal to
the number of the configured beam.
Figure 86: Classification of the hole position – less than or equal to hole center
1
Made beam
2
Blocked beam
3
Configured beam
•
The hole center is equal to the position of beam number n.
The center of the hole is located exactly on the configured beam.
Figure 87: Classification of the hole position – equal to hole center
1
Made beam
2
Blocked beam
3
Configured beam
The hole position that has been set is shown in the Simulation area. It can be changed
using the mouse.
