SICK MLG-2 Pro

6 Commissioning
6.1 Mechanical alignment of sender and receiver
After mounting and electrical installation, the sender and receiver must be aligned with
each other. No objects should be located between the sender and the receiver. The
light path must be clear.
Alignment with the QuickFix bracket
You have the following adjustment options with the QuickFix bracket:
•
Adjust vertically (H)

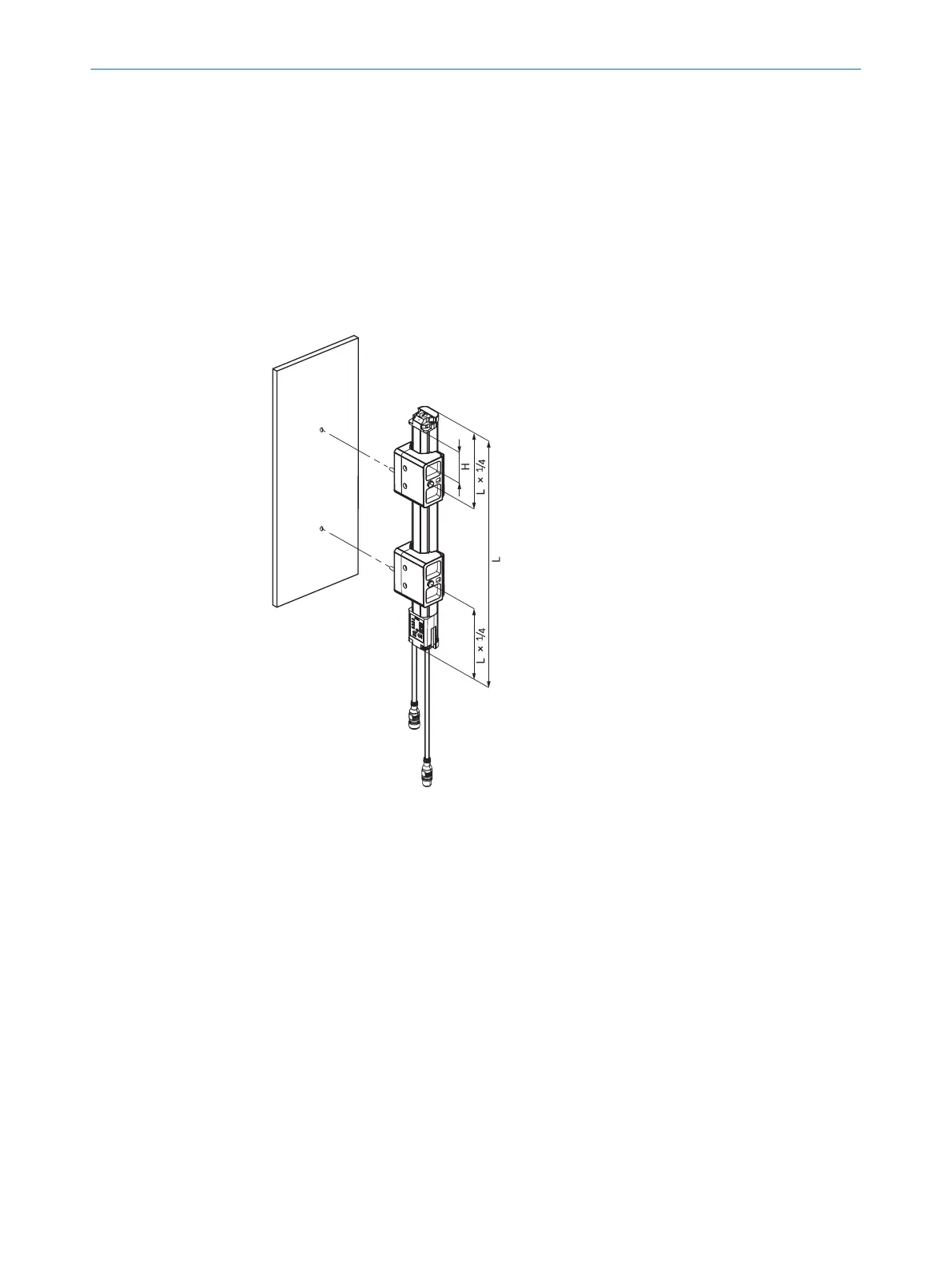

Figure 40: Alignment with the QuickFix bracket
Alignment with the FlexFix bracket
You have the following adjustment options with the FlexFix bracket:
•
Adjust vertically (H)
•
Rotate (± 15°)
6
COMMISSIONING
50
