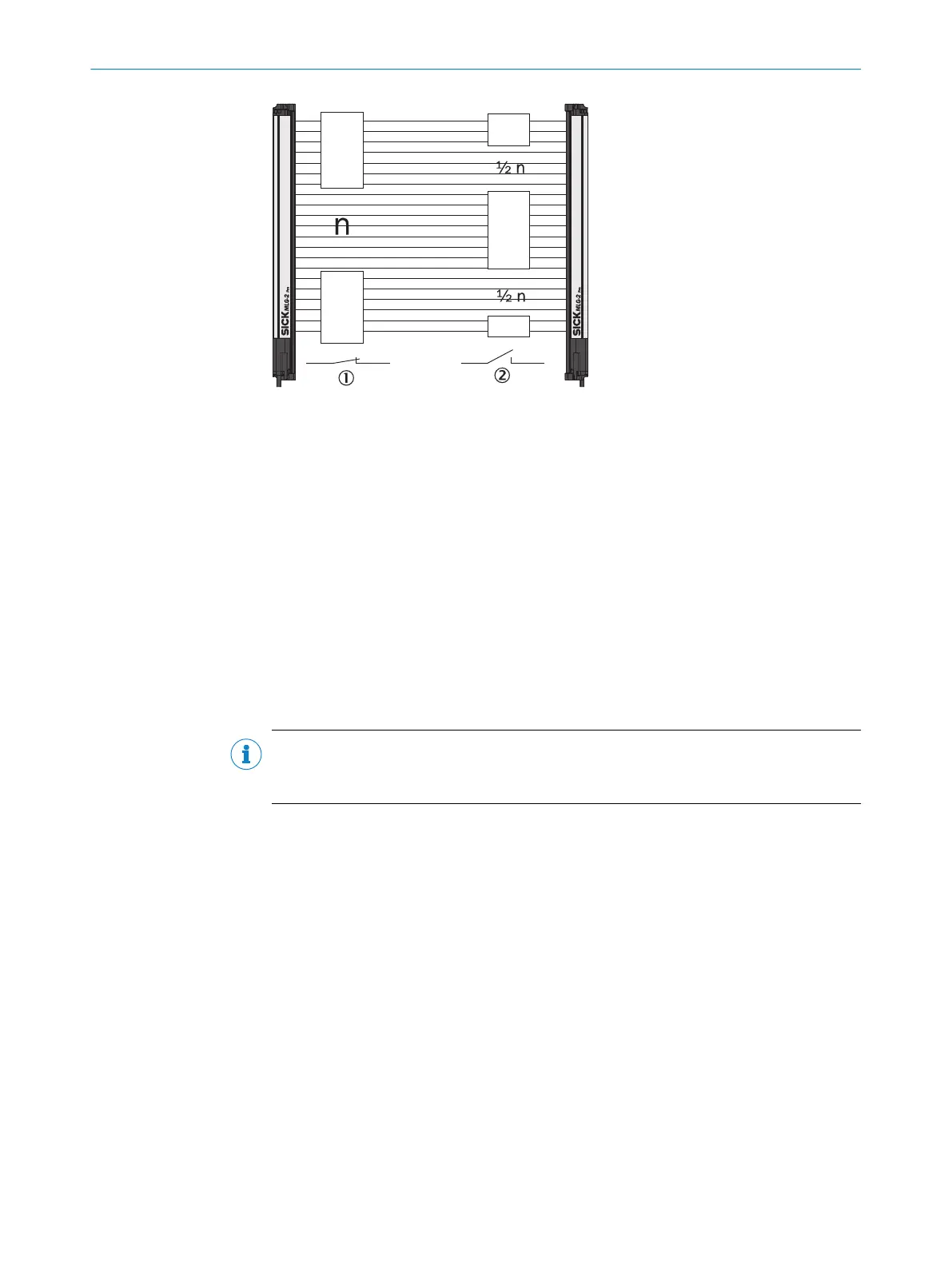

Figure 77: Detection of consecutive beams
1
Criterion met
2
Criterion not met
The output becomes active when the beams are made through a single hole. If this
option is not activated, the number of made beams can also be made up of several
gaps.
Output settings
General options for switching outputs see "Advanced settings for the outputs",
page 84.
7.4.5 Outside/inside dimension
A switching output switches when an object with a particular outside or inside dimen‐
sion is detected.
NOTE
If there are several objects in the detection area, the largest object determines the
measured value.
The following settings are possible for measuring the outside or inside dimension:
b
Configure whether you want to measure the outside dimension or inside dimension.
CONFIGURATION WITH SOPAS ET 7
8017460.ZIK1/2017-02-13 | SICK O P E R A T I N G I N S T R U C T I O N S | MLG-2 Pro
75
