SICK S3000 PROFINET IO User Manual

1
2
5
1
0
20
50
100
200
500
0,1 0,2 0,5 1 2 5
10 20 50
1
2
3
4
5
6
R [%]
D [m]

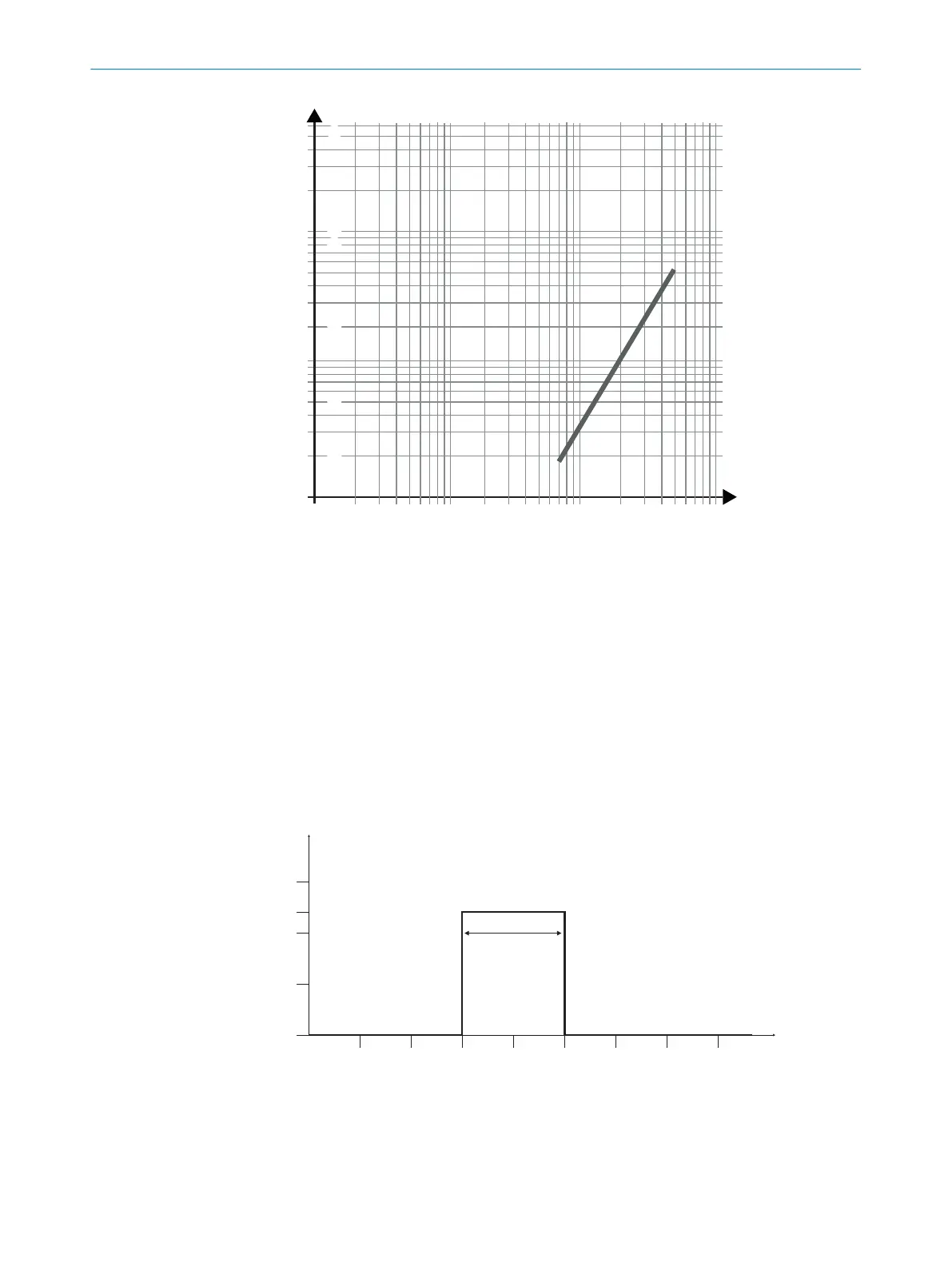

Figure 75: Diagram scanning range with Long Range sensor head
R Necessary minimum radiance factor in %
D Scanning range in m
1
Black shoe leather
2
Matt black paint
3
Gray cardboard
4
Writing paper
5
White plaster
6
Reflectors > 2,000%, reflective tapes > 300%
Reset pulse
If t
he reset pulse on the “Reset” input is, for example, provided by an (F)PLC, then the
pulse must be of a specific length.
≥ 500 ms
0
1
0
20
24
U [V]
t [ms]
Figure 76: Reset pulse requirements
Mak
e sure that pulses do not have a frequency of 1 Hz or 4 Hz, as otherwise there may
be overlaps with the output signals for “Front screen contaminated” or “System error”.
This overlap will result in an error on the safety laser scanner.
TECHNICAL DATA 12
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
119
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
