Table 13: Number of field sets that can be configured per use
Angular resolution Advanced Professional
Dual field mode/dual protective field
mode
Configured angular resolution 0.5° 4 8
Configured angular resolution 0.25° 4 8
Triple field mode
Configured angular resolution 0.5° 4 8
Configured angular resolution 0.25° 4 8
7.10.1 Configuring the protective field and warning field
The field set, which comprises a protective field 1 and t
wo warning fields 2 is config‐
ured using the CDS. This involves configuring the shape and size of the protective field
and warning field. Any field shape can be created.
The area to be monitored is scanned radially by the device. The device cannot see
through objects, however. The surface behind objects which are located in the area to
be monitored (support columns, separator grids, etc.) can therefore not be monitored.

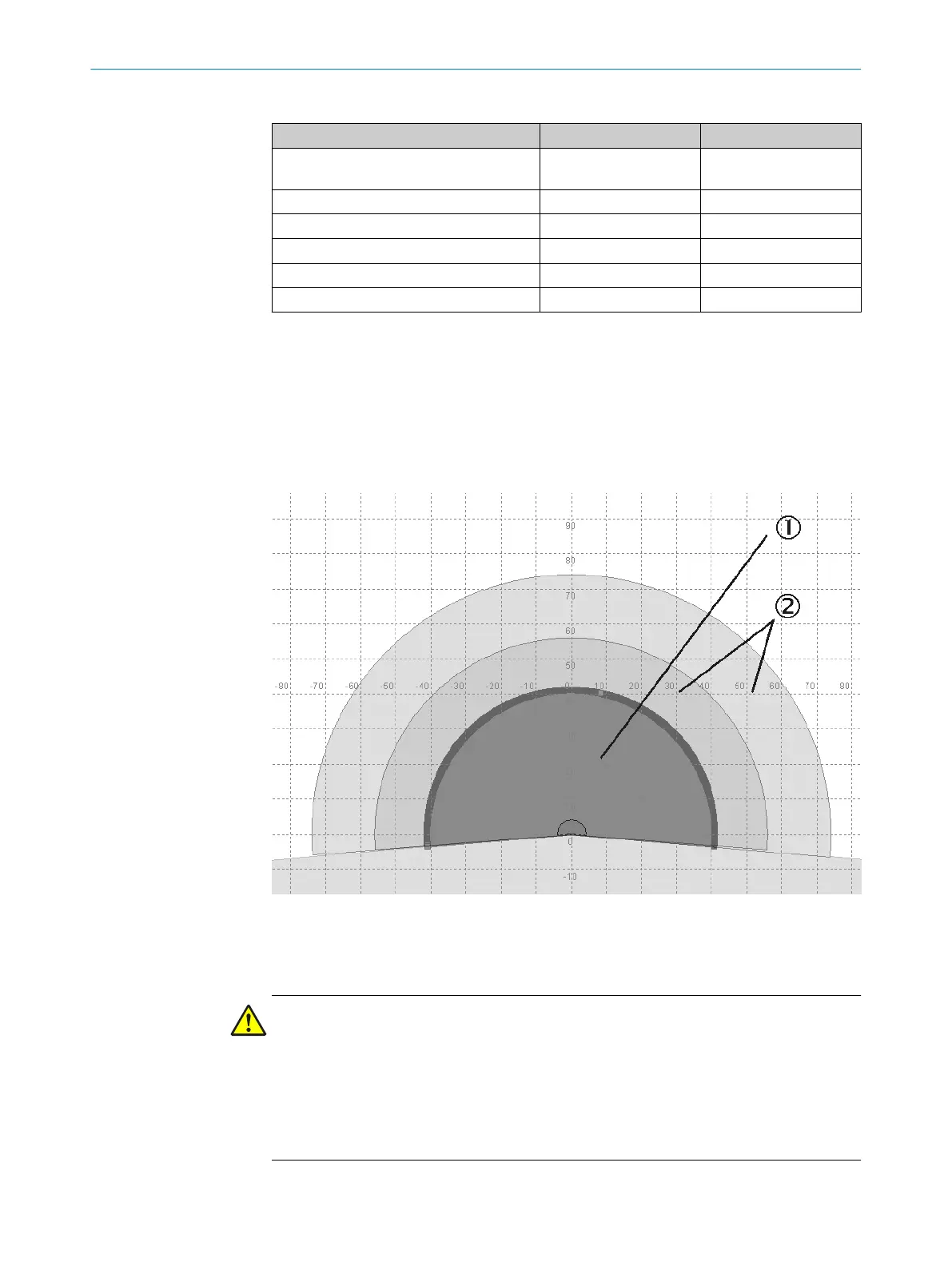

Figure 61: Creating a field set in the CDS
Pr
otective fields and warning fields can cover an angle of up to 190° and have different
radial scanning ranges depending on the sensor head and the resolution configured.
WARNING
P
ersons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
Before commissioning the machine or vehicle, check the configuration of the protective
fields, see "Commissioning", page 88, see "Checklist for initial commissioning and
commissioning", page 133.
b
Check the configured protective fields.
CONFIGURATION 7
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
79
Subject to change without notice
