The response time of the safety laser scanner to input information comprises:
•
S3000 ba
sic response time
•
+ configured input delay
•
+ response time of the I/O module (2 × 8 ms = 16 ms)
•
+ response time of the FPLC
Table 33: Calculating the response time to input information, example
60 ms basic response time (resolution = 0.5°)
+ 30 ms (configured input delay)
+ 16 ms
= 106 ms (+ response time of the FPLC)
Further topics
•
"Ba
sic response time", page 76
12.8 Dimensional drawings
Safety laser scanner
147
136,8
120
31,7
159
4 x M8 x 9
4 x M6 x 8
155
77
63
13,5
53,2
78,5
202
224
1

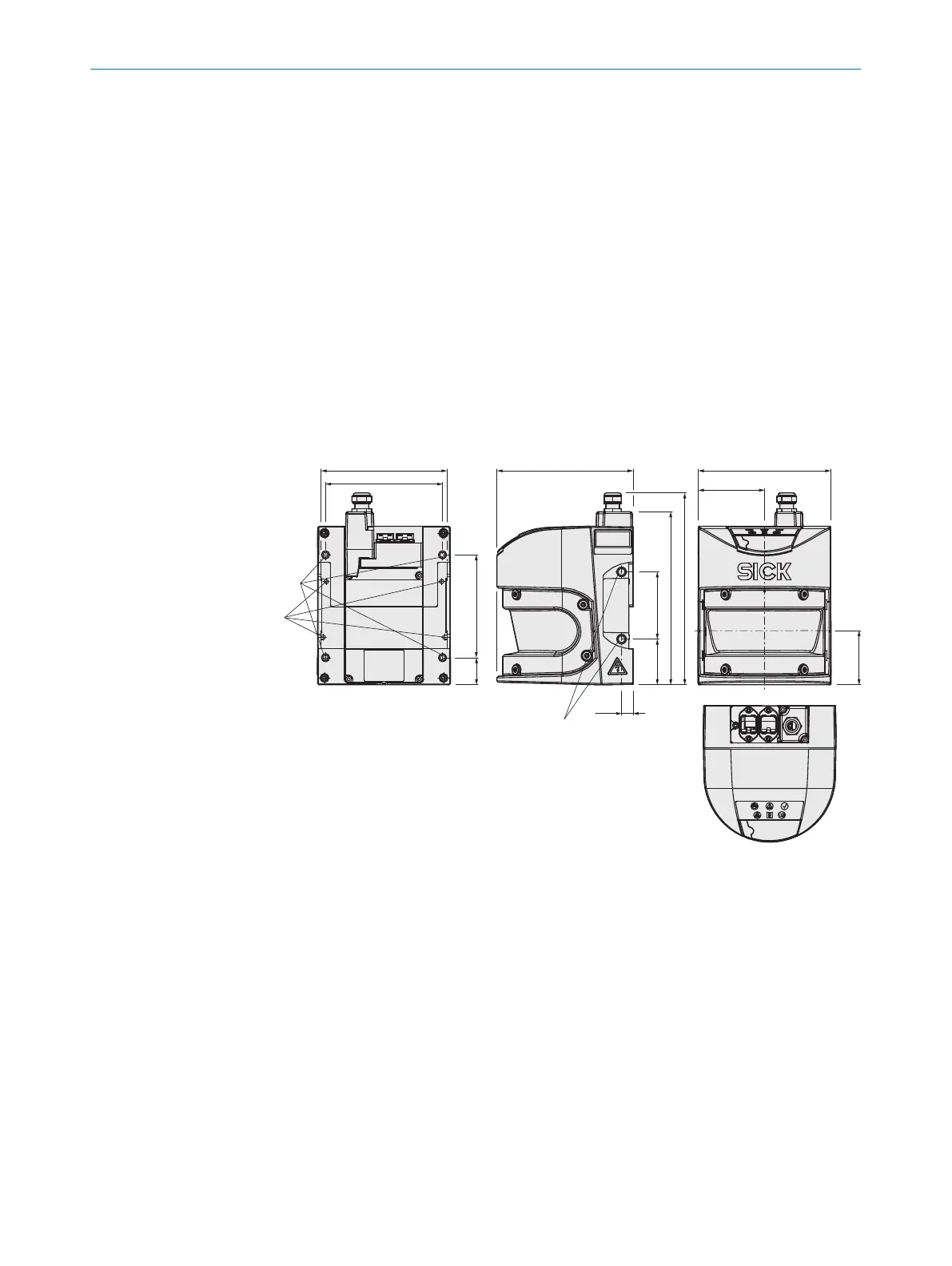

Figure 77: Dimensional drawing safety laser scanner (mm)
1
4 reference points for mounting
TECHNICAL DATA 12
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
121
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
