SICK S3000 PROFINET IO User Manual

3 Product description
3.1 Construction and function
The safety laser scanner is an optical sensor that scans its environment in two dimen‐
sions w
ith infrared laser beams. It is used to monitor hazardous areas on machines or
vehicles.
1
2
1
2
Δt
t

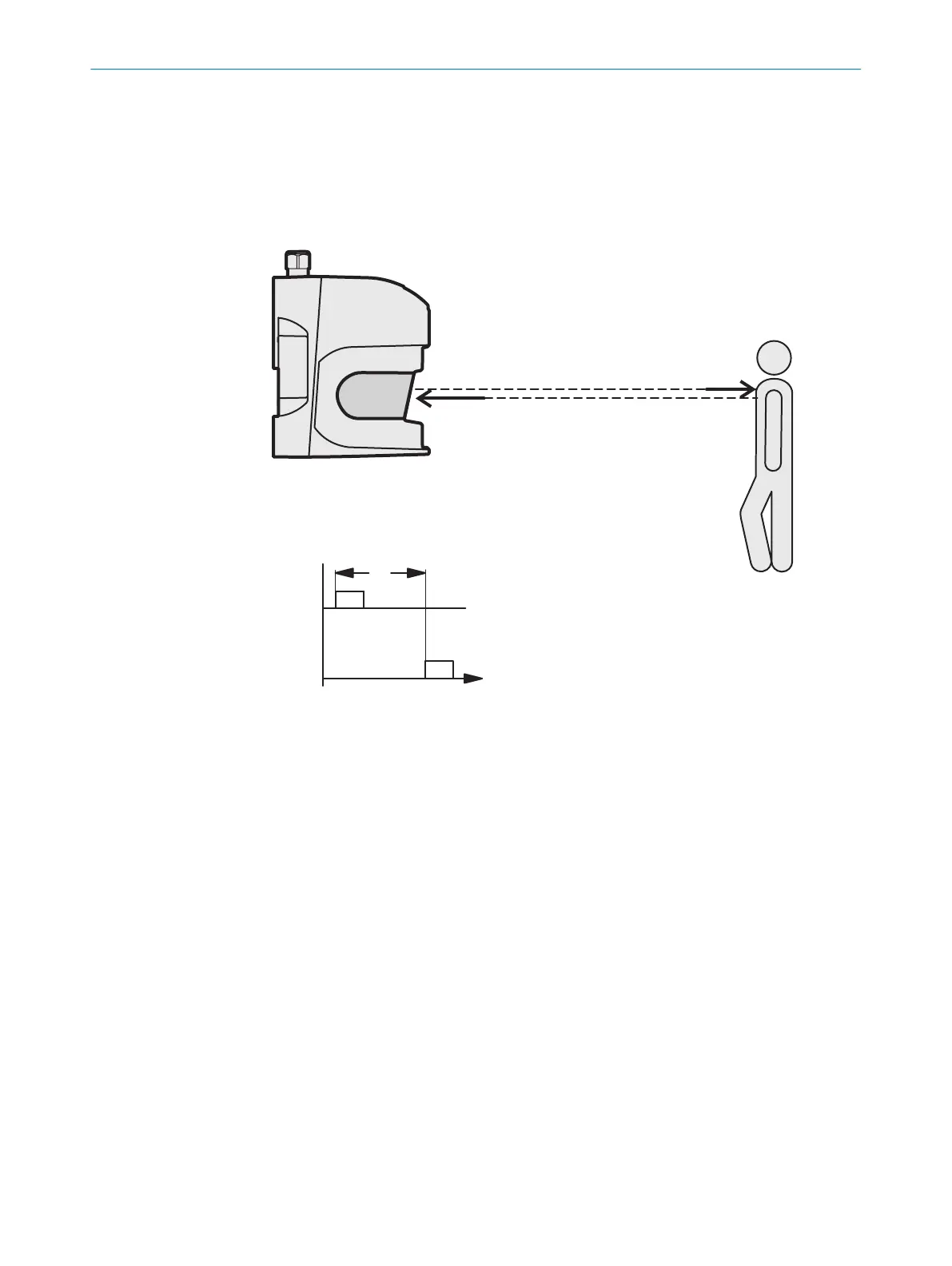

Figure 2: Principle of operation of the safety laser scanner time-of-flight measurement
1
Transmitted light pulse
2
Reflected light pulse
The device operates according to the time-of-flight measurement principle. The device
emit
s very short light pulses (transmitted light pulse). while an “electronic stopwatch”
runs simultaneously. If the light strikes an object, the object reflects the light which is
then received by the safety laser scanner (received light pulse). The device calculates
the distance to the object based on the time interval between the moment of transmis‐
sion and moment of receipt (∆t).
PRODUCT DESCRIPTION 3
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
13
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
