SICK S3000 PROFINET IO User Manual

t
Uv
1
t
U
Δt
2
3 5 4

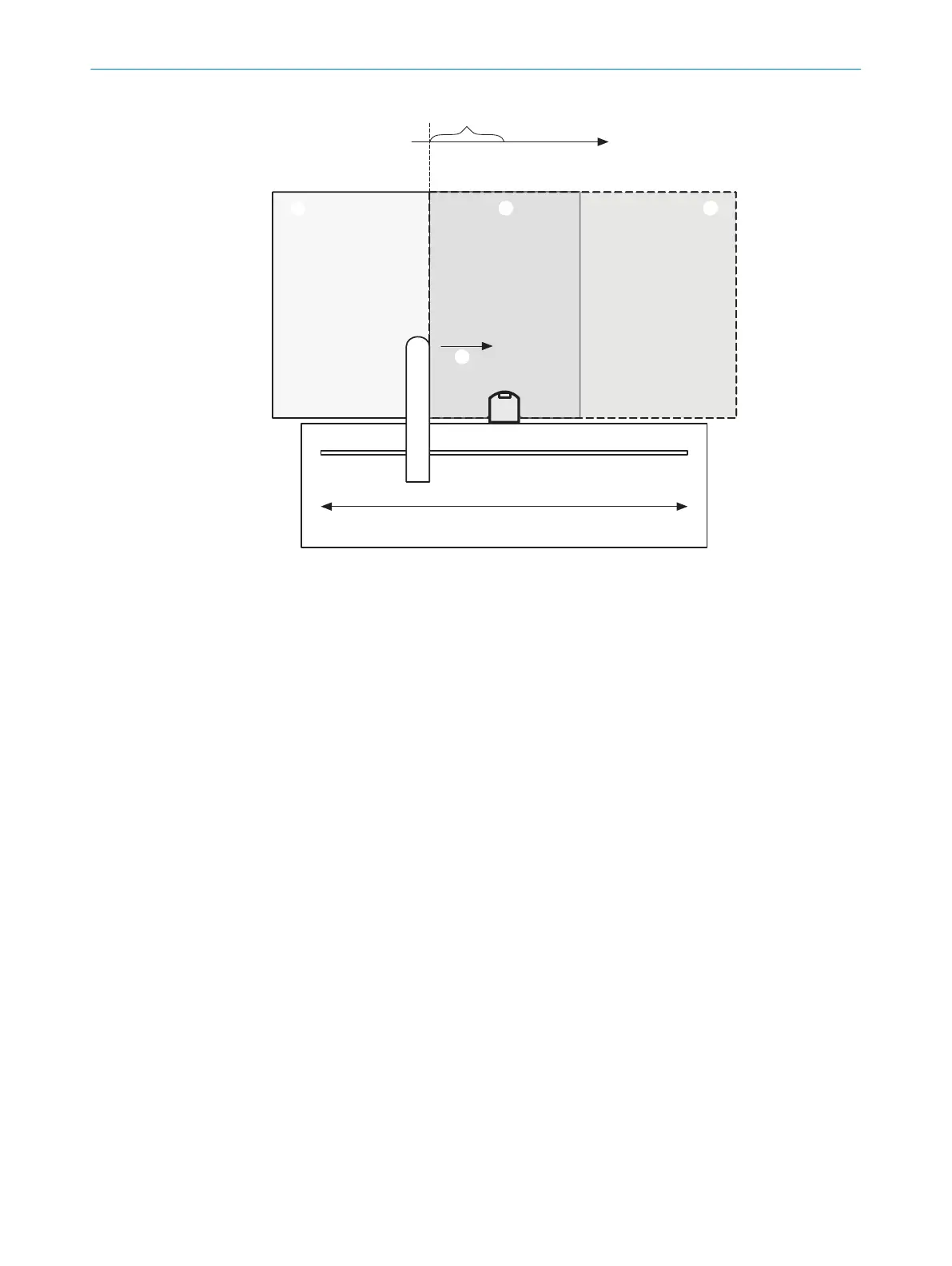

Figure 28: Advancing the switching time (example)
T
he gantry robot 1 moves to the right 2. The dangerous movement is being monitored
on the left-hand side by one of the monitoring cases 3. Due to the required advance‐
ment of the switching time, it is necessary to already switch the monitoring case when
the gantry robot arrives at the point t
Uv
to ensure that the right monitoring case 4 is
active at time t
U
.
The same applies for a movement to the left, i.e., for the switchover to monitoring case
3.
The protective fields of the monitoring cases must overlap 5 to ensure the protective
function is guaranteed at all times.
Time of switching
C
alculating the time of switching
•
The time of switching is calculated using the following equation:
t
UFVz
= t
EVz
where
•
t
UFVz
= t
ime by which the switching is advanced
•
t
EVz
= input delay for the control inputs
Complementary information
•
In t
he phases before and after switching, only the minimum distances calculated
for the individual monitoring cases apply.
•
The preceding considerations are provided exclusively for the purposes of select‐
ing the optimum switching time.
PROJECT PLANNING 4
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
35
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
