Hazardous point protection
In ha
zardous point protection, the approach is detected very close to the hazardous
point. The advantage of this type of protective device is that it is possible to have a
short minimum distance and the operator can work more ergonomically.

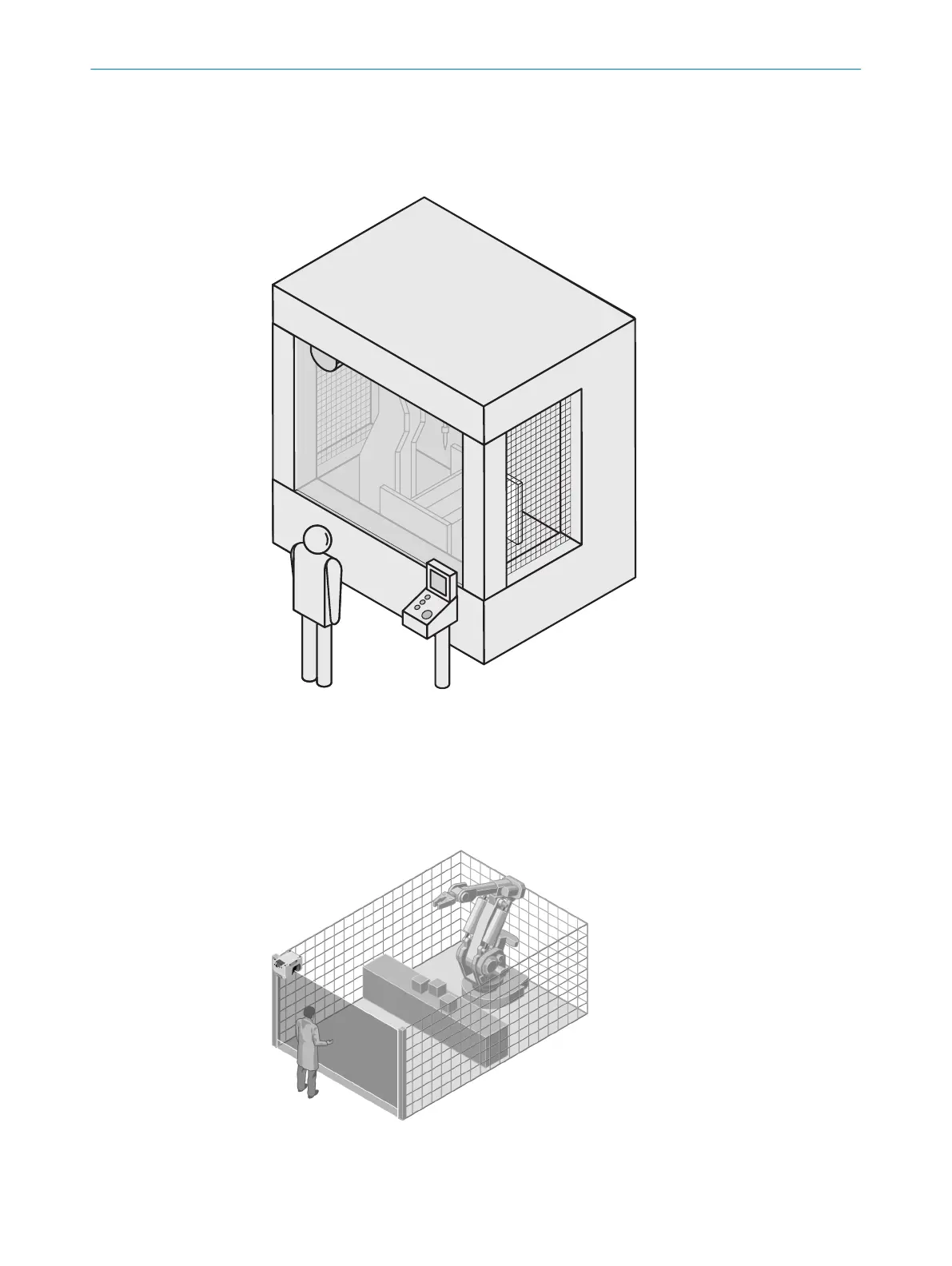

Figure 13: Hazardous point protection: hand detection
Access protection
In ac
cess protection, people are detected if their whole body passes through the protec‐
tive field. This type of protective device is used for the protection of access to haz‐
ardous areas. A stop signal is initiated if the hazardous area is entered. A person stand‐
ing behind the protective device will not be detected by the ESPE.
Figure 14: Access protection: detection of a person when accessing a hazardous area
PRODUCT DESCRIPTION 3
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
25
Subject to change without notice
