To adjust the safety laser scanners at different angles, use mounting kits 1 to 3. You
c
an check the beam path of the safety laser scanner using the LS70b scan finder (part
no. 6020756).
100 mm

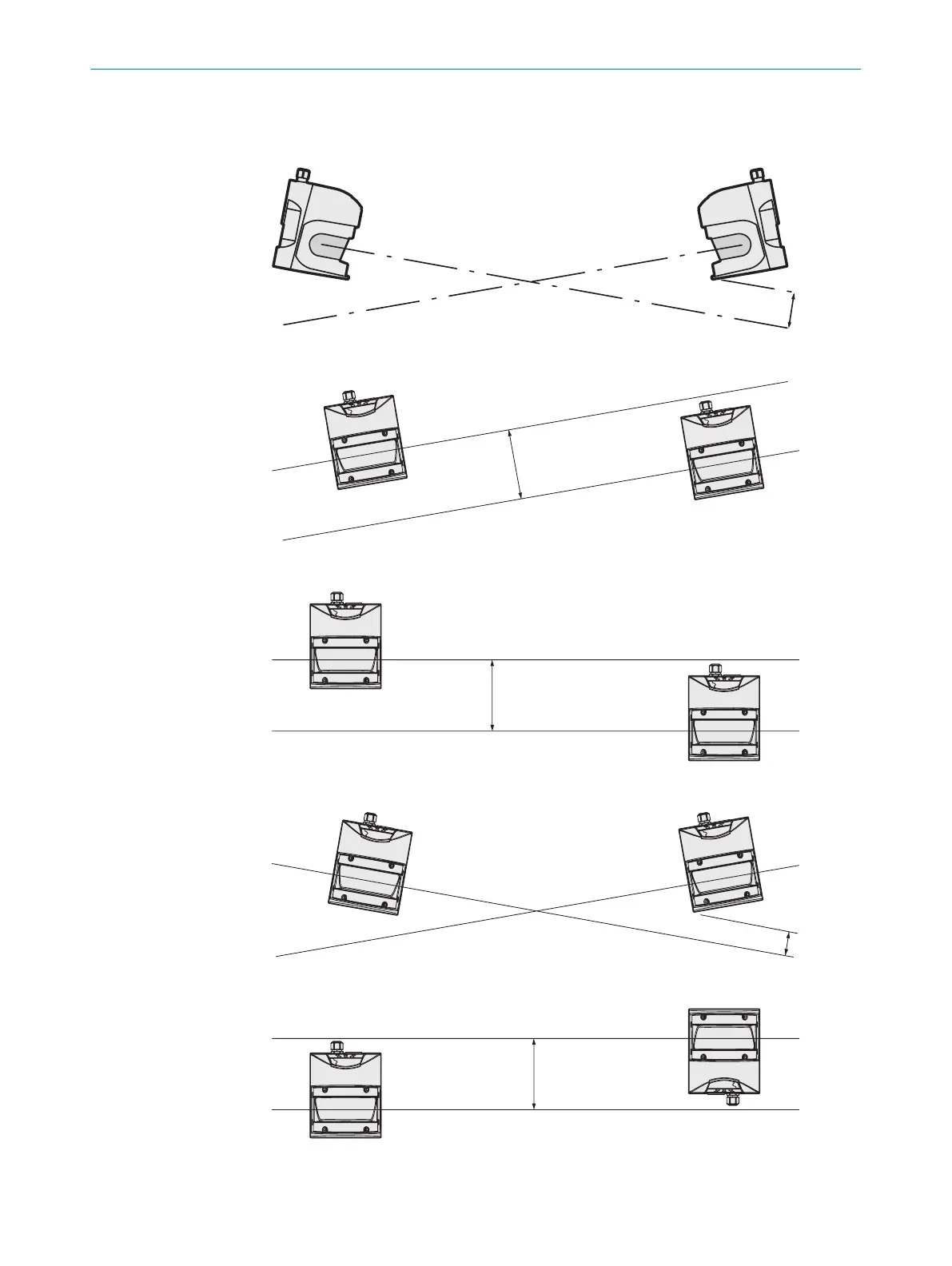

Figure 17: Mounting opposite
200 mm
Figure 18: Mounting angled parallel
200 mm
Figure 19: Mounting offset parallel
100 mm
Figure 20: Mounting crosswise
200 mm
Figure 21: Mounting one device upside down, offset parallel
4 P
ROJECT PLANNING
30
O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF 8013291/ZA19/2019-11-14 | SICK
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
