SICK S3000 PROFINET IO User Manual

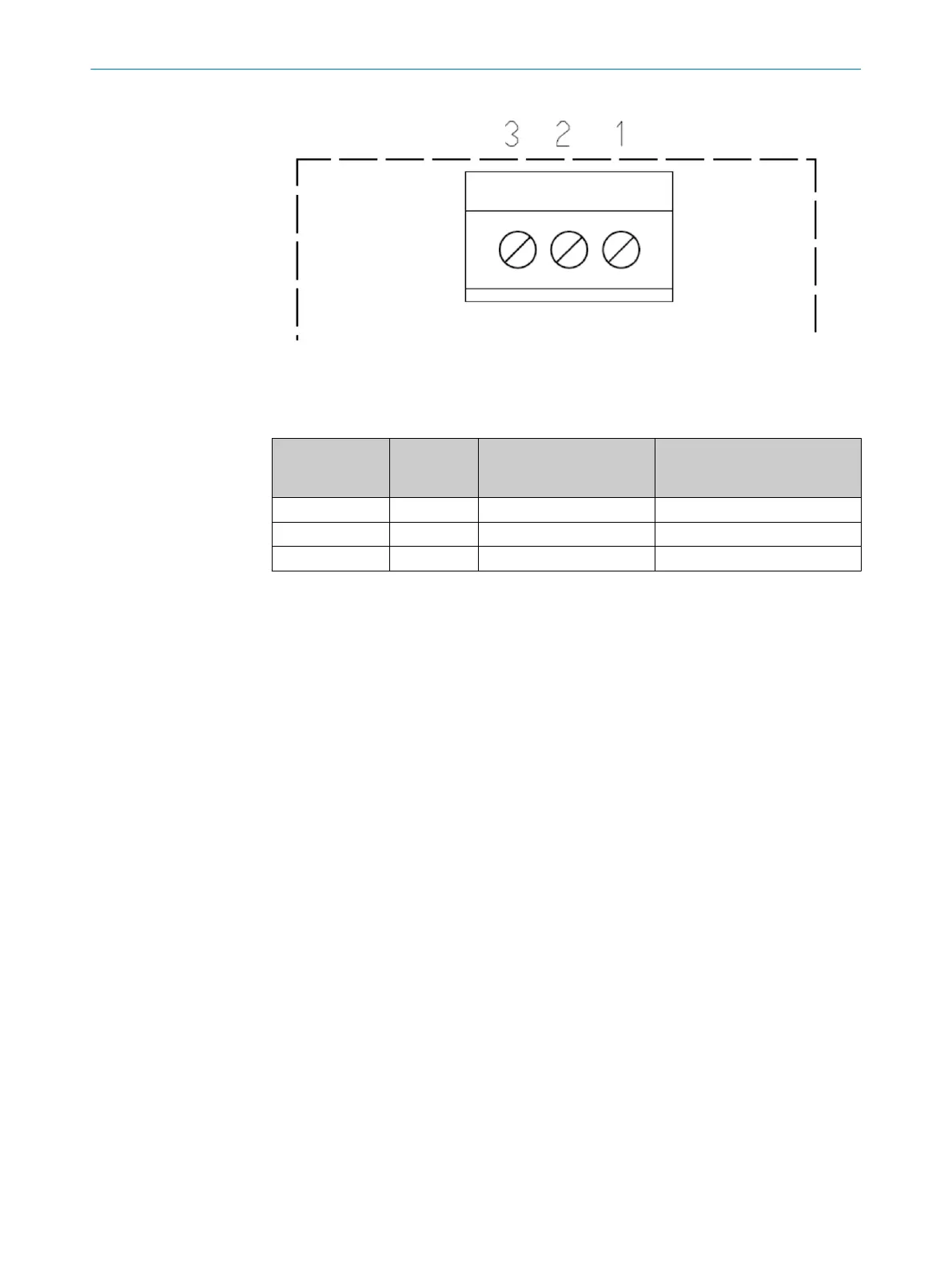

Figure 48: Terminals on the power supply plug
T
able 7: Terminal assignment on the power supply plug
Terminal Signal Function Wire color for pre-assembled
po
wer supply plug with flying
leads
1 24 V DC Supply voltage 1
2 – Reserved –
3 0 V DC Supply voltage 2
6.2.2 Network connection using RJ-45 push-pull male connector
To connect the device to the network, you need to use push-pull male connectors with a
me
tal housing. With the push-pull plug connected, the connection complies with enclo‐
sure rating IP65 (e.g., Phoenix VS-PPC-C1-RJ45-MNNA-PG9-4Q5, part number:
1608100).
With the supplied cover, the connection complies with enclosure rating IP65.
If the network is not connected to a further network subscriber, then a connection using
a single male connector is sufficient. It does not matter which of the two female con‐
nectors is used. The unused female connector must always be protected with the sup‐
plied cover (see figure 46).
ELECTRICAL INSTALLATION 6
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
61
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
