SICK S3000 PROFINET IO User Manual

1
2
3

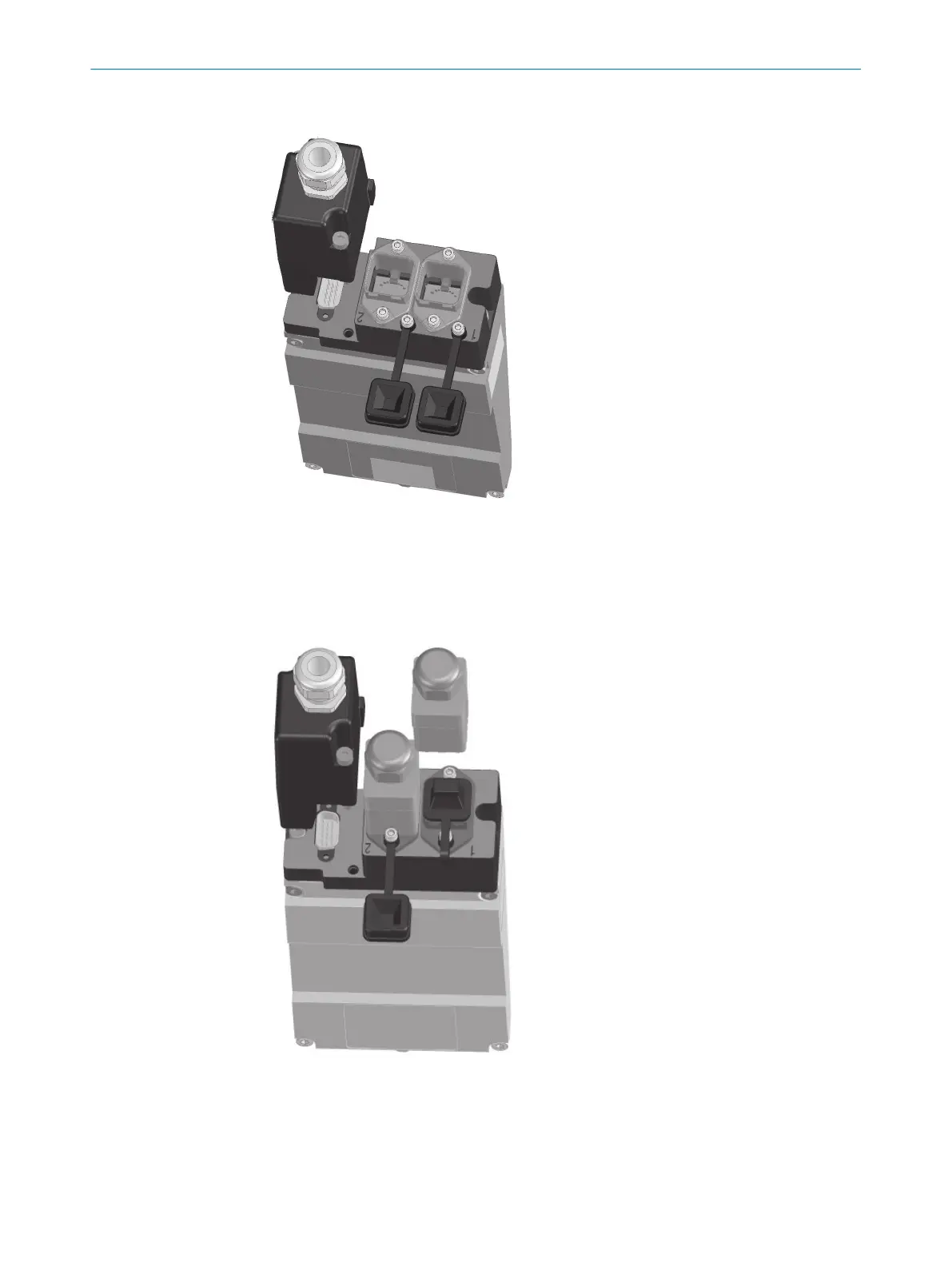

Figure 46: System connection for RJ45
1
Power supply plug
2
RJ-45 female connector 2
3
RJ-45 female connector 1
1 2 3
Figure 47: System connection for SCRJ (optical fiber)
1
Power supply plug
2
SCRJ female connector 2
3
SCRJ female connector 1
ELECTRICAL INSTALLATION 6
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
59
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
