SICK S3000 PROFINET IO User Manual

1
3
2

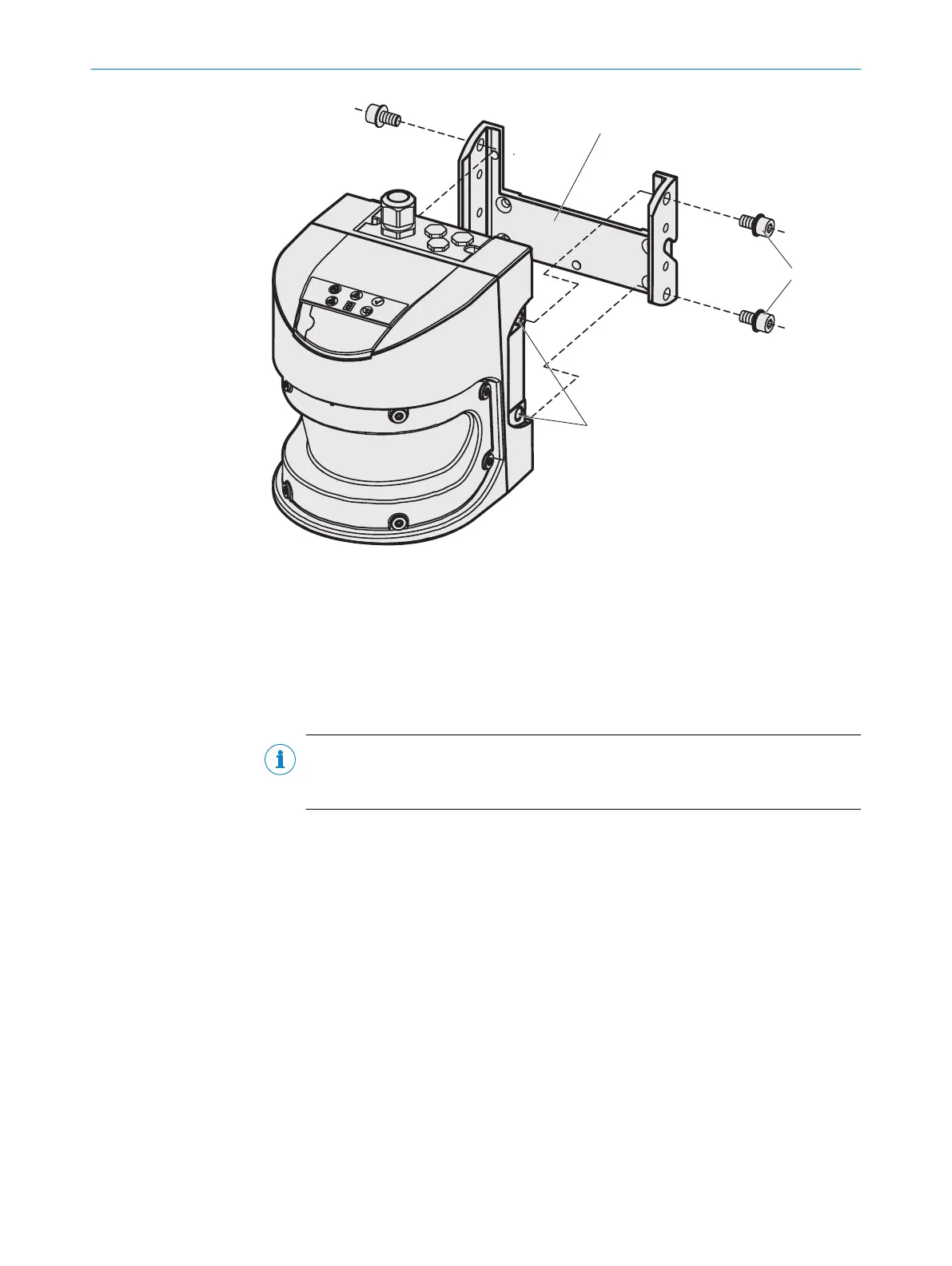

Figure 42: Mounting using mounting kit 1
1
Mounting kit 1
2
Fixing screws
3
Threaded mounting holes M8×9
Approach
1.
Mount kit 1 on the mounting surface.
2. Mount the safety laser scanner on mounting kit 1.
NOTE
Ob
serve the maximum permissible tightening torque of 16 Nm for the M8 × 9
threaded mounting holes.
5.2.3 Mounting using mounting kit 2
Overview
Y
ou can use mounting kit 2 (only in conjunction with mounting kit 1) to align the device
in 2 planes. The maximum adjustment angle is ± 11° in both planes.
5 MOUN
TING
54
O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF 8013291/ZA19/2019-11-14 | SICK
Subject to change without notice
