SICK S3000 PROFINET IO User Manual

4
1
5
2
3

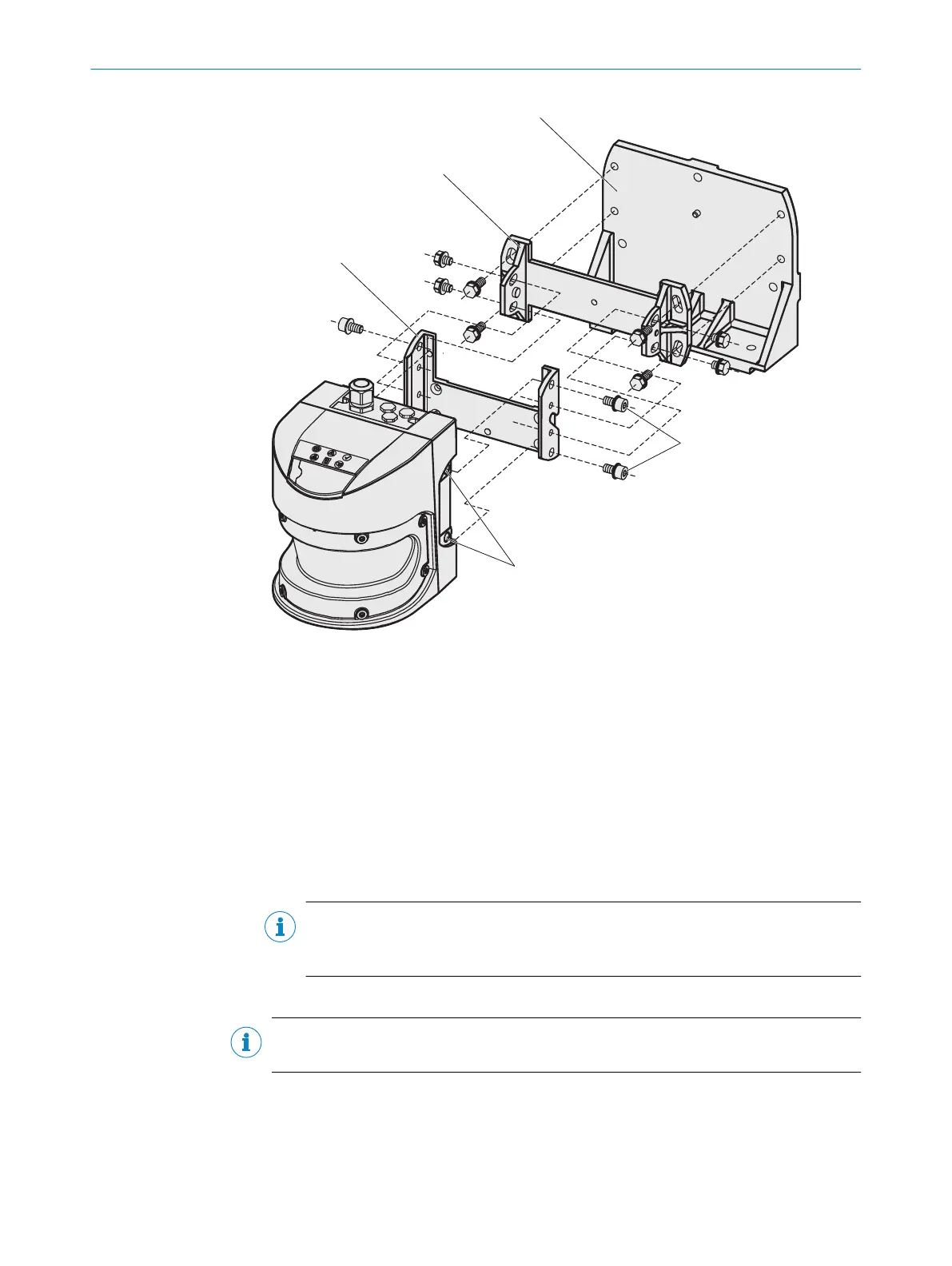

Figure 44: Mounting using mounting kit 3
1
Mounting kit 1
2
Mounting kit 2
3
Mounting kit 3
4
Threaded mounting holes M8×9
5
Fixing screws of the S3000
Approach
1.
Mount kit 3 on the mounting surface.
2. Mount kit 2 on mounting kit 3.
3. Mount kit 1 on mounting kit 2.
4. Mount the safety laser scanner on mounting kit 1.
NOTE
Ob
serve the maximum permissible tightening torque of 16 Nm for the M8 × 9
threaded mounting holes.
5. Adjust the safety laser scanner along the longitudinal and transversal axis.
NOTE
W
hen mounting the device, observe the dimensional drawings.
Further topics
•
"Dimensional dr
awings", page 121
5 MOUN
TING
56
O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF 8013291/ZA19/2019-11-14 | SICK
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
