SICK S3000 PROFINET IO User Manual

Approach
b
T
o configure and diagnose the device using the CDS, connect the PC to the config‐
uration connection of the safety laser scanner 1.
1

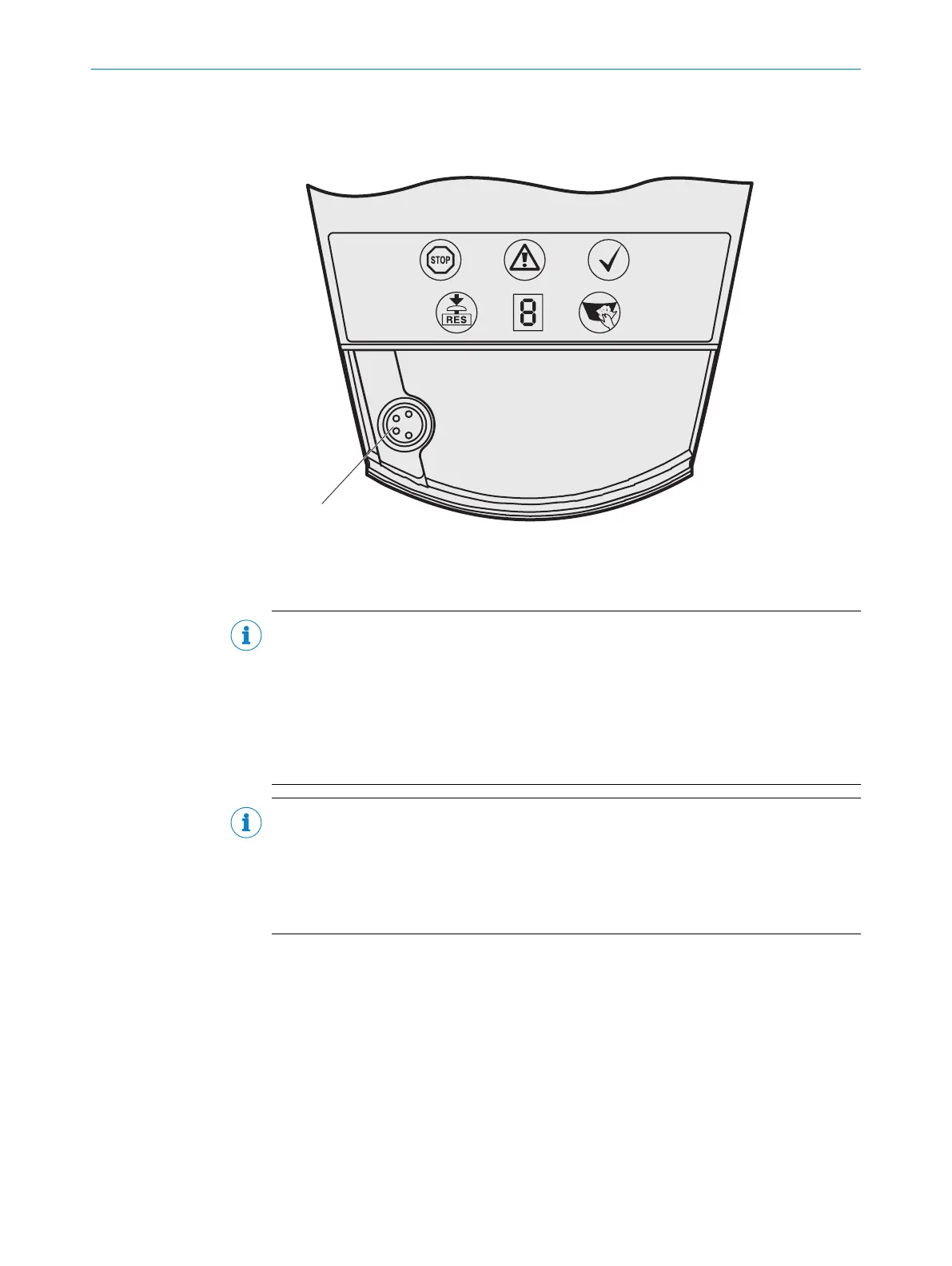

Figure 54: Configuration connection
Complementary information
NOTE
•
T
wo service cables of different lengths are available for connecting the PC or note‐
book to the safety laser scanner (see "Service cables", page 125).
•
Make sure that the service cable is not laid close to powerful electrical drives or
cables carrying high currents. This will avoid EMC effects on the service cable.
•
The service cable must only be connected for configuration and diagnostics. The
service cable must be plugged in and the protective cap attached during opera‐
tion.
NOTE
•
F
or more information on configuration, see the online help of the CDS (Configura‐
tion & Diagnostic Software).
•
You can use the password function in the CDS to protect the configuration settings
from unauthorized access if you store the passwords in such a way that they too
are protected from unauthorized access.
7.4 PROFINET IO network
An MRP domain and a NameOfStation must be named as per the PNO specification
V2.3.
T
he following naming convention therefore applies when configuring your PROFINET IO
network:
•
The identifier comprises one or more words. These words are separated using a
[.].
•
The total length of the identifier is 1 to 240 characters.
•
The word length is 1 to 63 characters.
CONFIGURATION 7
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
67
Subject to change without notice
