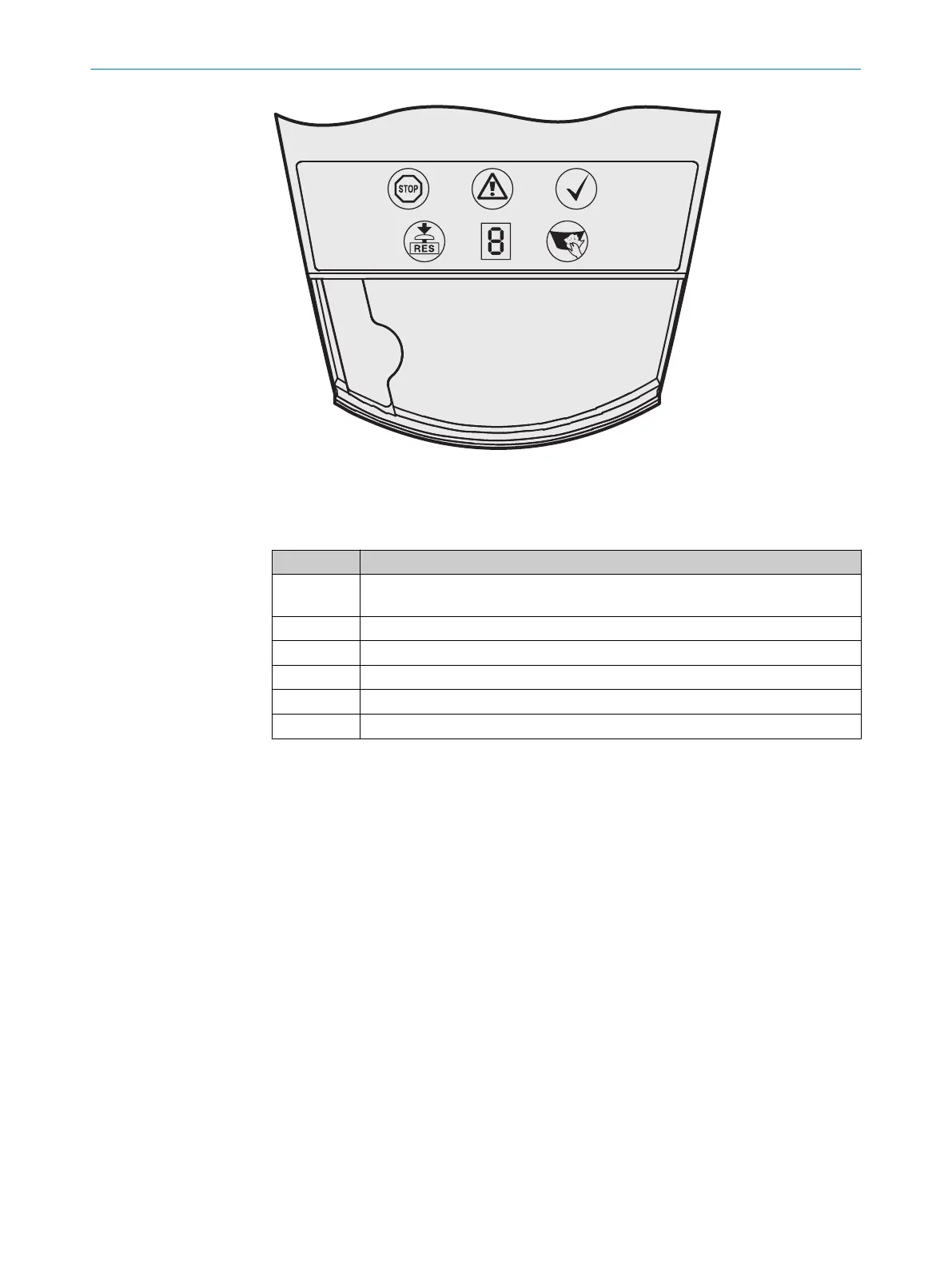

Figure 6: Status indicators of the safety laser scanner
T
he icons have the following meanings:
Table 2: Status indicators
Symbol Meaning
Ê
Object in the protective field, Monitored contour has changed, Reset required,
L
ock-out.
É
Warning field interrupted (Object in the warning field)
Ë
No object in the protective field
Ì
Reset required
Í
Front screen contaminated
7-segment display to indicate the status and errors
Further topics
•
"Er
ror and status indications of the LEDs", page 100
•
"Error and status indications on the 7segment display", page 101
3.2.6 Protective field, warning field and field set
Protective field
T
he protective field protects the hazardous area of a machine or vehicle. As soon as the
safety laser scanner recognizes an object in the protective field, the device signals Pro‐
tective field interrupted thereby causing the machine to be switched off or the vehicle to
be stopped.
Warning field
The warning fields can be defined so that the safety laser scanner detects an object
even before the actual hazardous area.
Warning field 1 can be used in particular for vehicle protection applications to detect an
object before the actual hazardous area and to slowly retard the movement of the vehi‐
cle or bring it to a standstill. This can reduce the wear on the brakes of the AGV. Warn‐
ing field 2 can also be used to trigger a warning signal.
3 PRODUCT DESCRIPTION
18
O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF 8013291/ZA19/2019-11-14 | SICK
Subject to change without notice
