SICK S3000 PROFINET IO User Manual

3
2
1

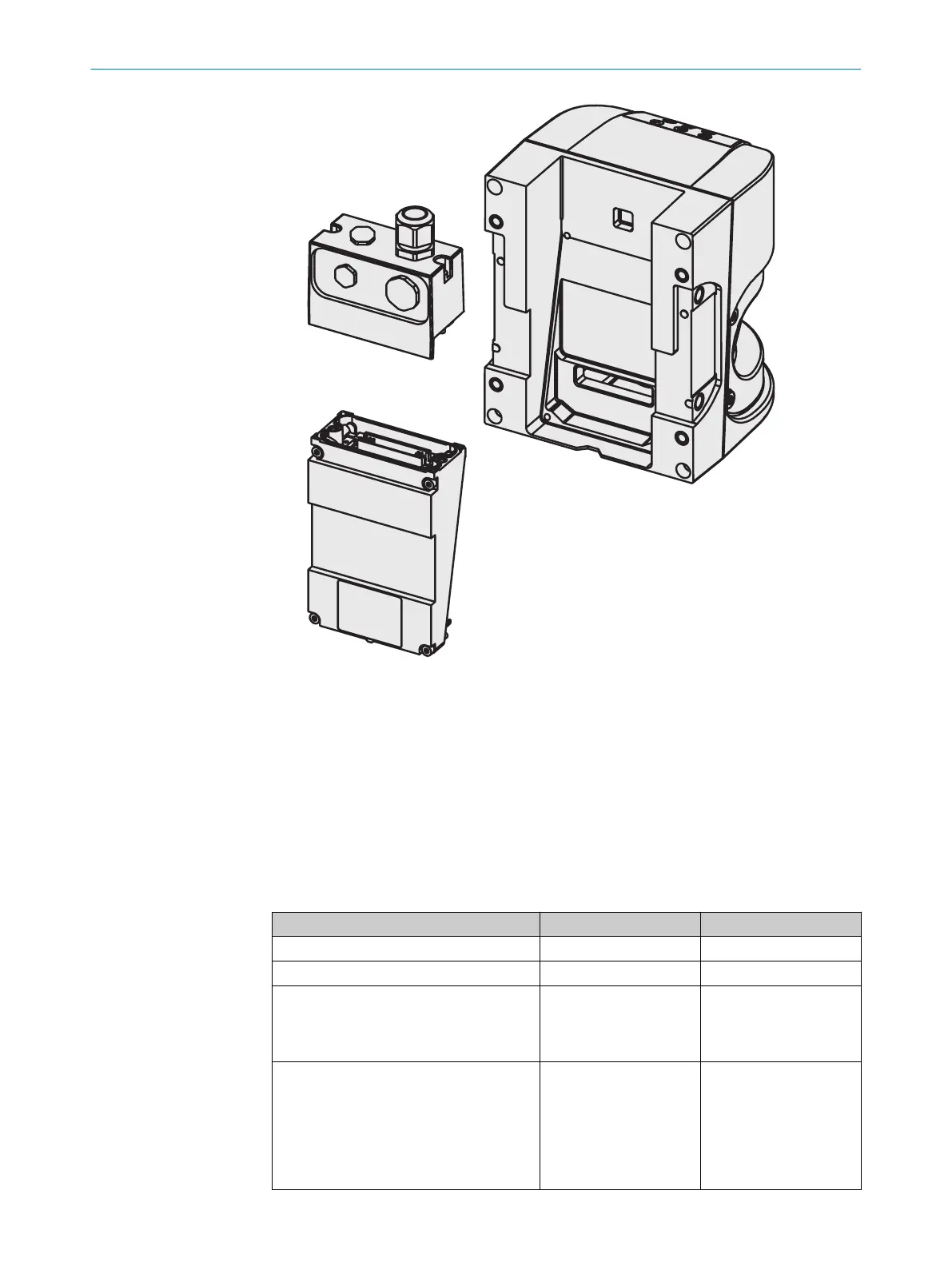

Figure 4: Sensor head, I/O module and system plug
1
System plug
2
I/O module
3
Sensor head
3.2.3 I/O module
The I/O module determines the available functions and therefore the possible fields of
applic
ation for the safety laser scanner.
I/O module functions
Table 1: Functions
Function Advanced Professional
Object resolution [mm] 30/40/50/70/150 30/40/50/70/150
Restart interlock/delay
✓ ✓
Field sets comprising one protective field
and one
warning field (dual field mode) or
2 protective fields (dual protective field
mode)
4 8
Can be used to simultaneously monitor 2
areas. The areas can be monitored with
one protective field and one warning field
respectively (dual field mode) or 2 protec‐
tive fields
1)
(dual protective field mode).
This allows up to 4 protective fields to be
monitored.
✓ ✓
3 PRODUCT DESCRIPTION
16
O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF 8013291/ZA19/2019-11-14 | SICK
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
