SICK S3000 PROFINET IO User Manual

Further topics
•
"Br
ackets", page 125
4.3.2 Measures to prevent unsecured areas
Overview
W
hen mounting the safety laser scanner, there may be areas which it cannot detect
(1).
1
X
X
Y Y

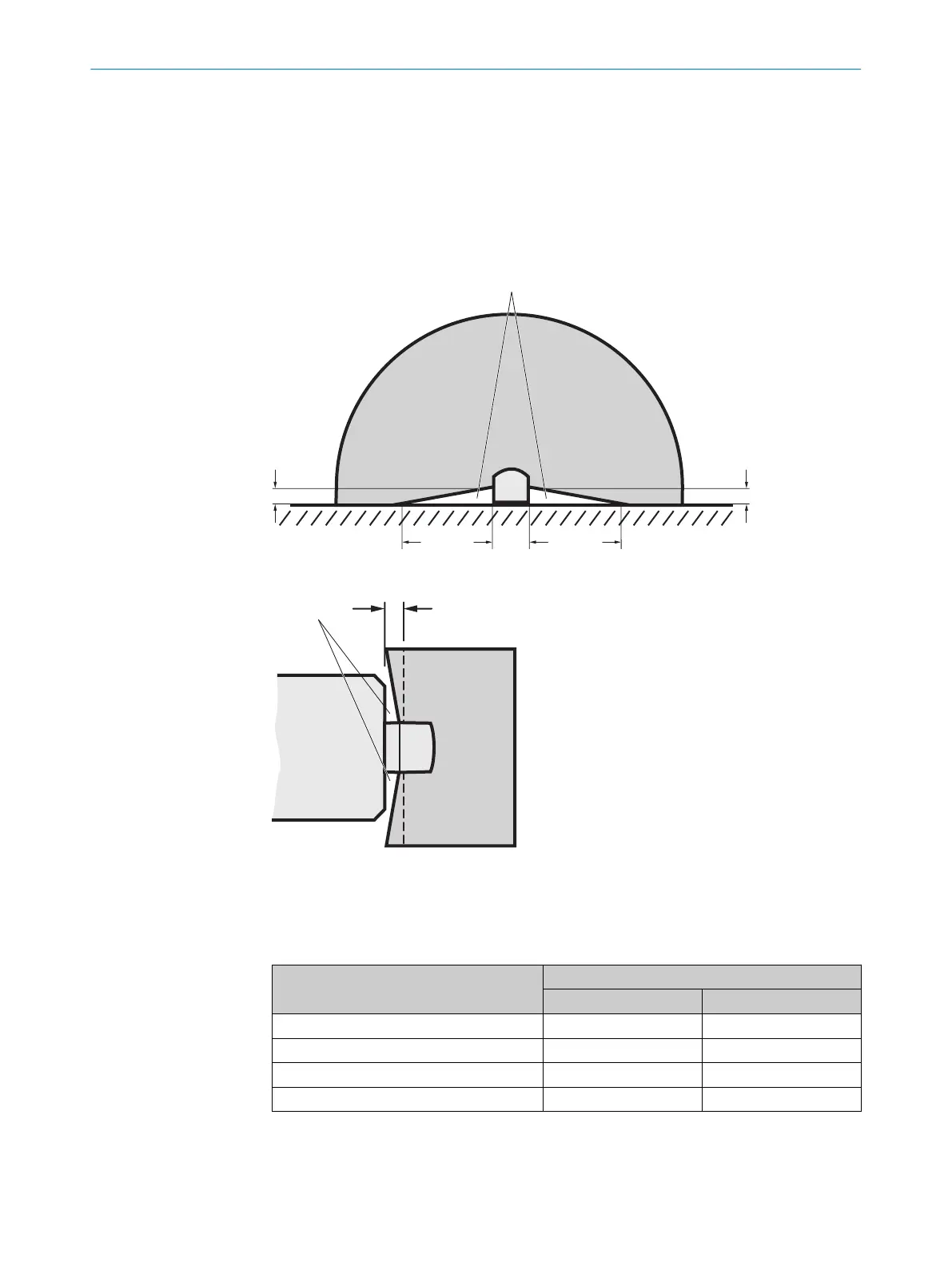

Figure 22: Unsecured areas in stationary applications
1
X
Figure 23: Unsecured areas in mobile applications
T
hese areas become larger if you mount the safety laser scanner using the mounting
kits.
Table 5: Size of the unsecured areas
Installation variant Size of the unsecured areas
X Y
Direct mounting 109 mm 1,245 mm
Using mounting kit 1 112 mm 1,280 mm
Using mounting kits 1 and 2 127 mm 1,452 mm
Using mounting kits 1, 2 and 3 142 mm 1,623 mm
PROJECT PLANNING 4
8013291/ZA19/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 PROFINET IO, S3000 PROFINET IO-OF
31
Subject to change without notice

SICK S3000 PROFINET IO Specifications

General

Field of view	190°
Response time	8 ms ... 80 ms
Protection class	IP65
Number of simultaneously monitored fields	4
Scanning angle	190°
Number of inputs	2
Number of outputs	4
Angular Resolution	0.5°
Interfaces	PROFINET IO
Operating temperature	0 °C ... +50 °C
Resolution for object detection	30 mm
Supply voltage	24 V DC
Type	Laser Scanner
Operating Voltage	24 V DC
Ambient Temperature	0 °C ... +50 °C
Storage Temperature	–25 °C ... +70 °C
Protective field range	0.2 m to 3 m
Protection Field Range	0.2 m to 3 m
