Magnetic retaining force
The magnetic retaining force is measured from the front side of the
actuator to the front of the sensor, as shown in Fig. 15.

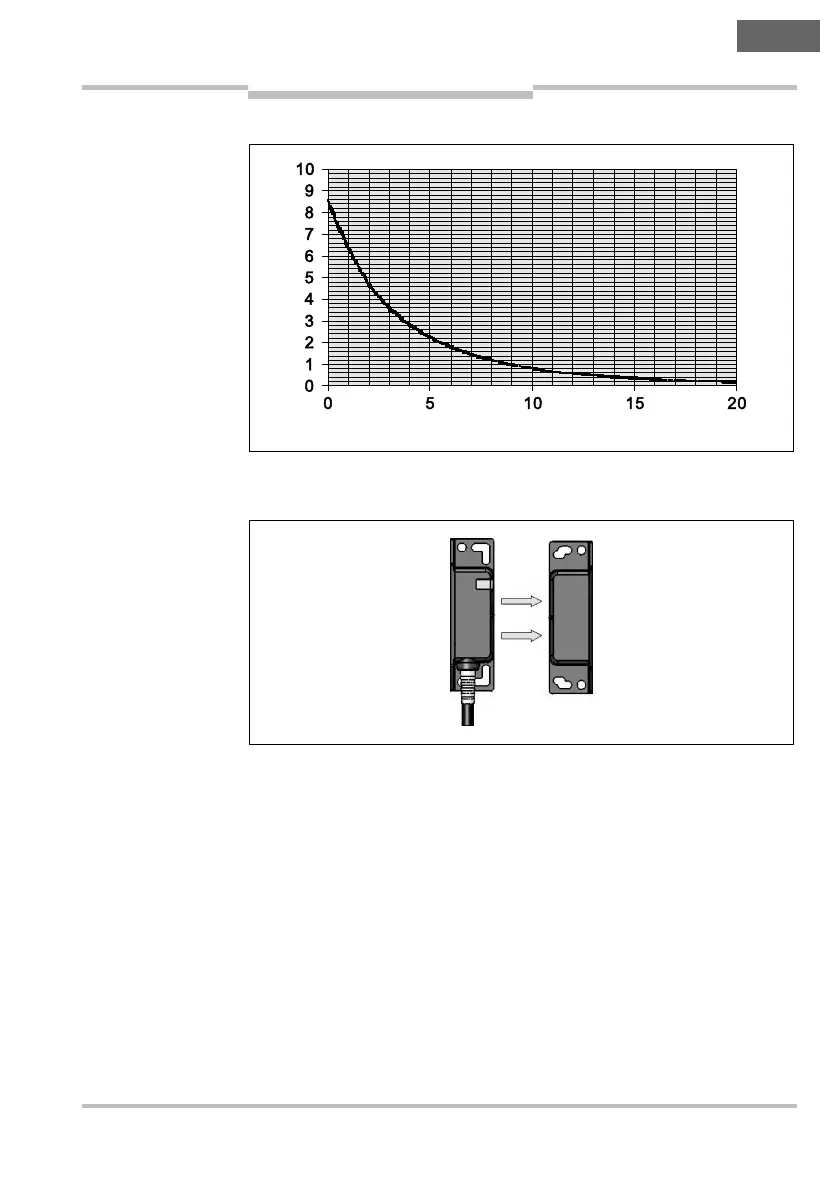

Fig. 14: Diagram of
magnetic retaining
force (only TR4-SFxxxx)
Note
Fig. 15: Area for the
measurement of the
magnetic retaining
force
Distance [mm]
Force [N]

SICK TR4 Specifications

General

Number of Safe Outputs	2
Output Type	PNP
Protection Rating	IP67
Type	Safety Switch
Housing Material	Plastic
Supply Voltage	24V DC
Connection Type	Cable
Operating Voltage	24 V DC
Operating Temperature	-25 °C ... +70 °C
Actuator Type	Separate actuator (TR4 Direct, TR4 Standard, TR4 Extended)
