Connections for frame sizes FSD … FSF
The line and motor connections have covers to prevent them from being touched.
/LQHVXSSO\0RWRU
///89:3(

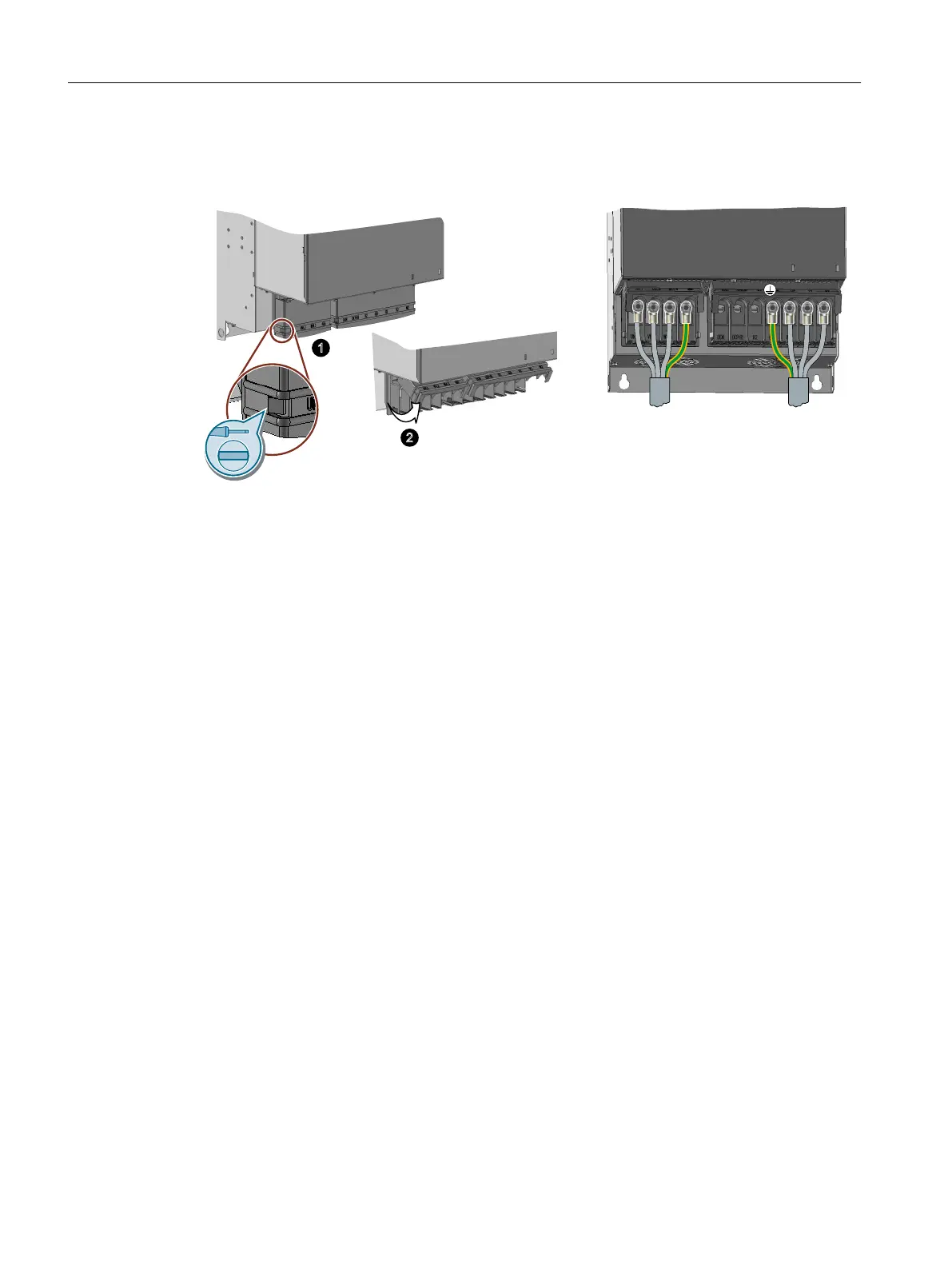

You must open the cover to connect the line and motor:
1. Release the catches on both sides of the covers using a screwdriver.
2. Swivel the covers upwards.
Close the covers once you have connected the line and motor.
Installing
4.4 Connecting the line supply and motor
Converter with the CU230P-2 Control Units
104 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
