I
6HWSRLQW
3
3
W
I
PD[

3

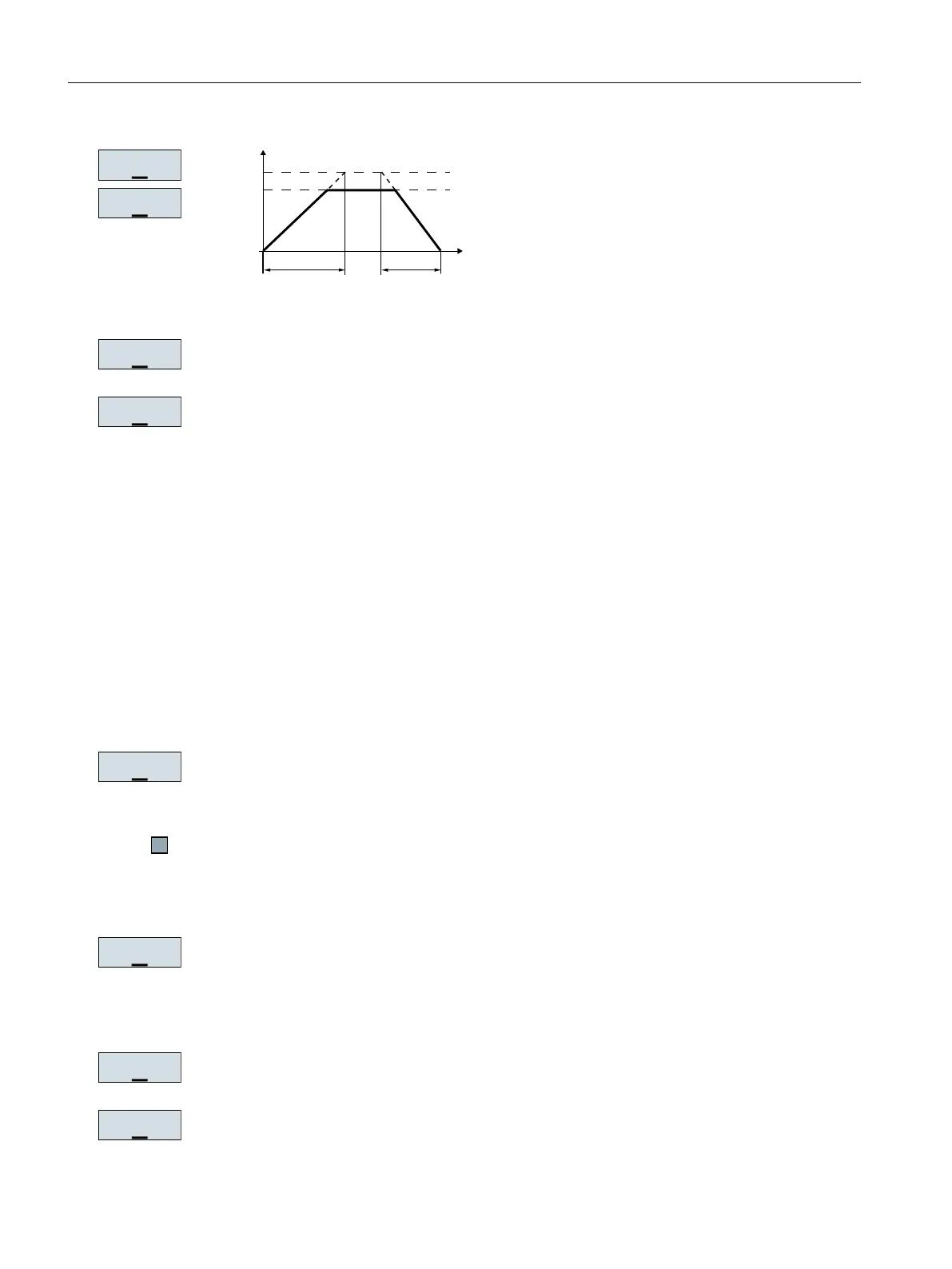

Figure 5-10 Ramp-up and ramp-down time of the motor
Ramp-down time after the OFF3 command
Motor data identification: Select the method which the inverter uses to measure the data of
the connected motor:
● OFF: No motor data identification
● STIL ROT: Measure the motor data at standstill and with the motor rotating.
The inverter switches off the motor after the motor data identification has been completed.
● STILL: Recommended setting: Measure the motor data at standstill.
The inverter switches off the motor after the motor data identification has been completed.
Select this setting if the motor cannot freely rotate, e.g. for a mechanically limited traversing
range.
● ROT: Measure the motor data while the motor is rotating.
The inverter switches off the motor after the motor data identification has been completed.
● ST RT OP: setting same as STIL ROT.
The motor accelerates to the currently set setpoint after the motor data identification.
● STILL OP: setting same as STILL.
The motor accelerates to the currently set setpoint after the motor data identification.
Complete the basic commissioning:
Switchover the display using an arrow key: nO → YES
Press the OK key.
You have entered all of the data that is necessary for the basic commissioning of your inverter.
5.4.3.3 Dynamic Drive Control
Select the motor standard:
● KW 50HZ: IEC
● HP 60HZ: NEMA
● KW 60HZ: IEC 60 Hz
Set the inverter supply voltage.
Select the motor type. If a 5-digit motor code is stamped on the motor rating plate, select the
corresponding motor type with motor code.
3
5$0383
3
5$03':1
3
2))53
3
027,'
),1,6+
3
(8586$
3
,1992/7
3
0277<3(
Commissioning
5.4 Quick commissioning using the BOP-2 operator panel
Converter with the CU230P-2 Control Units
164 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
