A.3 The device trace in STARTER
Description

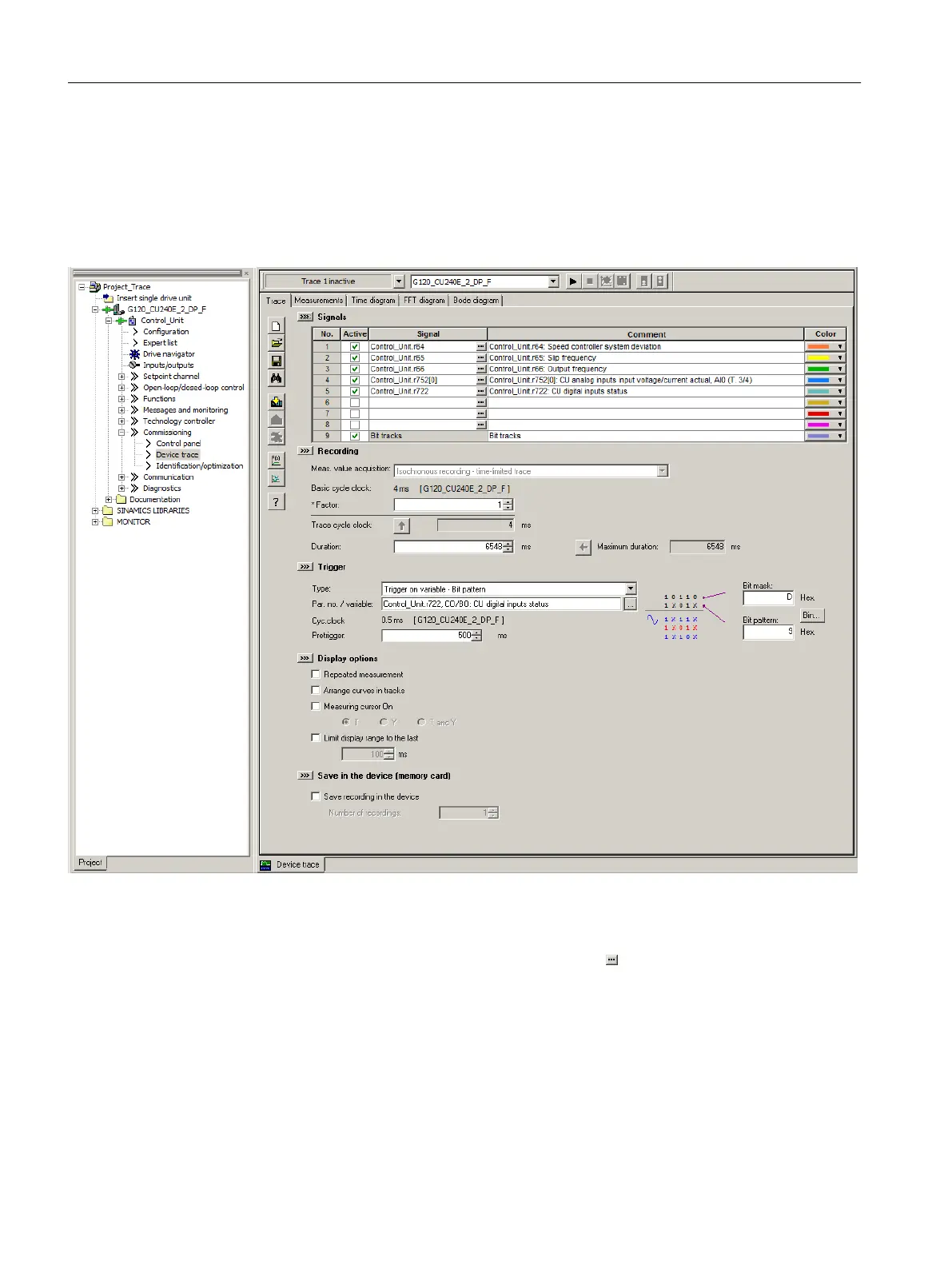

The device trace graphically displays inverter signals with respect to time.
Signals
In two settings that are independent of one another, using
you can interconnect eight signals
each.
Recording
You can start a measurement as frequently as you require. As long as you do not exit START,
the results remain under the "Measurements" tab with data and time. When terminating
STARTER or under the "Measurements" tab, you can save the measurement results in the
*.trc format.
Appendix
A.3 The device trace in STARTER
