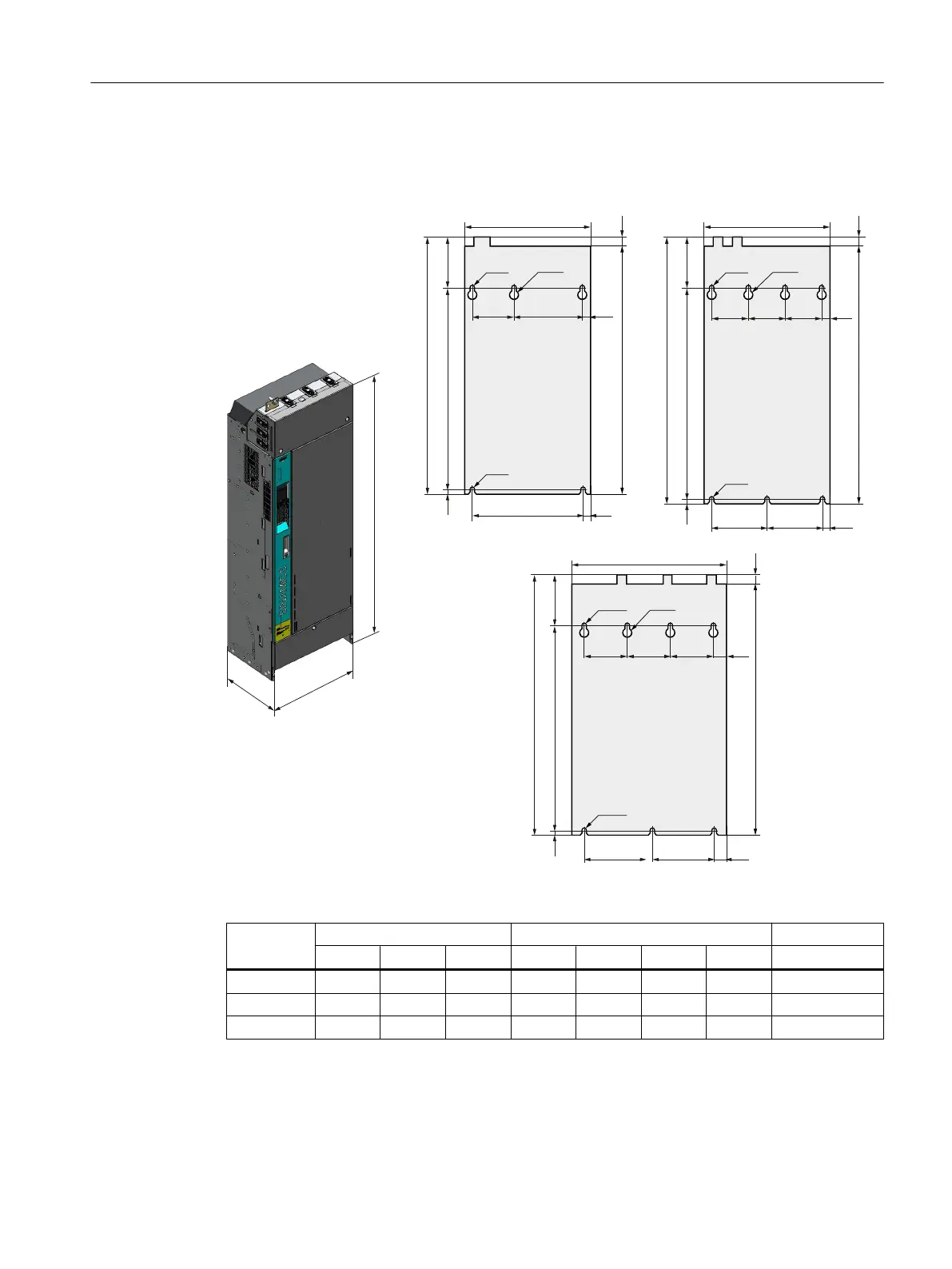

4.3.5 Dimension drawings, drilling dimensions for the Power Module PM330, IP20
The following dimension drawings and drilling patterns are not to scale.
+HLJKW
'HSWK
:LGWK
*;
+;
-;
Table 4-11 Dimensions, cooling air clearances [mm] and fastening [Nm]
Frame size Dimensions Cooling air clearances Mounting
Depth Height Width Top Bottom Lateral Front Screws/torque
GX 328 1402 452 200 200 30 30 5 x M8 / 25
HX 393 1660 548 200 250 30 100 7 x M8 / 25
JX 393 1579 801 200 250 30 100 7 x M8 / 25
Installing
4.3 Installing Power Modules
Converter with the CU230P-2 Control Units
Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE 73
