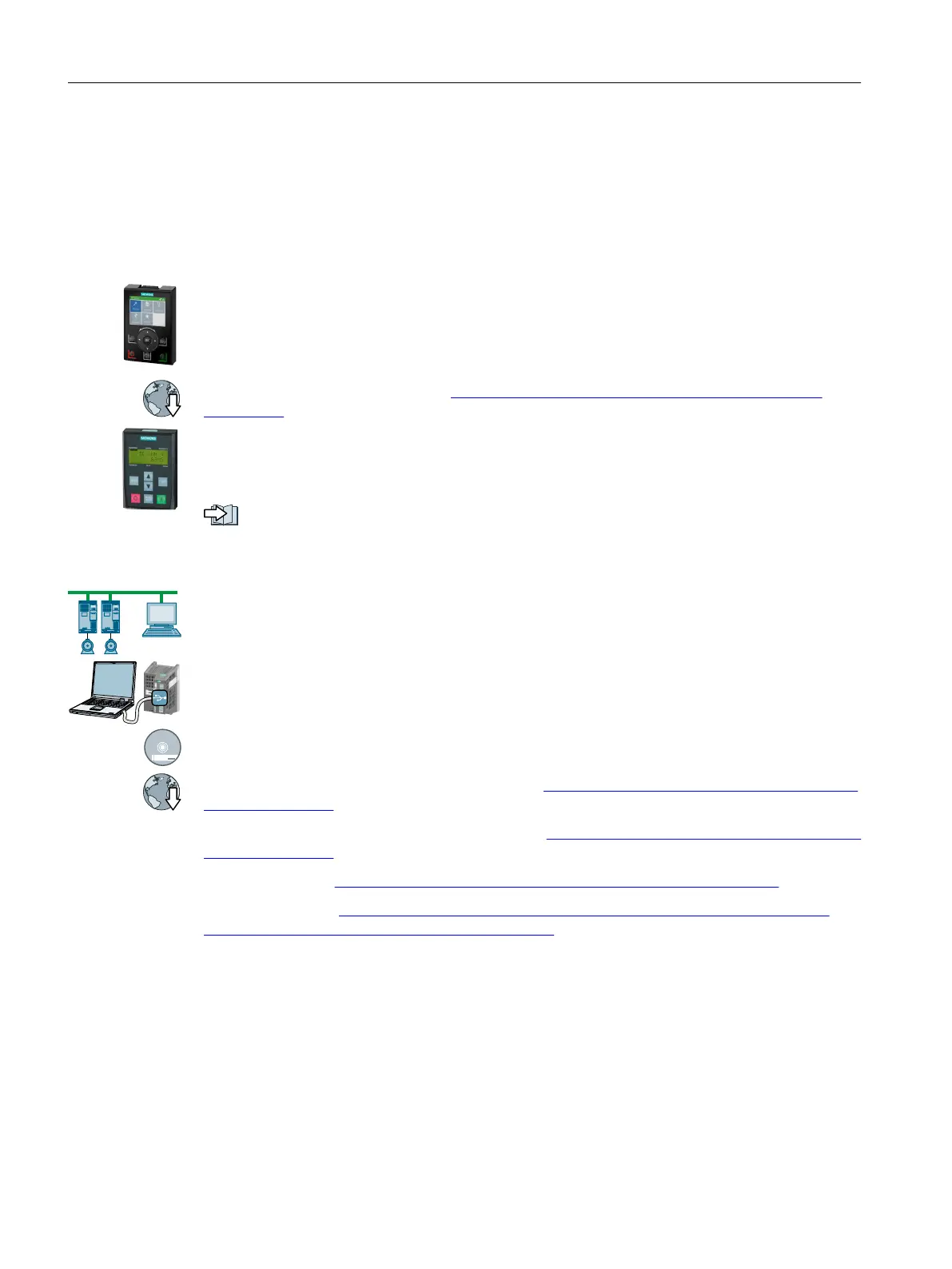

5.2 Tools to commission the inverter
Operator panel
An operator panel is used to commission, troubleshoot and control the inverter, as well as to
back up and transfer the inverter settings.
The Intelligent Operator Panel (IOP‑2) can either be snapped onto an inverter, or is available
as handheld device with a connecting cable to the inverter. The graphics-capable plain text
display of the IOP-2 enables intuitive operation and diagnostics of the inverter.
Additional information on the IOP‑2 is available in the Internet:
SINAMICS IOP-2 release for sale (
https://support.industry.siemens.com/cs/ww/en/view/
109747625)
The Operator Panel BOP‑2 for snapping onto the inverter has a two-line display for diagnostics
and operating the inverter.
Operating Instructions of the BOP-2 and IOP-2 operator panels:
Overview of the manuals (Page 537)
PC tools
STARTER and Startdrive are PC tools that are used to commission, troubleshoot and control
the inverter, as well as to back up and transfer the inverter settings. You can connect the PC
with the inverter via USB or via the PROFIBUS / PROFINET fieldbus.
Connecting cable (3 m) between PC and inverter: Article number 6SL3255-0AA00-2CA0
STARTER DVD: Article number 6SL3072-0AA00-0AG0
Startdrive DVD: Article number 6SL3072-4CA02-1XG0
Startdrive, system requirements and download (http://support.automation.siemens.com/WW/
view/en/68034568)
STARTER, system requirements and download (http://support.automation.siemens.com/WW/
view/en/26233208)
Startdrive tutorial (http://support.automation.siemens.com/WW/view/en/73598459)
STARTER videos (http://www.automation.siemens.com/mcms/mc-drives/en/low-voltage-
inverter/sinamics-g120/videos/Pages/videos.aspx)
Commissioning
5.2 Tools to commission the inverter
Converter with the CU230P-2 Control Units
146 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
