5.5.8 Identify motor data
Identify motor data
WARNING
Unexpected machine motion while the motor data identification is in progress
The stationary measurement can turn the motor a number of revolutions. The rotating
measurement accelerates the motor up to the rated speed. Secure dangerous machine parts
before starting motor data identification:
● Before switching on, ensure that nobody is working on the machine or located within its
working area.
● Secure the machine's working area against unintended access.
● Lower suspended loads to the floor.
Preconditions
● You selected a method of motor data identification during quick commissioning, e.g.
measurement of the motor data while the motor is stationary.
When quick commissioning is complete, the inverter issues alarm A07991.
● The motor has cooled down to the ambient temperature.
An excessively high motor temperature distorts the results of motor data identification.
● The PC and inverter are connected to each other online.
Procedure with STARTER
To initiate motor data identification and optimize the motor control, proceed as follows:
1. Open the control panel.

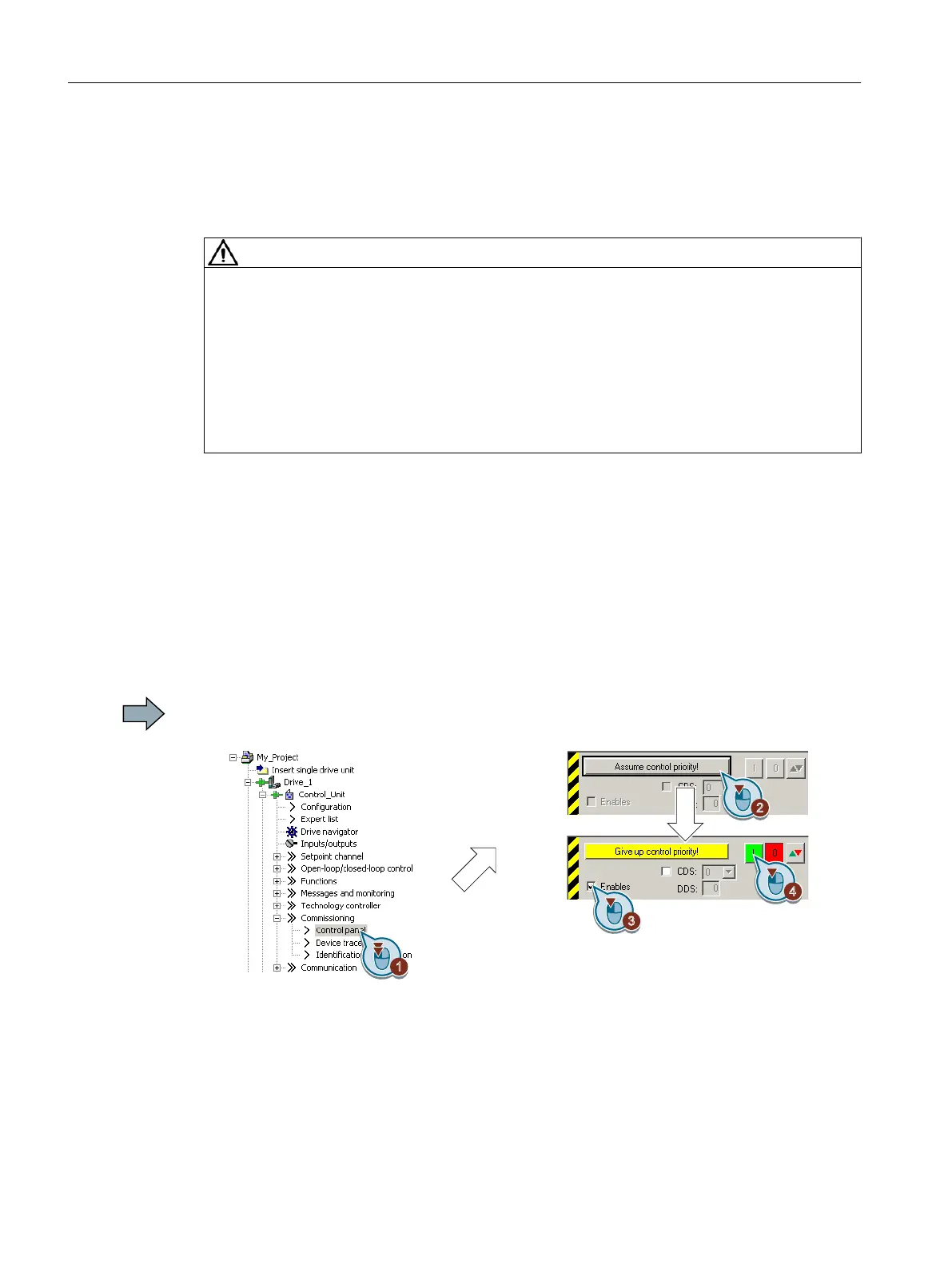

Figure 5-21 Control panel
2. Assume master control for the inverter.
3. Set the "Enable signals"
Commissioning
5.5 Quick commissioning with a PC
Converter with the CU230P-2 Control Units
186 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
