7.1 Backing up and transferring settings using a memory card
7.1.1 Memory cards

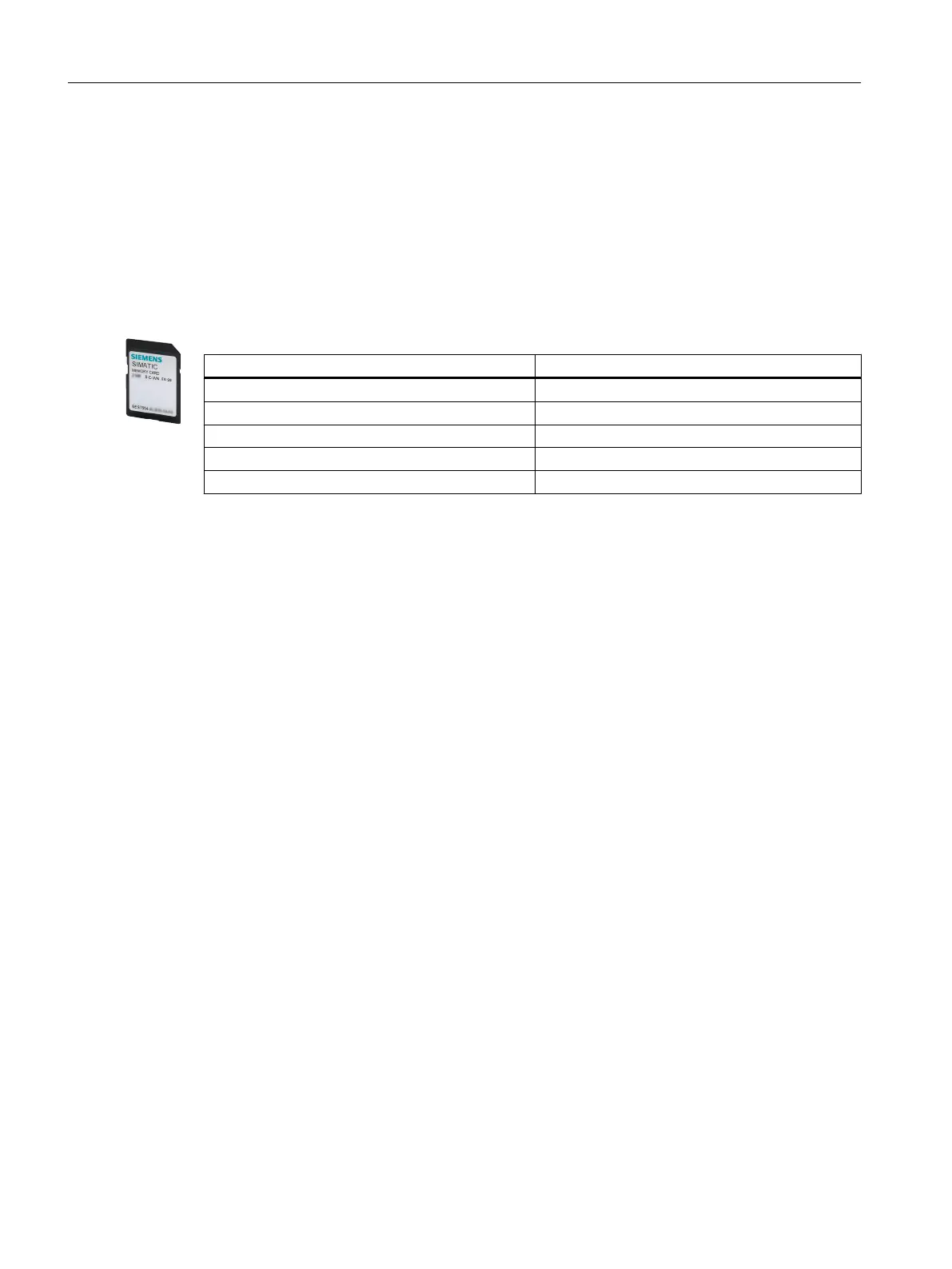

Recommended memory cards
Table 7-1 Memory cards to back up inverter settings
Scope of delivery Article number
Memory card without firmware 6SL3054-4AG00-2AA0
Memory card with firmware V4.7 6SL3054-7EH00-2BA0
Memory card with firmware V4.7 SP3 6SL3054-7TB00-2BA0
Memory card with firmware V4.7 SP6 6SL3054-7TD00-2BA0
Memory card with firmware V4.7 SP9 6SL3054-7TE00-2BA0
Using memory cards from other manufacturers
The inverter only supports memory cards up to 2 GB. SDHC cards (SD High Capacity) and
SDXC cards (SD Extended Capacity) are not permitted.
If you use other SD or MMC memory cards, then you must format the memory card as follows:
● MMC: Format FAT 16
– Insert the card into your PC's card reader.
– Command to format the card:
format x: /fs:fat (x: Drive code of the memory card on your PC)
● SD: Format FAT 16 or FAT 32
– Insert the card into your PC's card reader.
– Command to format the card:
format x: /fs:fat or format x: /fs:fat32 (x: Drive code of the memory card on your PC.)
Functional restrictions with memory cards from other manufacturers
The following functions are either not possible – or only with some restrictions – when using
memory cards from other manufacturers:
● Licensing functions is only possible using the recommended memory cards.
● Know-how protection is only possible with one of the recommended memory cards.
● Under certain circumstances, memory cards from other manufacturers do not support
writing or reading data from/to the inverter.
Saving the settings and series commissioning
7.1 Backing up and transferring settings using a memory card
Converter with the CU230P-2 Control Units
370 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
