A.4 Interconnecting signals in the converter
A.4.1 Fundamentals
The following functions are implemented in the inverter:
Open-loop and closed-loop control functions
Communication functions
Diagnosis and operating functions
Every function comprises one or several blocks that are interconnected with one another.
0RWRUL]HGSRWHQWLRPHWHUVHWSRLQW
DIWHUWKHUDPSIXQFWLRQJHQHUDWRU
0RWRUL]HGSRWHQWLRPHWHU
VHWSRLQWORZHU
0RWRUL]HGSRWHQWLRPHWHU
VHWSRLQWKLJKHU
,QSXWV2XWSXW3DUDPHWHU
S
U
S
023

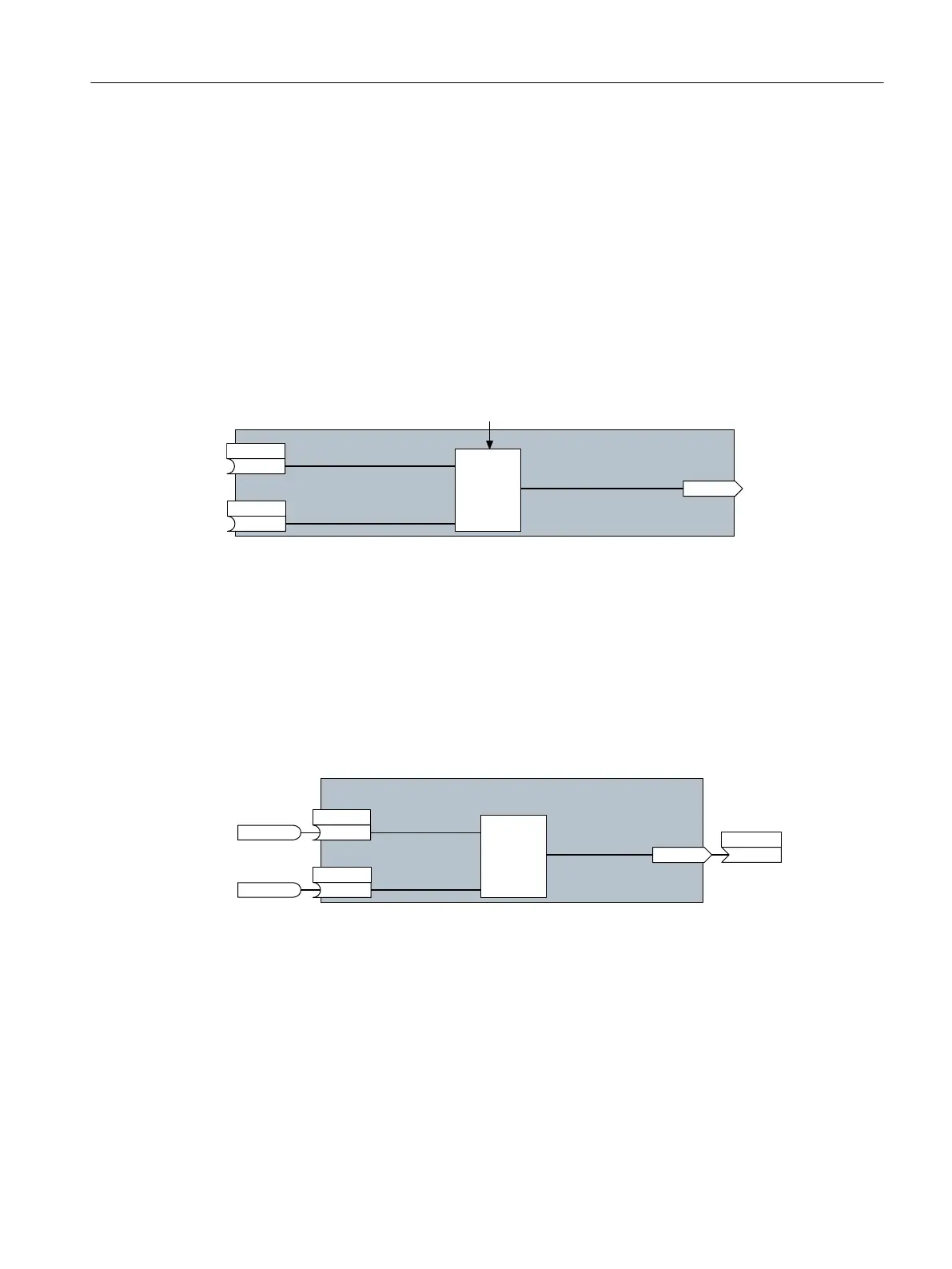

Figure A-4 Example of a block: Motorized potentiometer (MOP)
Most of the blocks can be adapted to specific applications using parameters.
You cannot change the signal interconnection within the block. However, the interconnection
between blocks can be changed by interconnecting the inputs of a block with the appropriate
outputs of another block.
The signal interconnection of the blocks is realized, contrary to electric circuitry, not using
cables, but in the software.
0DLQVHWSRLQW
0RWRUL]HGSRWHQWLRPHWHU
VHWSRLQWDIWHUWKH
UDPSIXQFWLRQJHQHUDWRU
0RWRUL]HG
SRWHQWLRPHWHU
VHWSRLQWORZHU
0RWRUL]HG
SRWHQWLRPHWHU
VHWSRLQWKLJKHU
352),GULYH
UHFHLYH3='
ELWE\ELW
S

U
U
S
U
S
023
Figure A-5 Example: Signal interconnection of two blocks for digital input 0
Appendix
A.4 Interconnecting signals in the converter
Converter with the CU230P-2 Control Units
Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE 533
