5.5.2 Transfer inverters connected via USB into the project
Integrating the inverter into the project
Procedure
Proceed as follows to transfer an inverter connected via USB to your project:
1. Switch on the inverter supply voltage.
2. First insert a USB cable into your PC and then into the inverter.
3. The PC operating system installs the USB driver when you are connecting the inverter and
PC together for the first time.
4. Press the "Accessible nodes" button.

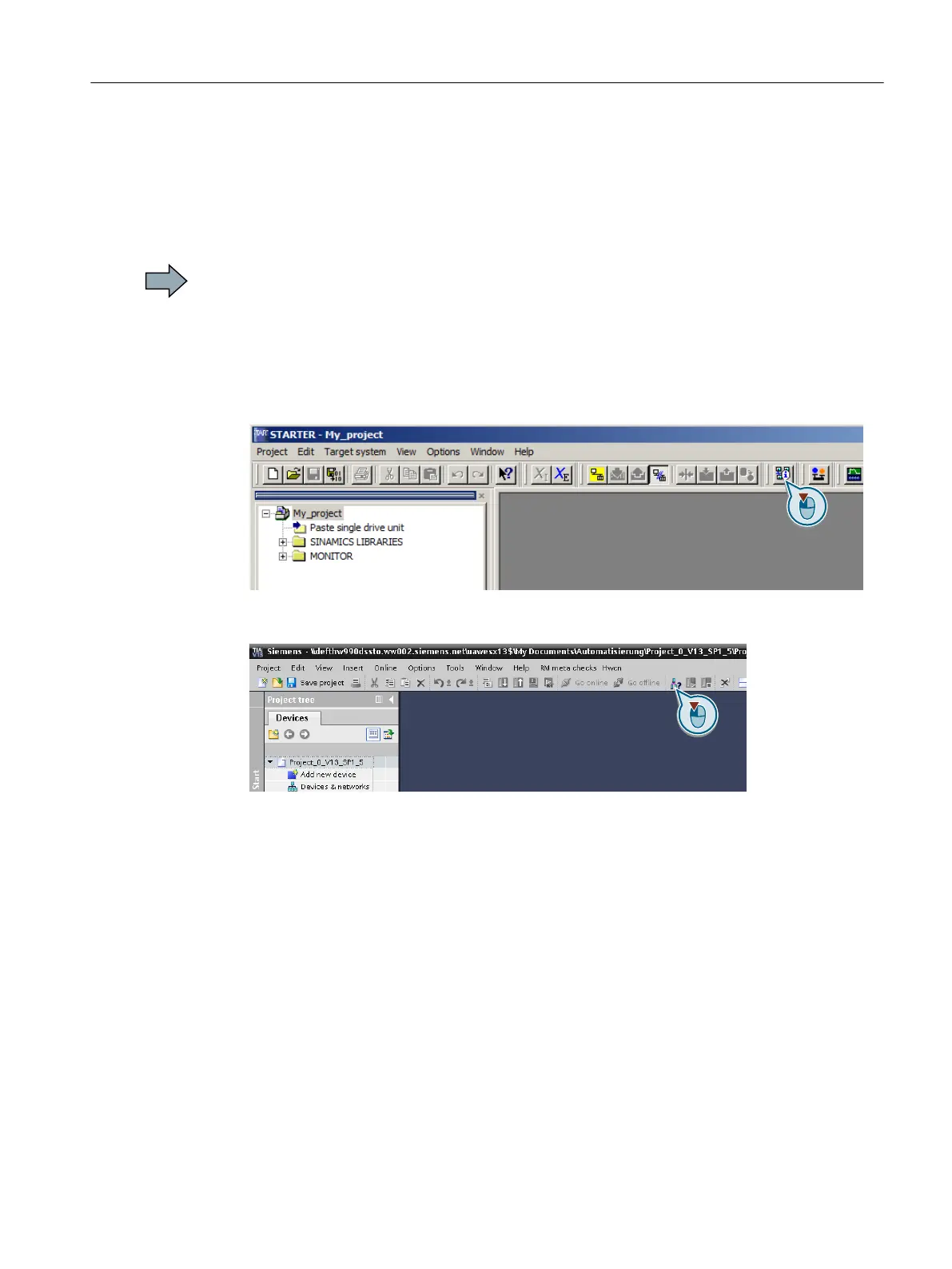

Figure 5-15 "Accessible nodes" in STARTER
Figure 5-16 "Accessible nodes" in Startdrive
Commissioning
5.5 Quick commissioning with a PC
Converter with the CU230P-2 Control Units
Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE 175
