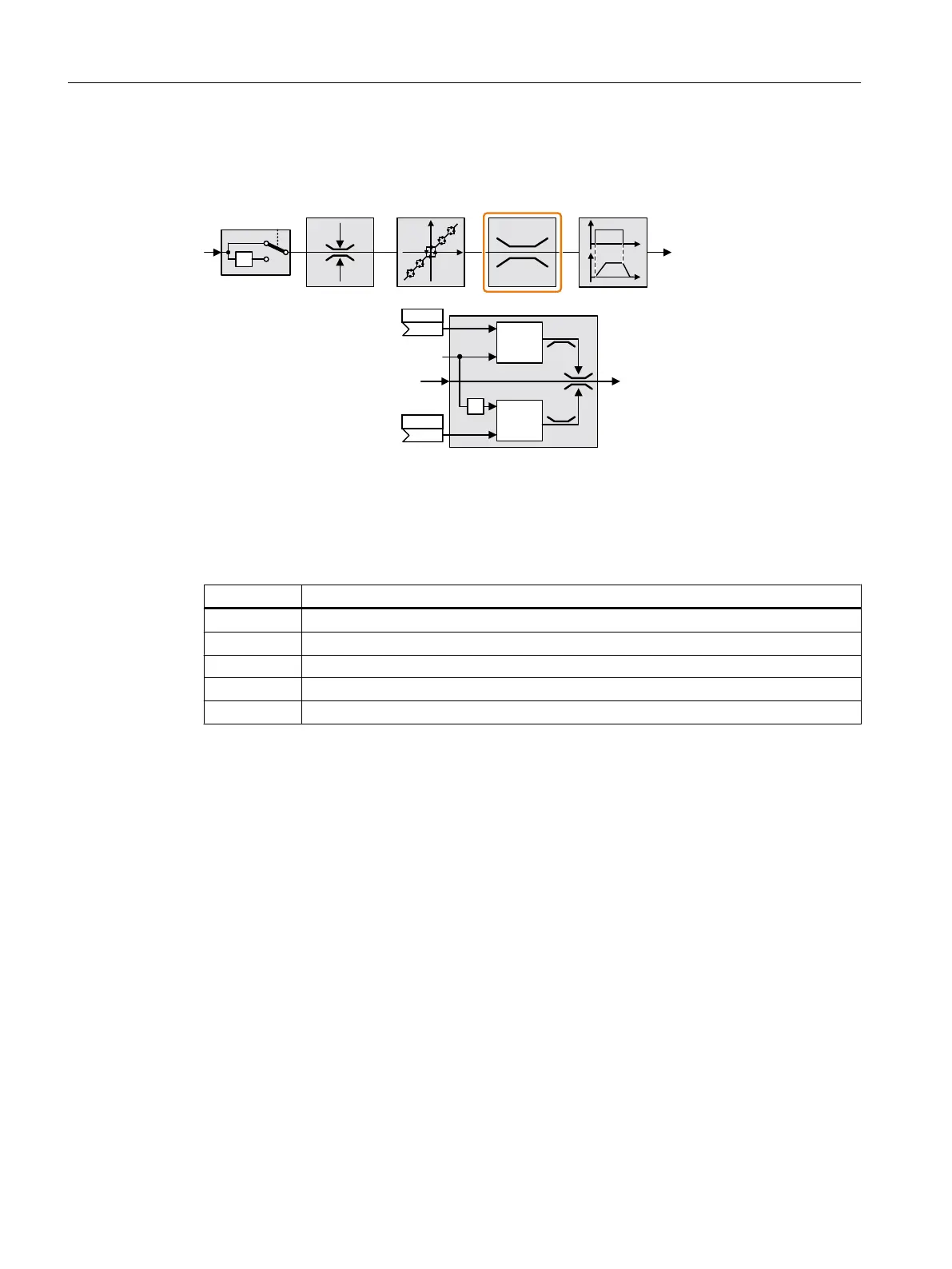

6.17.5 Speed limitation
The maximum speed limits the speed setpoint range for both directions of rotation.
0D[LPXPVSHHG
0LQ
0D[
[
\
[
\
W
\\[[
S
S
The converter generates a message (fault or alarm) when the maximum speed is exceeded.
If you must limit the speed depending on the direction of rotation, then you can define speed
limits for each direction.
Table 6-41 Parameters for the speed limitation
Parameter Description
p1082 Maximum speed (factory setting: 1500 rpm)
p1083 Speed limit, positive direction of rotation (factory setting: 210,000 rpm)
p1085 CI: Speed limit, positive direction of rotation (factory setting: 1083)
p1086 Speed limit, negative direction of rotation (factory setting: -210,000 rpm)
p1088 CI: Speed limit, negative direction of rotation (factory setting: 1086)
Advanced commissioning
6.17 Setpoint calculation
Converter with the CU230P-2 Control Units
270 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
