3.5.7 Braking Module and braking resistor
The braking resistor allows loads with a high moment of inertia to be quickly braked.
Inverters with power up to 132 kW have an integrated Braking Module that controls
the braking resistor.
A Braking Module is available as option for inverters with more power.

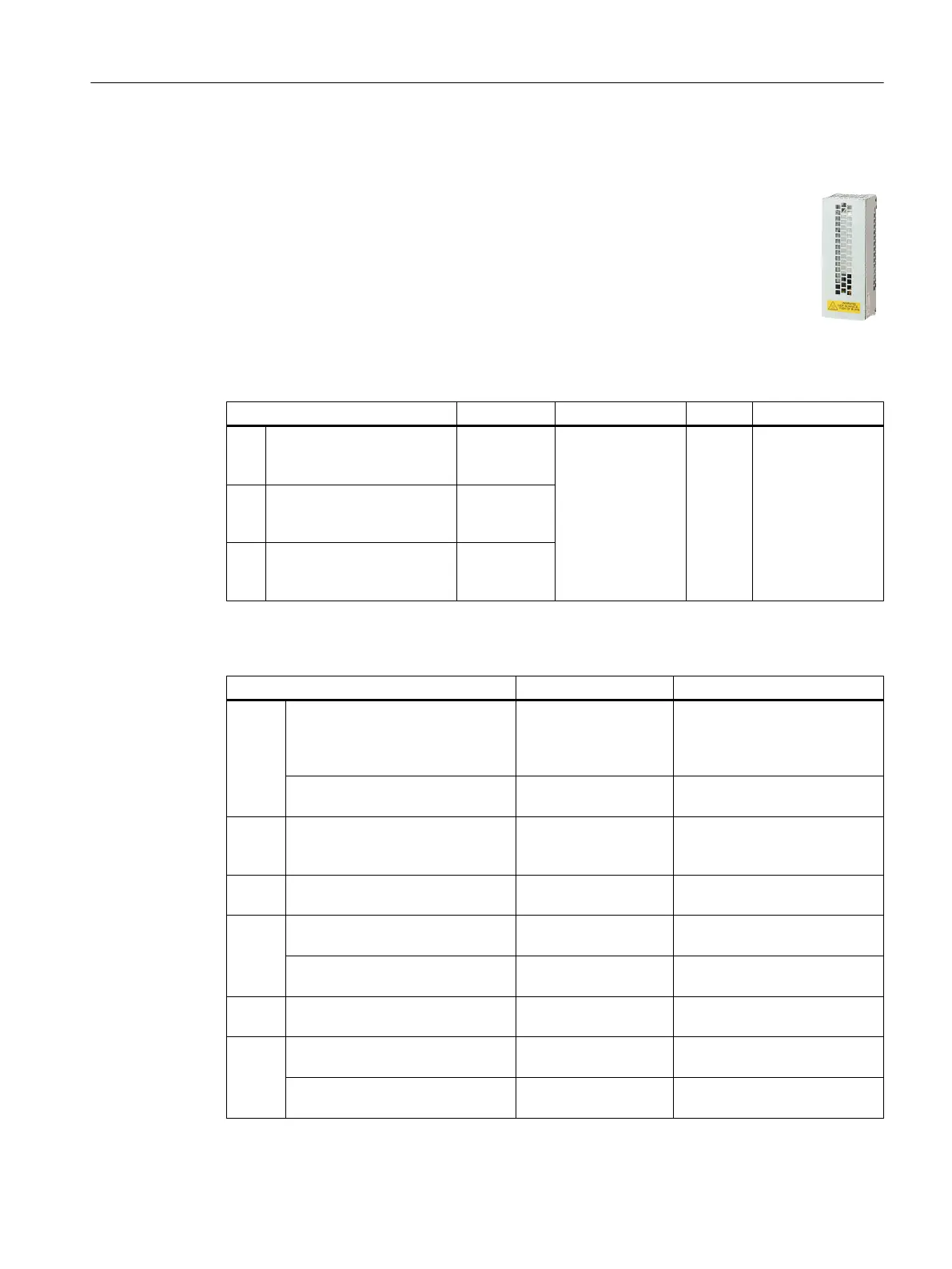

An example for a braking resistor is shown at the side.
Braking Modules and braking resistors for PM330
Power Module Power Braking Module Power Braking resistor
GX 6SL3310-1PE33-0AA0,
6SL3310-1PE33-7AA0,
6SL3310-1PE34-6AA0
160 kW …
250 kW
6SL3760-
1AE32-6AA0
50 kW 6SE7032-
5FS87-2DC0
HX 6SL3310-1PE35-8AA0,
6SL3310-1PE36-6AA0,
6SL3310-1PE37-4AA0
315 kW …
400 kW
JX 6SL3310-1PE38-4AA0,
6SL3310-1PE38-8AA0,
6SL3310-1PE41-0AA0
450 kW …
560 kW
Braking resistors for PM240-2, 380 V … 480 V
Power Module Power Braking resistor
FSA 6SL3210-1PE11-8 . L1,
6SL3210-1PE12-3 . L1,
6SL3210-1PE13-2 . L1,
6SL3210-1PE14-3 . L1
0.55 kW … 1.5 kW 6SL3201-0BE14-3AA0
6SL321 . -1PE16-1 . L1,
6SL321 . -1PE18-0 . L1
2.2 kW … 3.0 kW 6SL3201-0BE21-0AA0
FSB 6SL3210-1PE21-1 . L0,
6SL3210-1PE21-4 . L0,
6SL321 . -1PE21-8 . L0
4 kW … 7.5 kW 6SL3201-0BE21-8AA0
FSC 6SL3210-1PE22-7 . L0,
6SL321 . -1PE23-3 . L0
11 kW … 15 kW 6SL3201-0BE23-8AA0
FSD 6SL3210-1PE23-8 . L0,
6SL3210-1PE24-5 . L0
18.5 kW … 22 kW JJY:023422620001
6SL3210-1PE26-0 . L0,
6SL3210-1PE27-5 . L0
30 kW … 37 kW JJY:023424020001
FSE 6SL3210-1PE28-8 . L0,
6SL3210-1PE31-1 . L0
45 kW … 55 kW JJY:023434020001
FSF 6SL3210-1PE31-5 . L0,
6SL3210-1PE31-8 . L0,
75 kW … 90 kW JJY:023454020001
6SL3210-1PE32-1 . L0,
6SL3210-1PE32-5 . L0
90 kW … 132 kW JJY:023464020001
Description
3.5 Components for the Power Modules
Converter with the CU230P-2 Control Units
Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE 53
