6.17 Setpoint calculation
6.17.1 Overview of setpoint processing
The setpoint can be modified as follows using the setpoint processing:
● Invert setpoint to reverse the motor direction of rotation (reversing).
● Inhibit positive or negative direction of rotation, e.g. for conveyor belts, pumps or fans.
● Skip frequency bands to prevent mechanical resonance effects.
The skip frequency band at speed = 0 results in a minimum speed after switching on the
motor.
● Limit to a maximum speed to protect the motor and mechanical system.
● Ramp-function generator to accelerate and brake the motor with an optimum torque.
,QKLELW
GLUHFWLRQRI
URWDWLRQ
,QYHUW
6NLSIUHTXHQF\
EDQGV
6HWSRLQWIRU
PRWRUFRQWURO
)URP
VHWSRLQW
VRXUFH
6SHHG
OLPLWDWLRQ
5DPS
IXQFWLRQ
JHQHUDWRU
[
\
[
\
W
\\[[

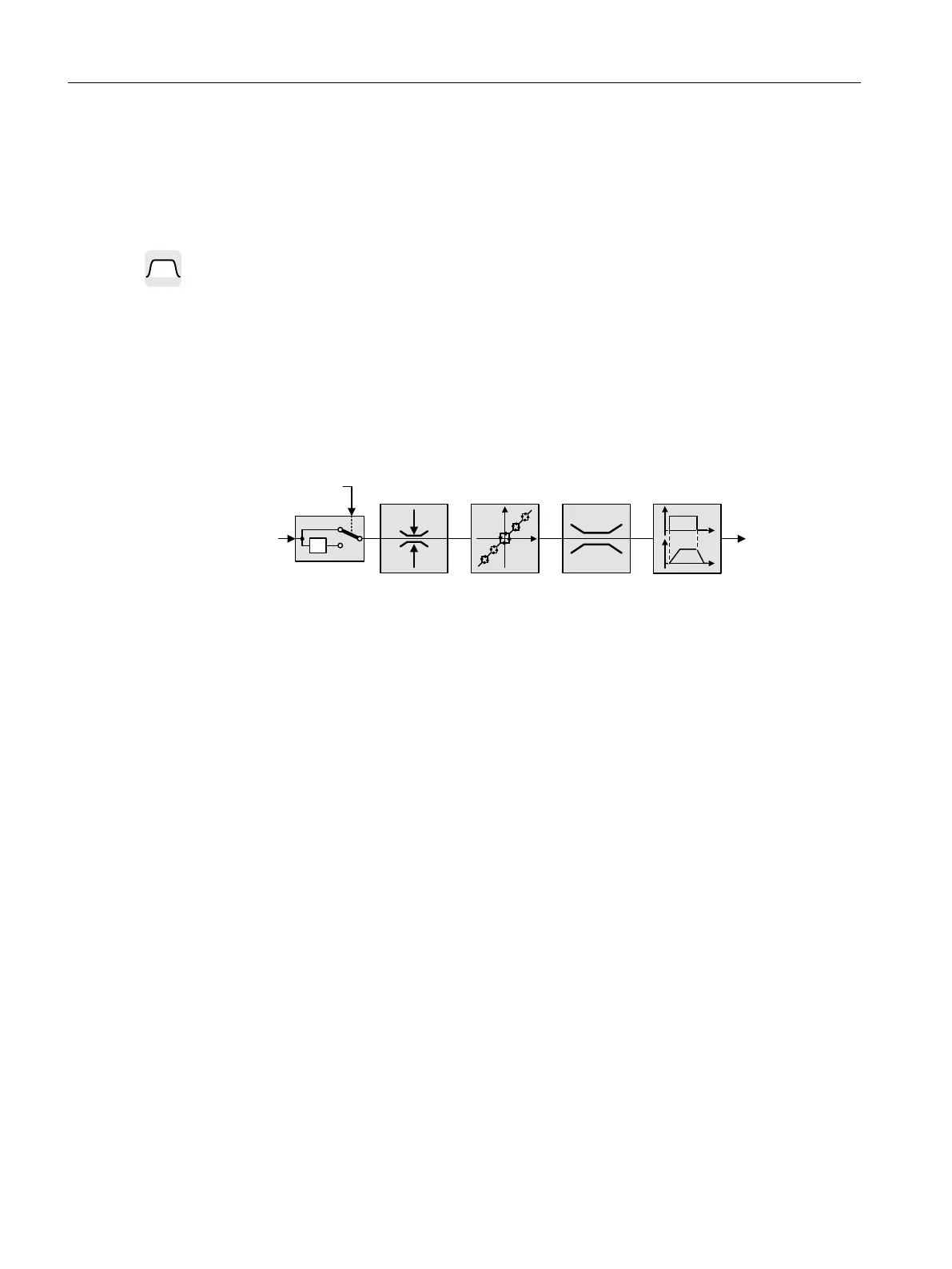

Figure 6-29 Setpoint processing in the converter
Advanced commissioning
6.17 Setpoint calculation
Converter with the CU230P-2 Control Units
266 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
