5.4 Quick commissioning using the BOP-2 operator panel
5.4.1 Inserting the BOP-2
Plugging on an operator panel
Procedure
To plug an Operator Panel on the Control Unit, proceed as follows:

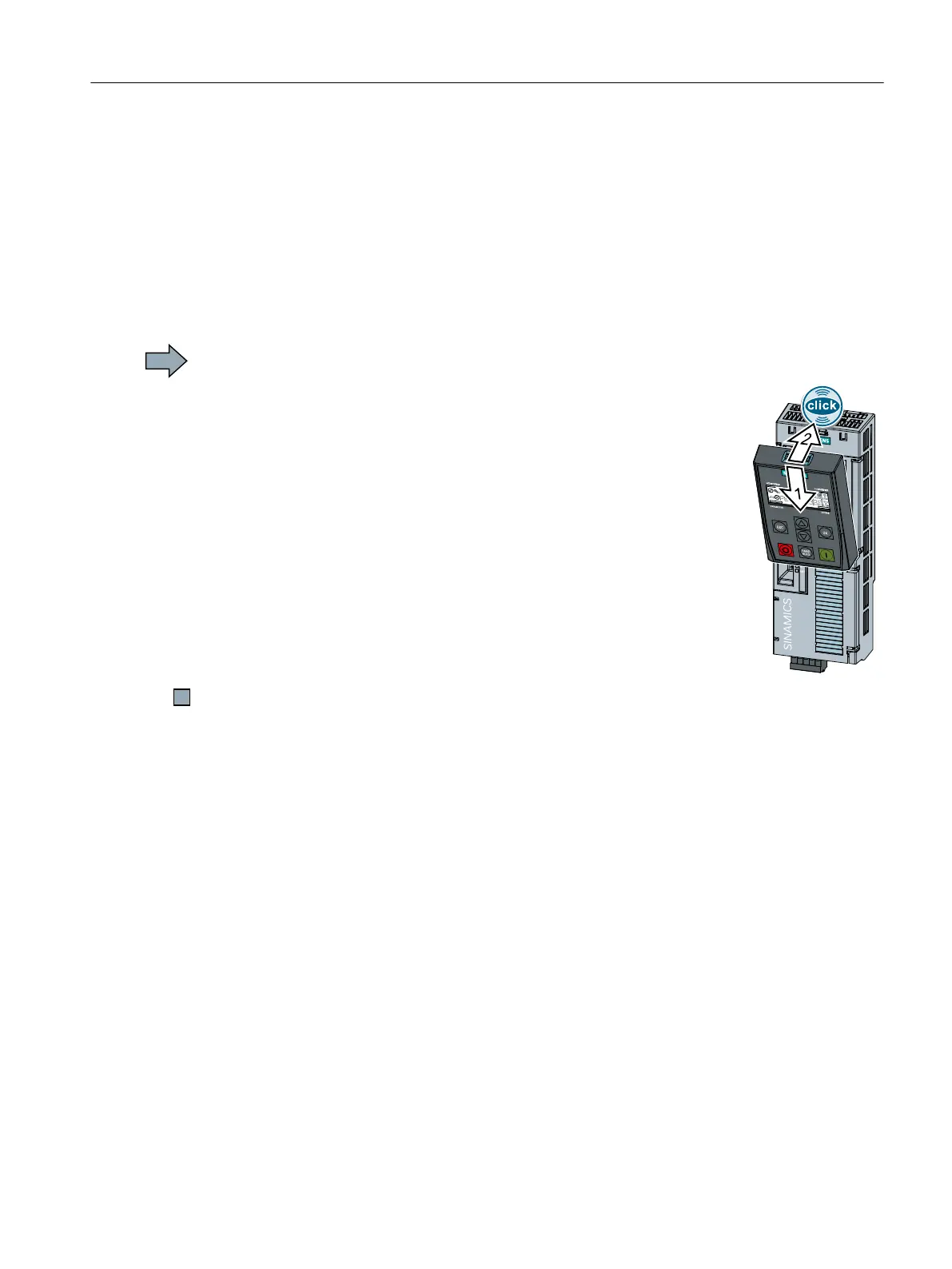

1. Locate the lower edge of the Operator Panel into the matching recess
of the Control Unit.
2. Plug the Operator Panel onto the inverter until the latch audibly
engages.
You have plugged an operator panel onto the Control Unit.
The operator panel is ready for operation when you connect the inverter to the power supply.
Commissioning
5.4 Quick commissioning using the BOP-2 operator panel
Converter with the CU230P-2 Control Units
Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE 153
