Operation with operator panel

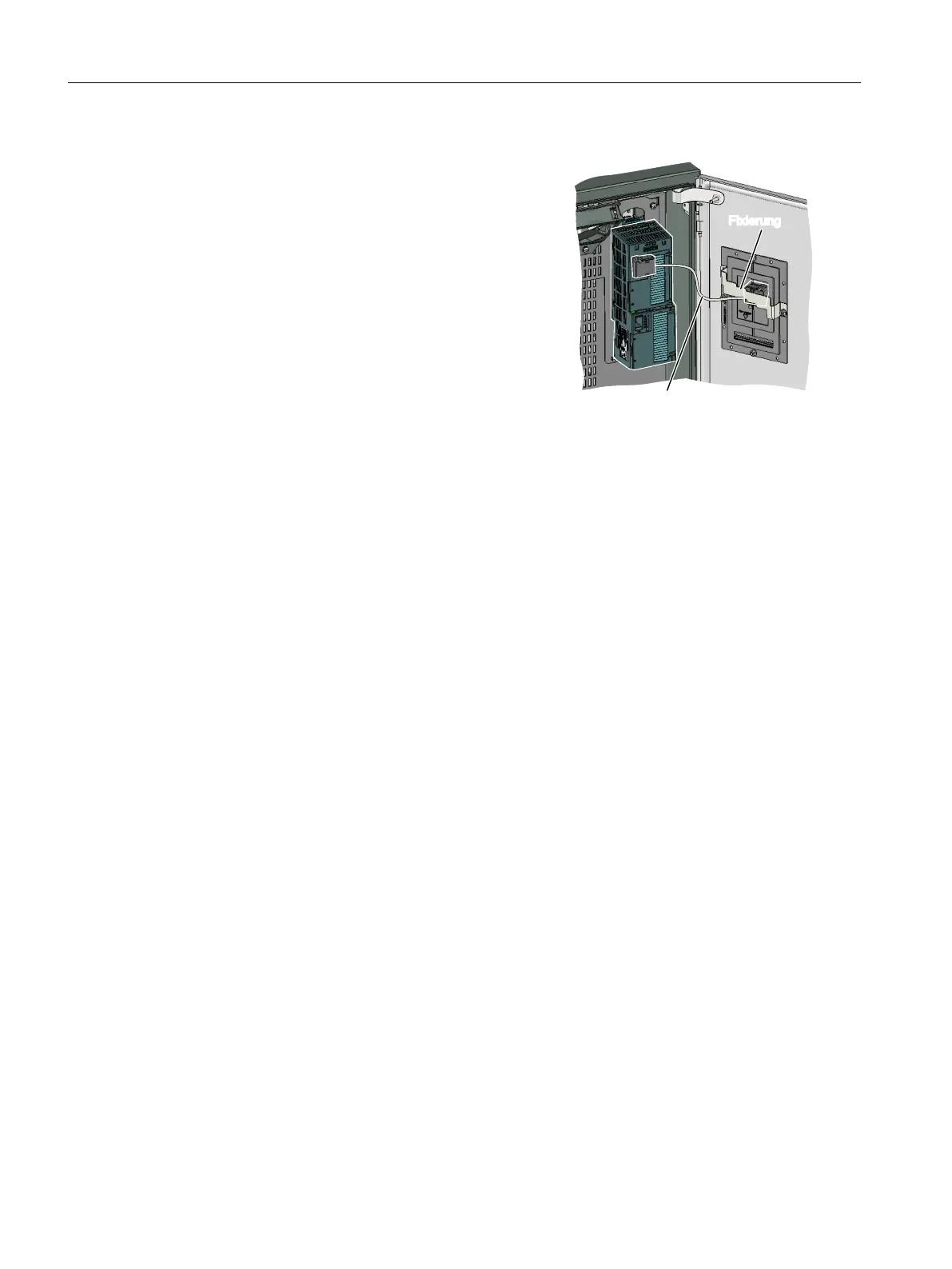

To connect the operator panel to the Control
Unit, you have to plug in the supplied connect‐
ing cable to the Control Unit and the operator
panel.
Fasten the plug connector in the door with the
supplied clamp.
9HUELQGXQJVOHLWXQJ]XP2SHUDWRU3DQHO
)L[LHUXQJ
Installing
4.5 Connecting the interfaces for the inverter control
Converter with the CU230P-2 Control Units
108 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
