Additional setting options are provided in the List Manual in function block diagram 7038 and
in the associated parameter descriptions.
If you want to prevent frequent activation and deactivation, before deactivation you still have
to set a short speed boost. The boost is deactivated with p2394 = 0.
To avoid tank deposits, particularly where liquids are involved, it is possible to exit the
hibernation mode after an adjustable time (p2396) has expired and switch to normal operation.
The settings required for the respective variant can be found in the following tables.
Interaction of the function with the cascade control
It is not possible to activate the hibernation mode as long as a motor is directly operated from
the line supply using the cascade control function.
Cascade control (Page 288)
Activating the hibernation mode with setpoint input via the internal technology controller
With this operating mode you have to set the technology controller as the setpoint source
(p2200) and use the output of the technology controller as the main setpoint (p2251). The
boost can be deactivated.
1RUPDORSHUDWLRQ1RUPDORSHUDWLRQ
6HWSRLQWWHFKQRORJ\FRQWUROOHUDV
PDLQVHWSRLQW
+LEHUQDWLRQ
PRGHRIIVHW
7HFKQRORJ\FRQWUROOHUGHYLDWLRQ
U
5HVWDUWVSHHG
%RRVWVSHHGS
6WDUWVSHHG
+LEHUQDWLRQPRGHDFWLYH
W
[
 SS෪S
W
\
 UHVWDUWVSHHGS෪S
0LQLPXPVSHHGS
5HVWDUWYDOXHS
5HVWDUWVSHHG
6WDUWVSHHG
Speed
SS෪
SS
S


SSW
[
W
\
S
W
W

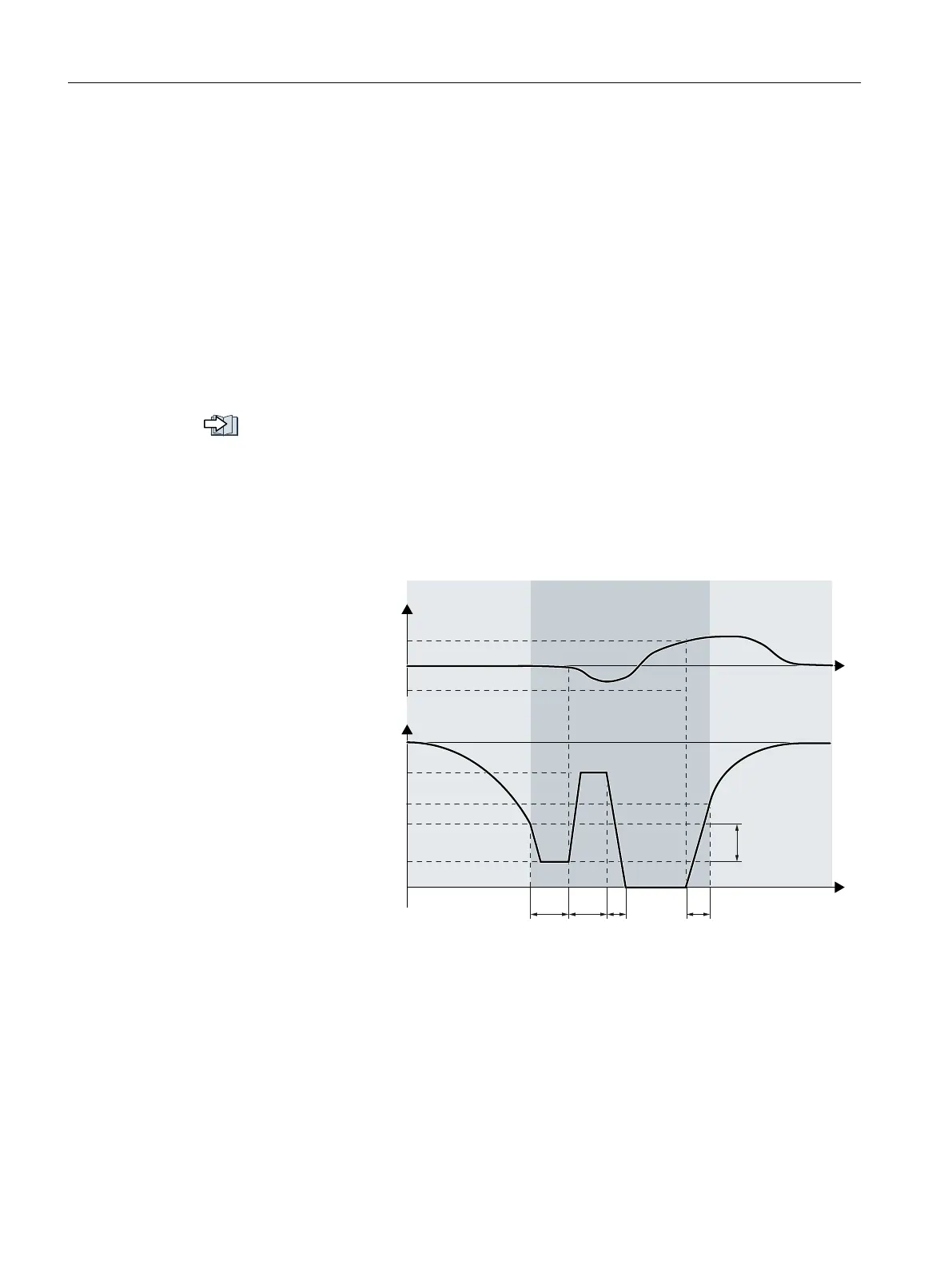

Figure 6-65 Hibernation mode using the technology setpoint as main setpoint with boost
Advanced commissioning
6.37 Hibernation mode
Converter with the CU230P-2 Control Units
358 Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE
