Frame sizes FSD … FSF

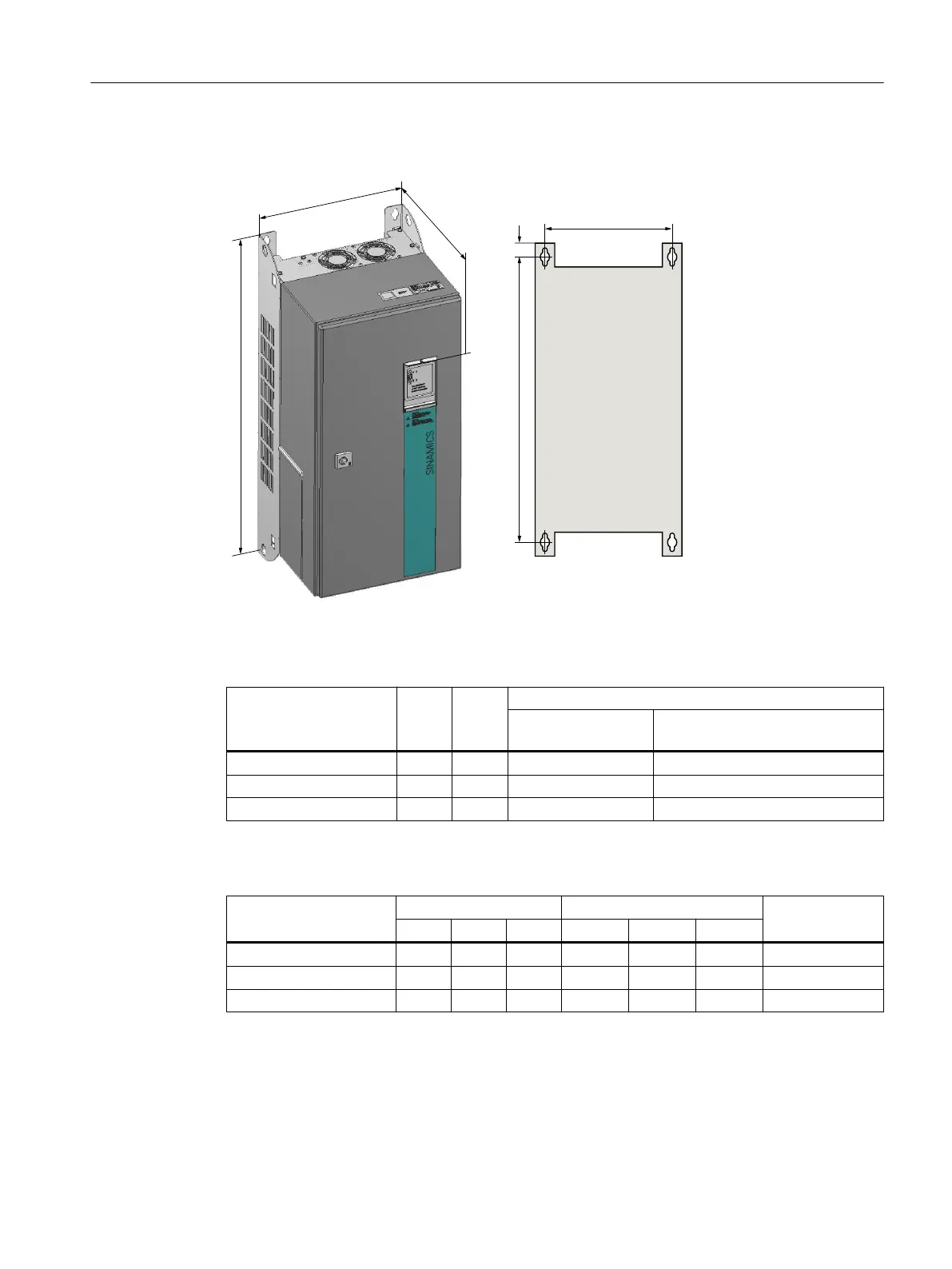

Figure 4-6 Dimension drawing, PM230 Power Module IP55 FSD … FSF
Table 4-3 Dimensions
Frame size Width
[mm]
Height
[mm]
Depth [mm]
Without operator
panel
With BOP‑2, IOP‑2 operator panel
or blanking cover
FSD 320 640 329 336
FSE 320 751 329 336
FSF 410 915 416 423
Table 4-4 Drilling dimensions, cooling clearances and fixing
Frame size Drilling dimensions [mm] Cooling air clearances [mm] Screws/torque
[Nm]
b h c Top Bottom Lateral
FSD 285 600 17.5 300 300 50 4 x M8 / 13
FSE 285 710 17.5 300 300 50 4 x M8 / 13
FSF 370 870 17.5 350 350 50 4 x M8 / 13
Installing
4.3 Installing Power Modules
Converter with the CU230P-2 Control Units
Operating Instructions, 09/2017, FW V4.7 SP9, A5E34257946B AE 67
