Wiring
4-31
ET 200X Distributed I/O Device
EWA 4NEB 780601602-06
Figure 4-17 shows how the basic modules BM 143-DESINA FO,
BM 143-DESINA RS485, and BM 141 DI 8DC 24V ECOFAST must be
connected to protective ground.
Wire to
protective ground
Grounding screw

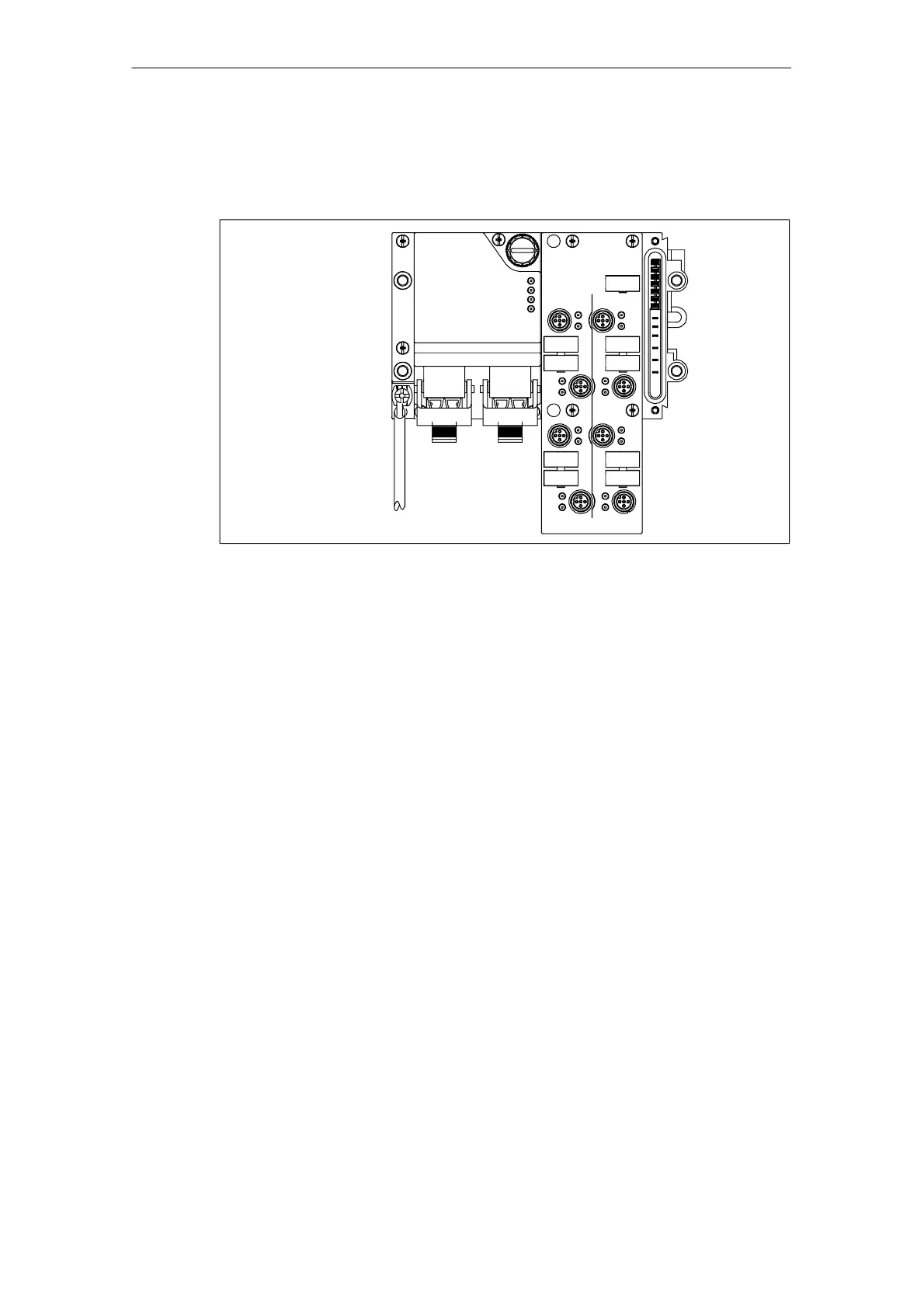

Figure 4-17 Connecting the basic modules BM 143-DESINA FO, BM 143-DESINA RS485,
and BM 141 DI 8
DC 24V ECOFAST to protective ground
EMC
You will find additional notes on EMC installation and wiring in the manual for the
DP master you are using or for the host system.
