Product Overview
1-9
ET 200X Distributed I/O Device
EWA 4NEB 780601602-06
DP master for ET 200X-DESINA/ET 200X-ECOFAST
The ET-DESINA and ET 200X-ECOFAST can communicate with all DP masters
that behave in compliance with EN 50170, Volume 2, PROFIBUS. However, some
DP masters can process only limited frame lengths.
Check whether the DP master you are using can receive frames from the
ET 200X-DESINA and ET 200X-ECOFAST in their entirety. To ascertain this, you
will find a list of maximum frame lengths in the configuration and parameter
assignment frames for ET 200X at http://www.ad.siemens.de/simatic-cs.
Configuration of ET 200X-DESINA/ECOFAST (examples)
DESINA
connector
Basic
module
Expansion modules
SF
RUN
DC 24 V-NS
DC 24 V-S
X01 X02
X1
X1
X1
X1
X2
X2
X2
X2
X5
X5
X5
X5
X6
X6
X6
X6
X3
X3
X3
X3
X4 X4
X4
X4
X7
X7
X7
X7
X8
X8
X8
X8

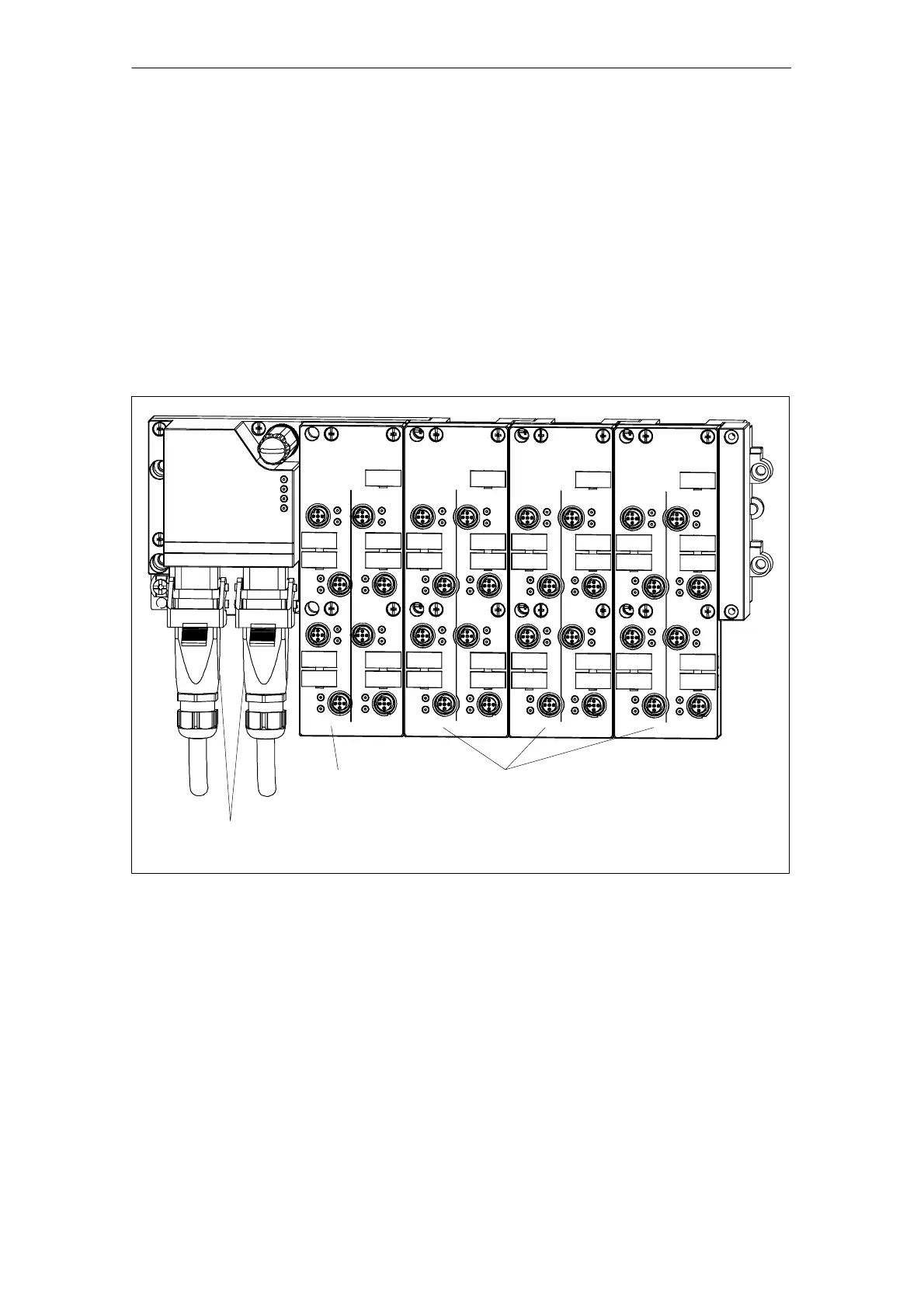

Figure 1-3 Configuration of the ET 200X-DESINA/ET 200X-ECOFAST distributed I/O device (example)
