7.18 EM 148-P DO 16 P/CPV10 expansion module
(pneumatic interface module for CPV10)
(6ES7 148-1EH00-0XA0)
Installation next to motor starter (EM 300...)
You can install the expansion module immediately next to a motor starter, product
version 02.
Features
The EM 148-P DO 16 x P/CPV10 expansion module, order number
6ES7 148-1EH00-0XA0, has the following features:
 16 digital outputs
 Rated load voltage 24 VDC
 Suitable for connecting a FESTO CPV10 valve island with up to 16 valves
Basic circuit diagram
The basic circuit diagram of the expansion module is shown below.
Backplane bus
interface
1M
2L+
2M
Load power supply via
backplane bus
DO1
1M
DO2
DO16

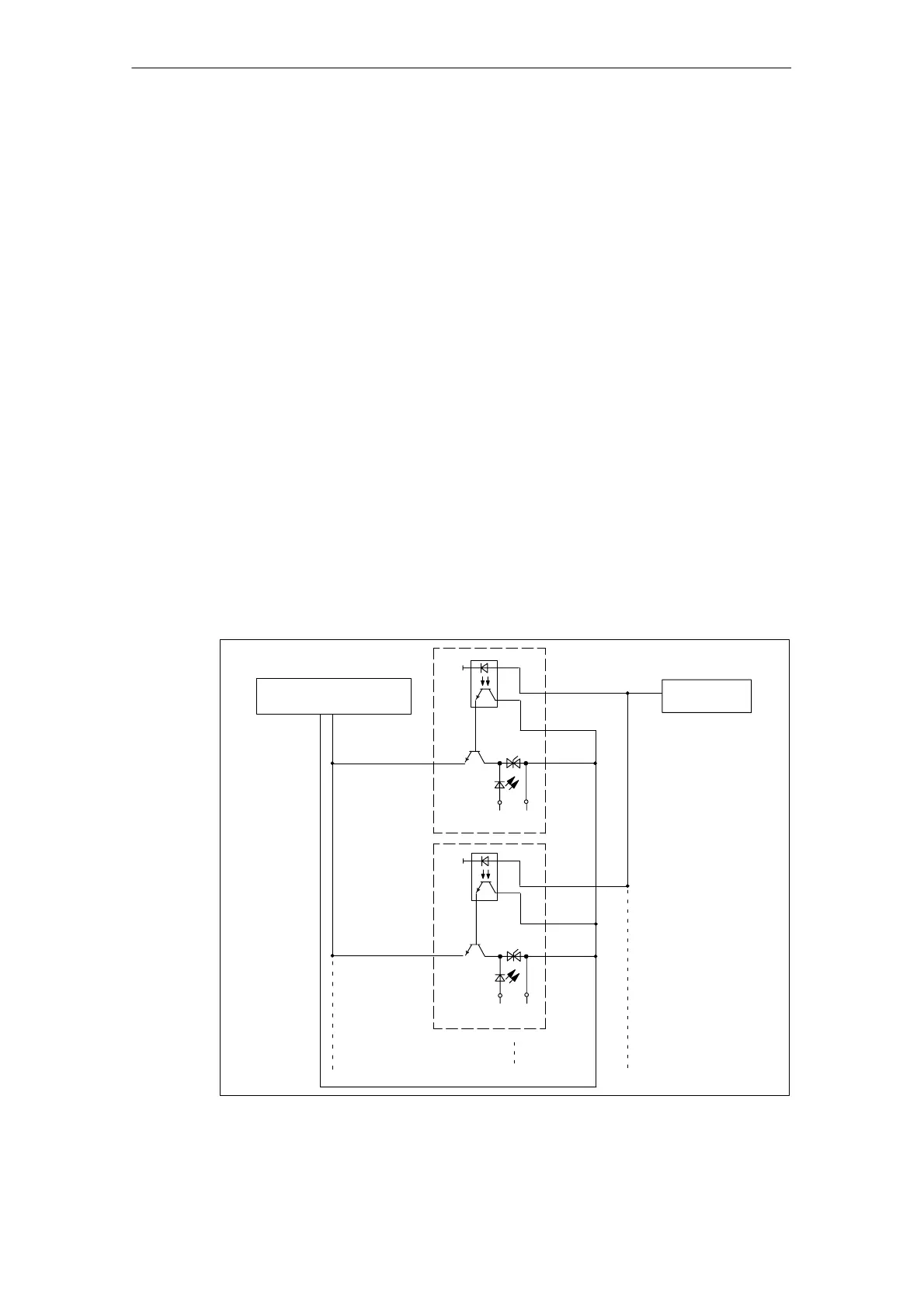

Figure 7-19 Basic circuit diagram of the EM 148-P DO 16 x P/CPV10 expansion module
