Siemens SIMATIC ET 200X - Feeding the Supply Voltage and PROFIBUS-DP and Looping Them through; Feeding the Supply Voltage Separately to each ET 200 X and Looping; PROFIBUS-DP through Via a Separate Cable; Via Separate Cables

Configuration Options
2-5
ET 200X Distributed I/O Device
EWA 4NEB 780601602-06
 Feeding/looping through via separate cables
The supply voltage for the electronic components/sensors and PROFIBUS-DP are
fed to the first ET 200X and looped through to the downstream ET 200Xs via two
separate cables.
BM
Supply voltage
PROFIBUS-DP
EM EMEMEM
...
ET 200X (DP slave 1)
ET 200X (DP slave 2)
ET 200X (DP slave 3)
BM
BM
EM EM
...
3-core cable
2-core, shielded cable

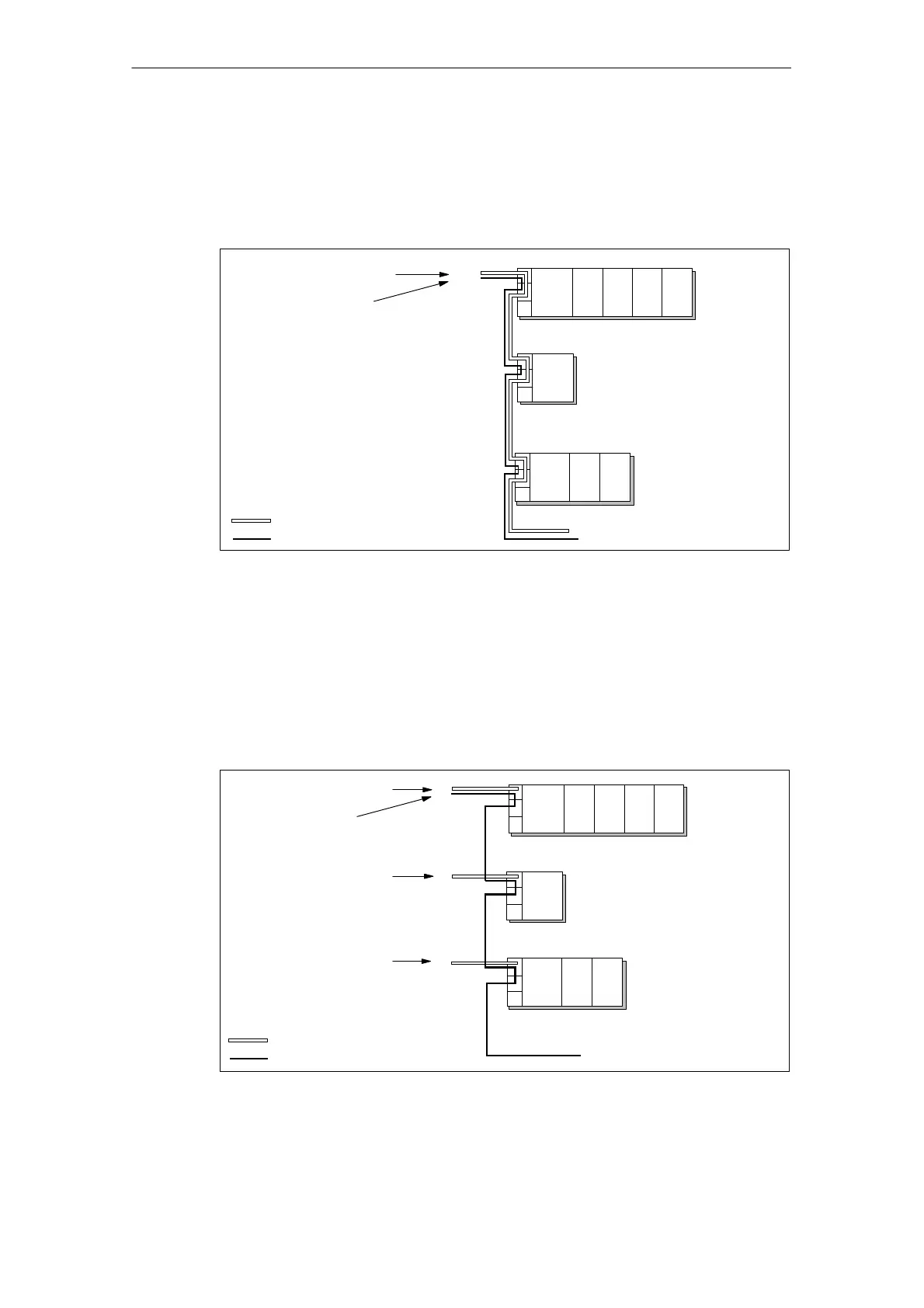

Figure 2-3 Feeding the supply voltage and PROFIBUS-DP and looping them through via
separate cables
 Feeding/looping through of PROFIBUS-DP via 1 cable
The supply voltage for the electronic components/sensors is fed to each ET 200X
separately. PROFIBUS-DP is fed and looped through to the downstream ET 200Xs
via a common cable.
BM
EM EM
BM
Supply voltage
PROFIBUS-DP
...
ET 200X (DP slave 1)
ET 200X (DP slave 2)
ET 200X (DP slave 3)
BM
EM EMEMEM
Supply voltage
Supply voltage
3-core cable
2-core, shielded cable
Figure 2-4 Feeding the supply voltage separately to each ET 200X and looping
PROFIBUS-DP through via a separate cable
