Wiring
4-36
ET 200X Distributed I/O Device
EWA 4NEB 780601602-06
Wired ET 200X

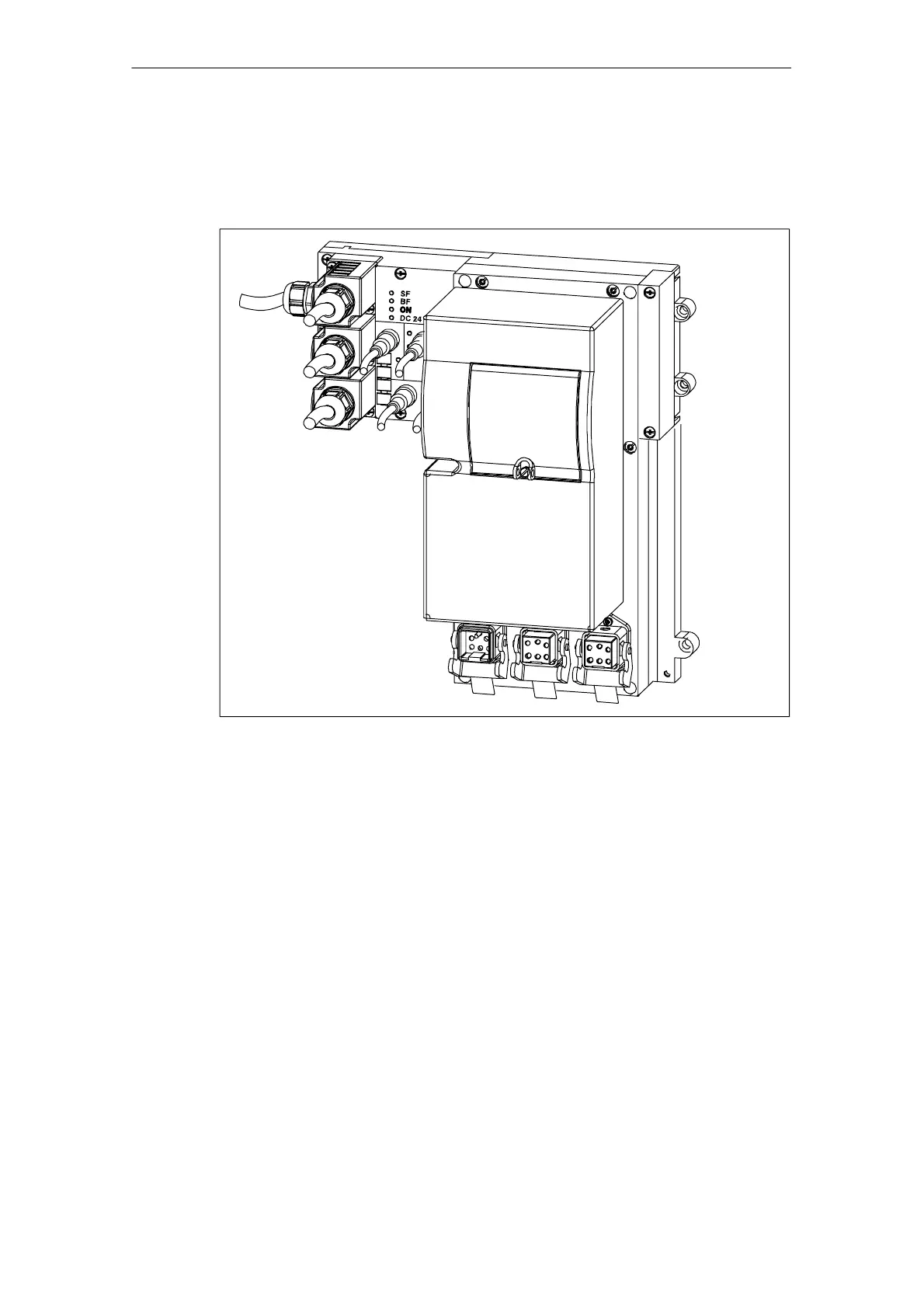

The diagram below shows a wired ET 200X. (The power connectors for the load
supply voltage and the load on the motor starter are not featured here.)
Figure 4-20 Wired ET 200X
4.4.8 Wiring the SITOP power power supply and adapting It to
deployment conditions
Only very little wiring work is required to integrate the SITOP power 24V/10A
power supply into the ET 200X. The output voltage can either be used as supply
voltage for electronics/sensors and/or load voltage. The power supply response in
the event of a fault can be parameterized.
